Shower Set Installation Instructions For Dark Oil Rubbed Bronze Shower With Thermostatic Mixer

Bravat Wall Mount Dark Oil Rubbed Bronze Shower Set With Thermostatic Mixer Valve 3-Way Concealed

The Bravat Dark Oil Rubbed Bronze Shower Set With Mixer Valve 3-Way Concealed Wall Mount is one of the most trendiest finishes across decor styles in the bathroom. It has a contemporary style with a beautiful Dark Oil Rubbed Bronze finish. Turn on the fun in your shower and experience the true feeling of rain, as well as SPA body massage spray, relieving fatigue and stress just by turning on the water in a high-pressure bathroom head shower with 360° 6 adjustable body spray jets and a hand shower.
Bravat Dark Oil Rubbed Bronze Shower Valve Mixer 3-Way Concealed Wall Mounted Features:
  • Brand Name: BathSelect
  • Model Number: BS1051
  • Type: Shower Set & Shower Mixer
  • Style: Contemporary
  • Type: Fixed Support Type
  • Surface Finish: Dark Oil Rubbed Bronze
  • Installation Type: Wall Mount
  • Number of Jets: Four
  • Control Type: Single Holder Dual Control
  • Size: 7.91"-11.85" (201-300mm)
  • Surface Treatment: Polished
  • Valve Core Material: Ceramic
  • Bath Shower Type: In-Wall Shower Mixer
  • Valve Type: Ceramic Valve
  • Faucet Handle Material: Zinc Alloy
  • Mixer Body Material: Brass
  • Valve Included: Yes
  • Embedment Depth: 2.16" (55mm)
  • Valve Panel Dimension: 6.29"x6.29" (160x160mm)
  • Connector: G1/2"B (Standard)
  • Bravat Wall Mount Dark Oil Rubbed Bronze Shower Set With Thermostatic Valve Mixer 3-Way Concealed
    BathSelect® Manufacturer Warranty Information
    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

    shower shower

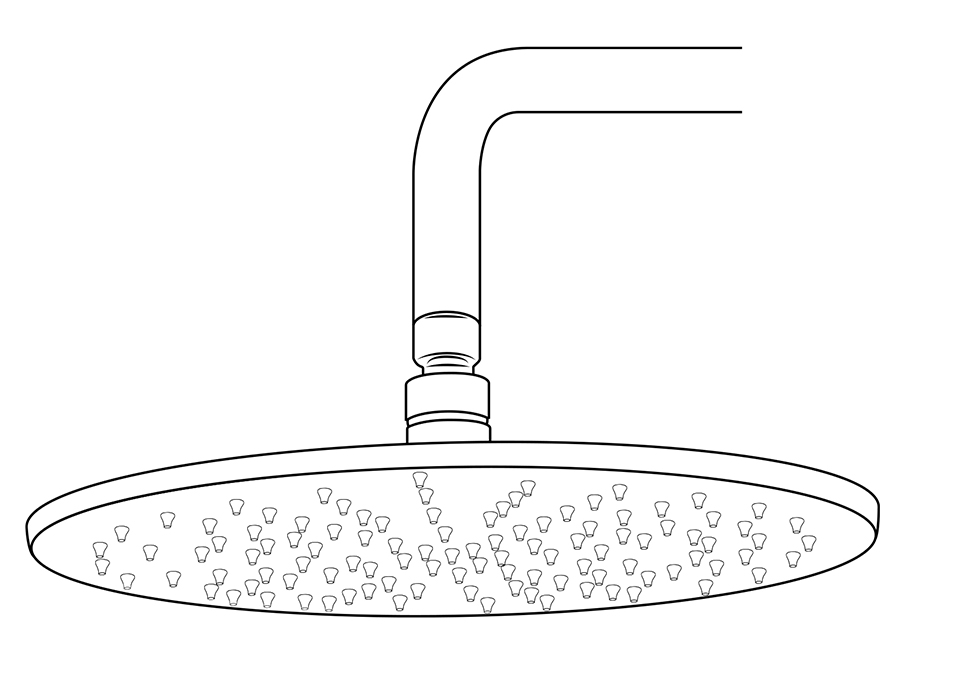

    Shower Head Installation




    shower Shower Head Parts Included:
    • Wall Mounting Arm
    • Locking nut
    • Wall trim
    • Shower arm
    • Showerhead
    • Fixing screws and wall plugs (not shown)

    shower

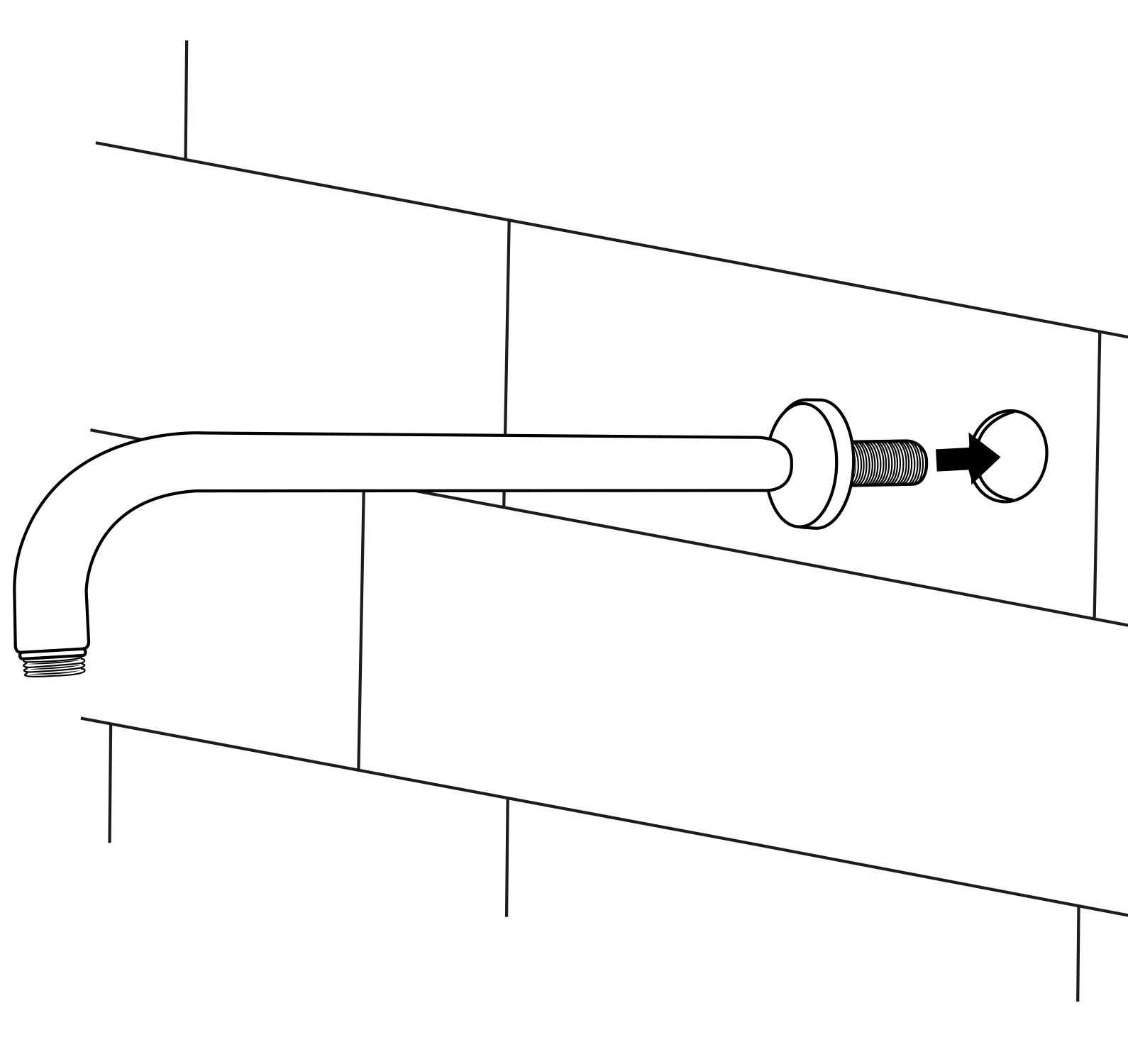

    Step 1

    Step 2

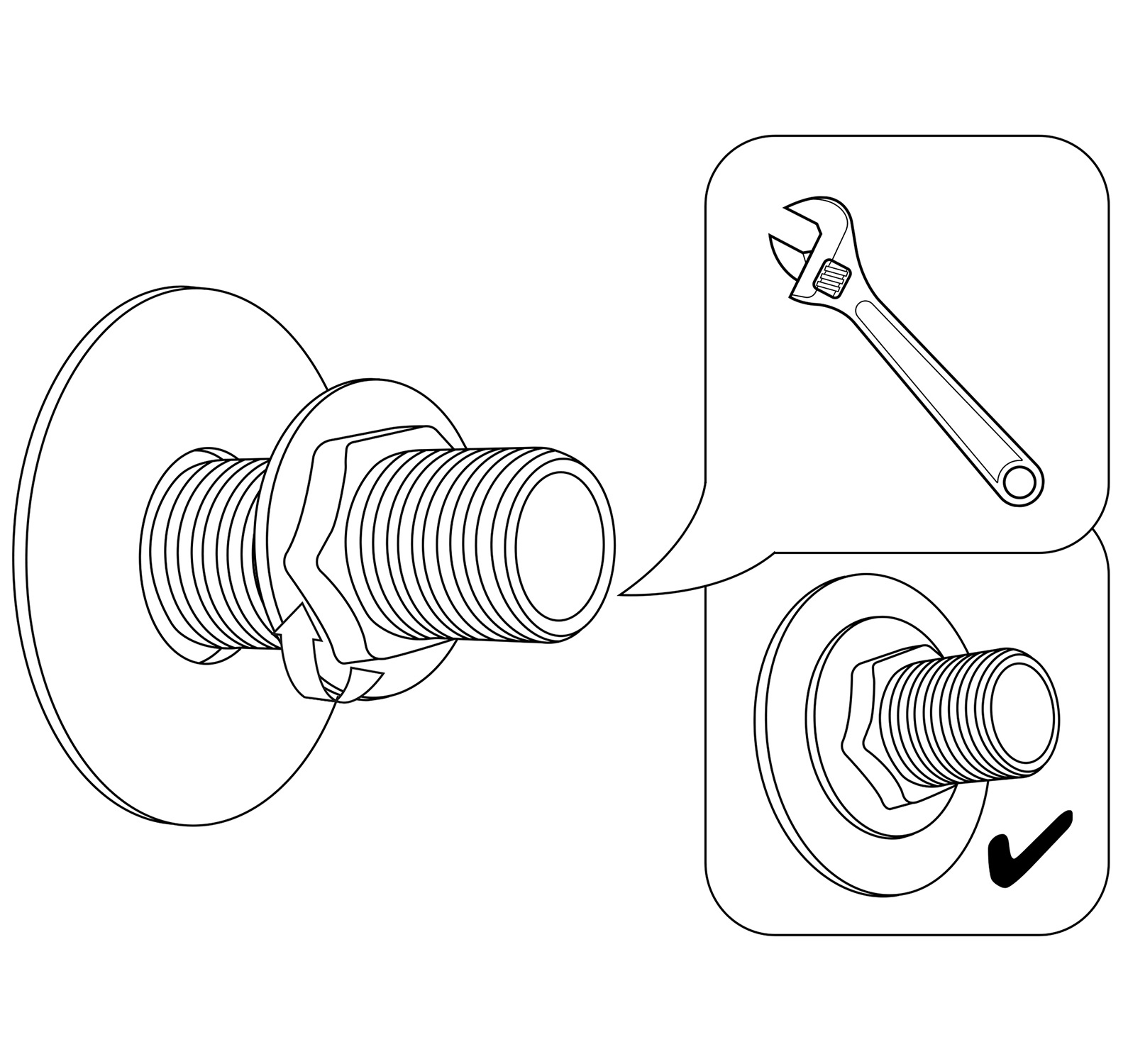

    Step 3

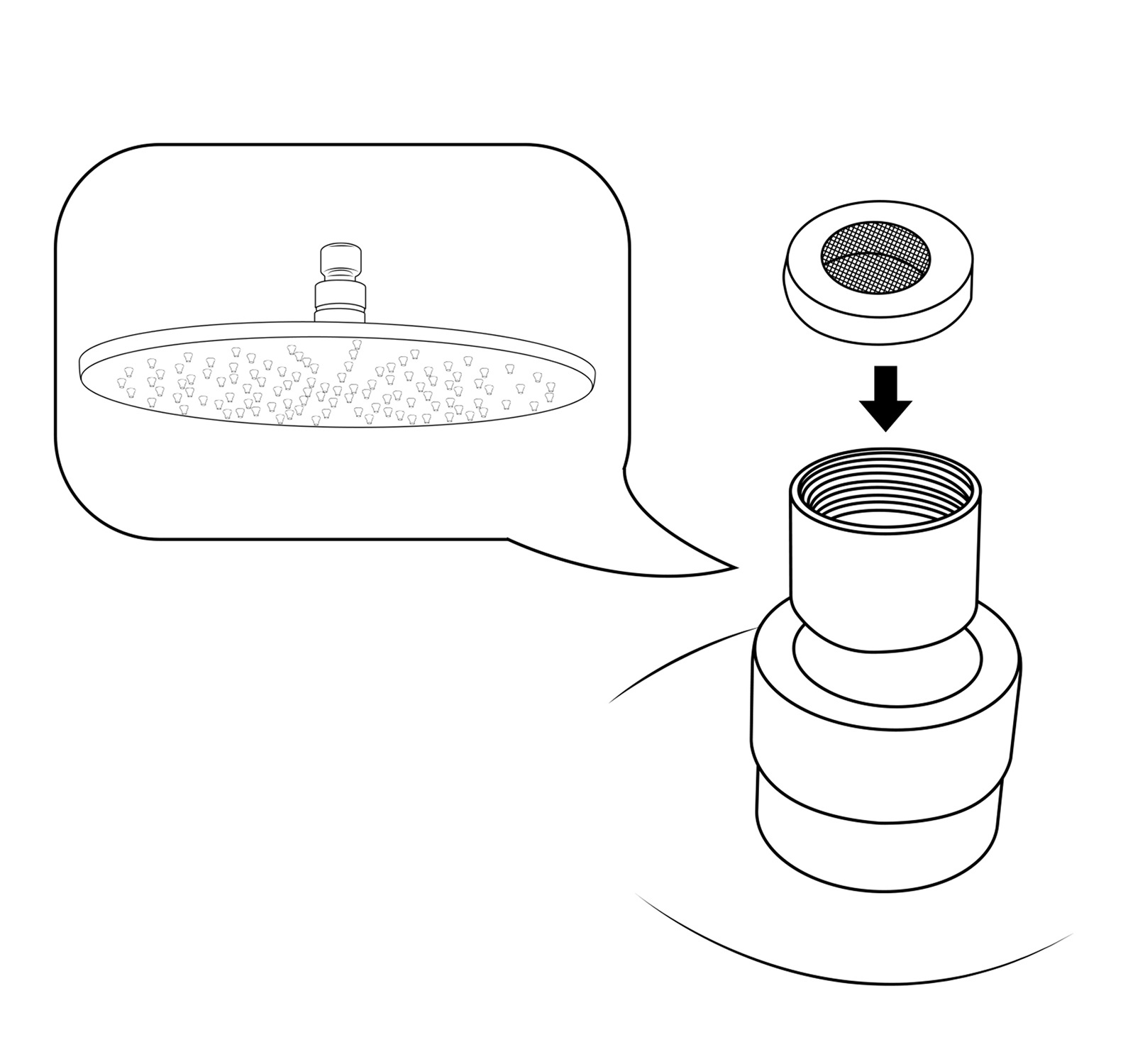

    Step 4

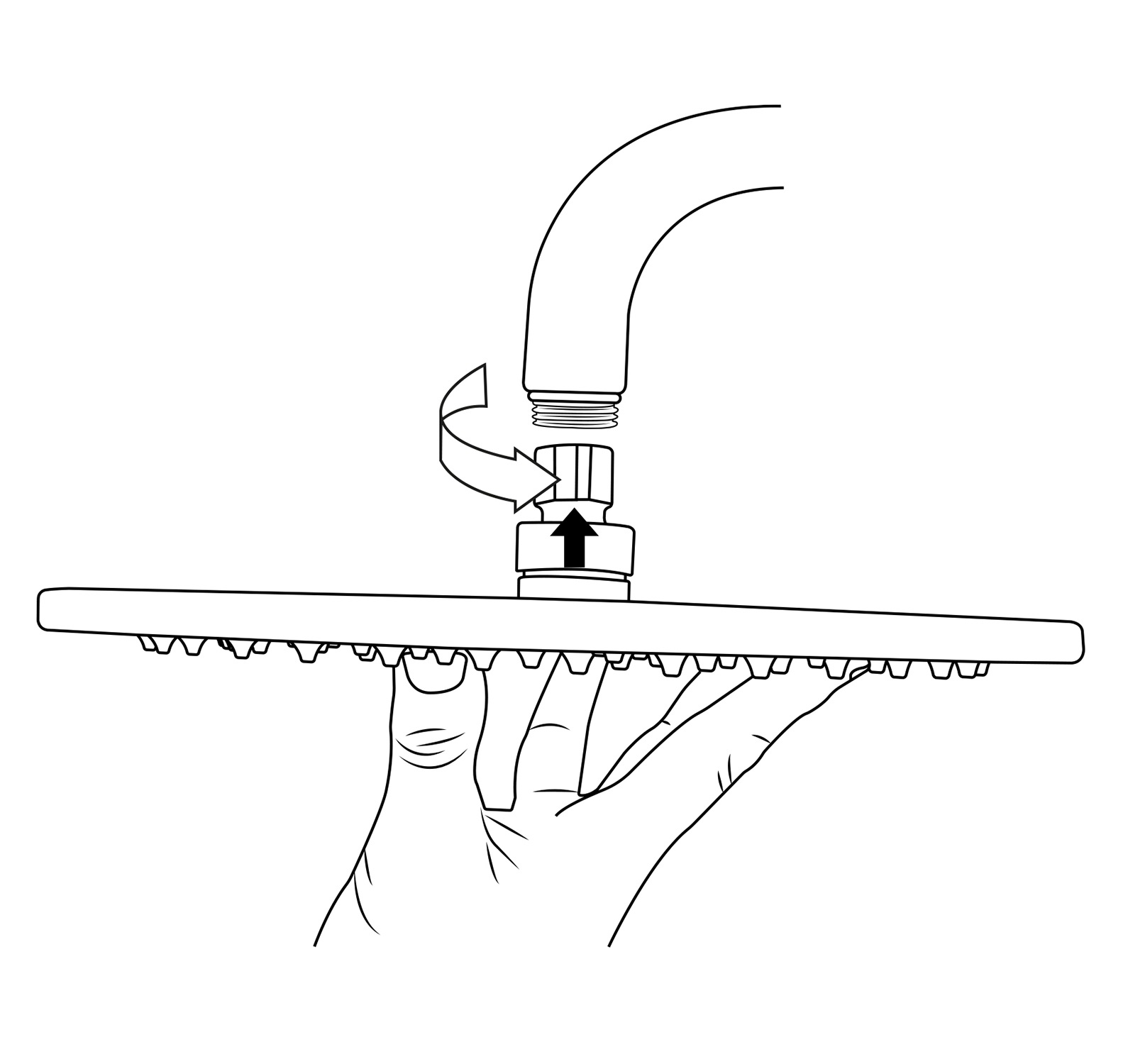

    Step 5

    Step 6

    Shower Body Jets Installation Instructions



    Step 1


    Set the decorative cover on the body jet.
    shower Step 2


    Roll the raw material belt in the thread screws.
    shower Step 3



    Use a wrench to tighten 6 body jets on the water outlet holes in a clockwise direction.

    Thermostatic Mixer Valve

    Step 1

    mixer Step 2


    mixer Step 3

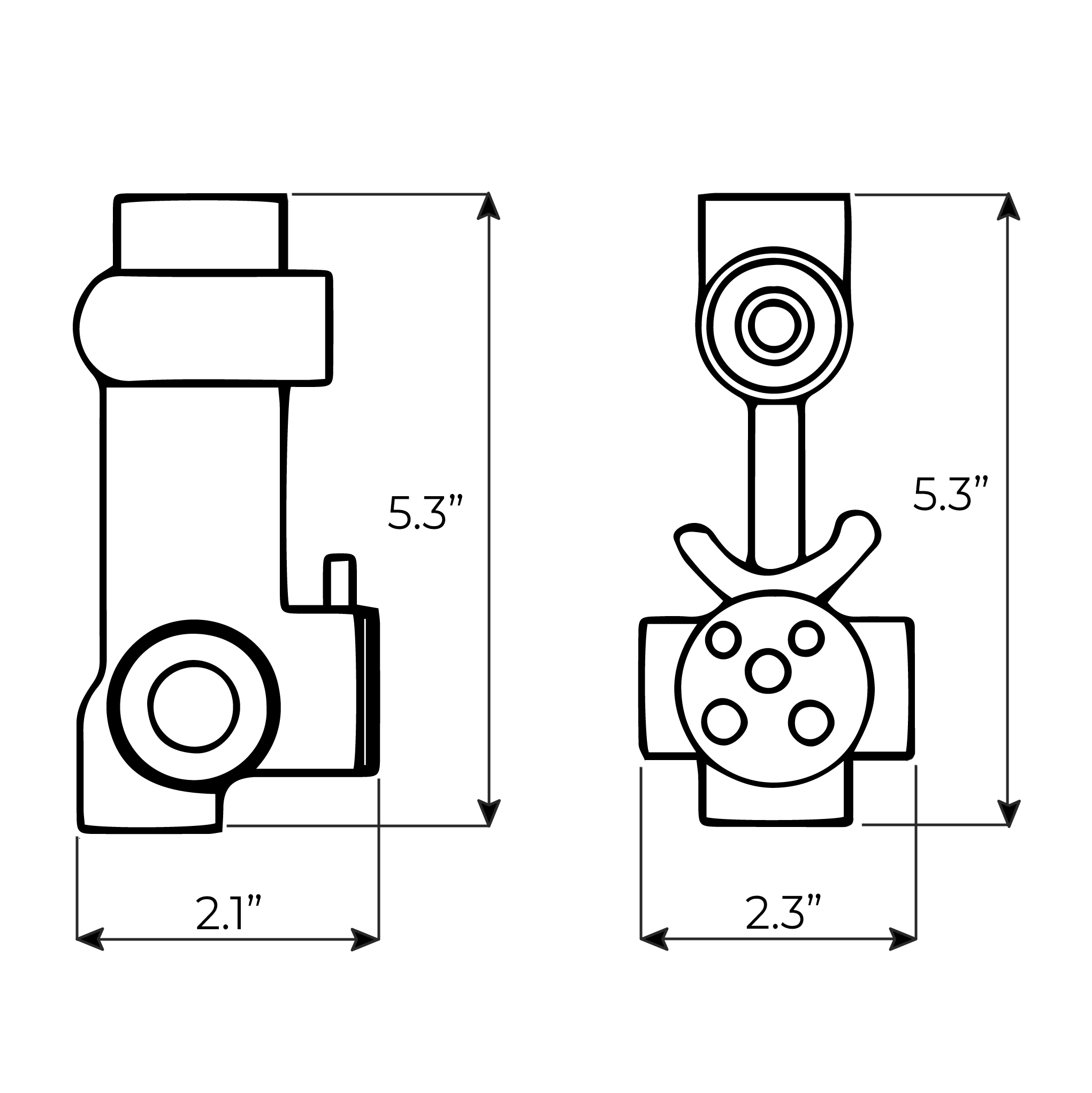

    1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)
    2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes(not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

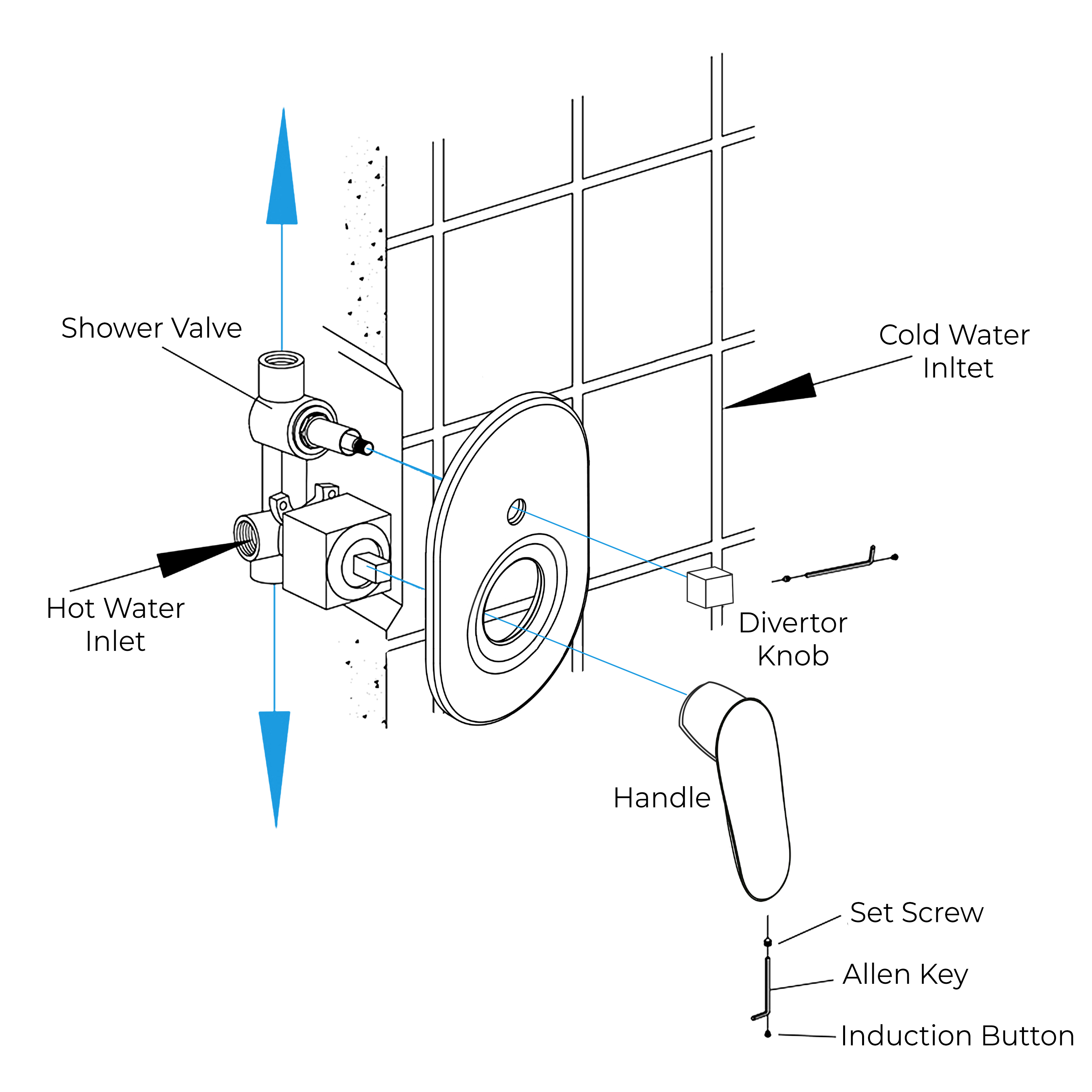

    3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

    Hand-Held Shower Installation Instructions



    Step 1: Step 2: Step 3 & 4:
    Hand
    Held
    Shower
    Hand
    Held
    Shower
    Handheld Shower Handheld Shower Handheld Shower
    Step 5: Step 6 & 7: Step 8:

    1. Gather All Parts

    2. Hole Locations For Wall Mount
    Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

    3. Anchor Installation
    Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.

    4. Wall Mount Installation
    Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)

    5. Drop Elbow & Hose Installation
    Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall. The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall. Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).

    6. Unit Startup
    Turn on hot and cold water supplies, and check all connections for leaks.

    7. Final Flushing
    For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.

    8. Shower Arm Installation
    Place Rubber Seal (A) inside Tapered Hose Fitting (B). Conned Hand Shower (C) to Hose (D) by turning Tapered Hose Fitting (B ) clockwise. Warning: Make sure Hand Shower (C) is securely tightened to Hose (D).
