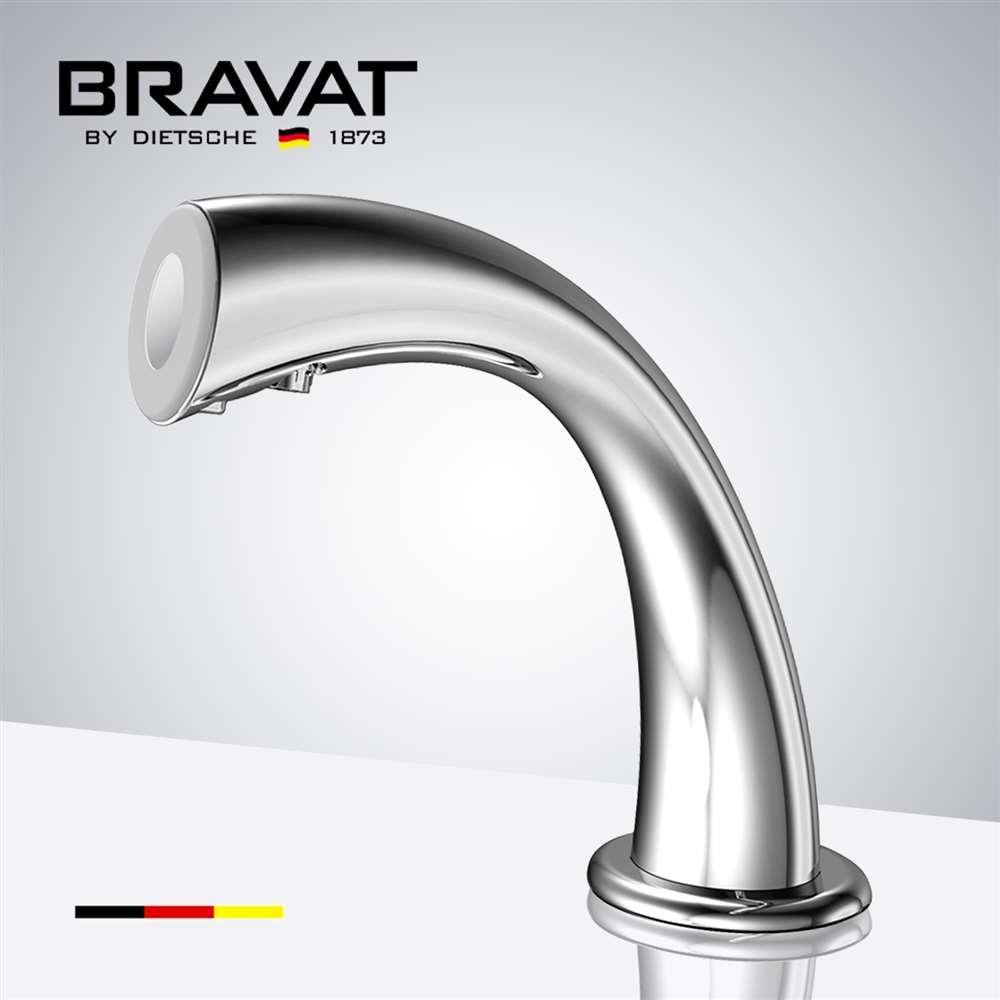

Hospitality Bravat Commercial Automatic Sensor Faucet in Chrome
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mount on any sink surface.
- ADA Complaint
- Battery life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted/
- Place of Origin: Germany
- Sensor faucet complete motion detection operation.
- Commercial and residential use.
- Sensitive Sensor with Infrared AI Smart-Chip
- The factory is set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications
- Usage: Commercial / Residential
- Finish : Chrome
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
BathSelect® Manufacturer Warranty Information
 Installation Instructions for Bravat Commercial Automatic Sensor Faucets
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power and Voltage: DC.6V AC.220V - 50/60Hz
- Power Consumption: 0.5MW <2W
- Detection Zone: Factory sets 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
- Degree of protection by enclosure: 1P56
The Bravat Commercial Sensor Activated Touchless Faucet
|
Sleek New Sensor Faucets Ideal for High End Commercial Applications. ADA Compliant - Touchless Bathroom Sink Faucets. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|
Trio Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
Hands Free - no touch, avoid bacteria mutual infections!
A must in, restrooms, hotels, restaurants, public places, government facilities...!
-
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped
- complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard
- 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All
- the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome
- Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy:
- 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
Water Temperature Control;
check
Options for temperature
- control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared,
- Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2†to 6â€
Response Time:
- 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Bravat Automatic Hands Free Sensor Faucet Detailed Product Description Features and Benefits
- Infrared sensor operated, touch-free operation
- Water Conserving
- Waterproof sensor
- Battery low LED light indicator
- Advanced circuit design saves electricity and water
- Advanced energy saving design for long lasting battery life.
- Three-year battery life based on 3,000 hand washes per month
- The Sensor is not affected by reflections or abnormal lighting
- Self-adapting sensors range
- Battery: 4*'AAA' size cells
- Long life durable body
- Operational water pressure range: 0.05 - 0.6MPa
- ADA Complaint
- Power Supply Options
- Hands-Free Sanitary Operation
- Water supply pipe size: DN15
- Vandal-Resistant Aerator
- Ambient temperature range: 0.1 - 45 degrees
- Automatic 30-Second Time Out
- Highly-Polished, Chrome Plated Cast Brass Bodies
- Low Battery Indicator Light
- In-line Filter
- Factory Set Sensor Range
Hospitality Bravat Commercial Automatic Sensor Faucet FAQ
Hospitality Traffic Modeling, Touchless Hygiene Engineering & Sensor Reliability
Designed for hospitality environments, this faucet focuses on durability, hygiene compliance, and high-volume activation performance.
How does hospitality usage affect the design requirements of sensor faucets?
Hospitality applications require higher activation-cycle durability, faster response times, and greater resistance to misuse. What engineering factors contribute to touchless hygiene effectiveness?
Hands-free activation minimizes surface contact, reducing cross-contamination opportunities in shared facilities. How is sensor reliability maintained in environments with continuous guest turnover?
Robust infrared modules and stable electronic control systems ensure consistent operation despite frequent use. Why is pressure-independent flow control beneficial in hotels?
It delivers a predictable user experience regardless of fluctuations in building water demand.
|
|
|
|
|
|
|
