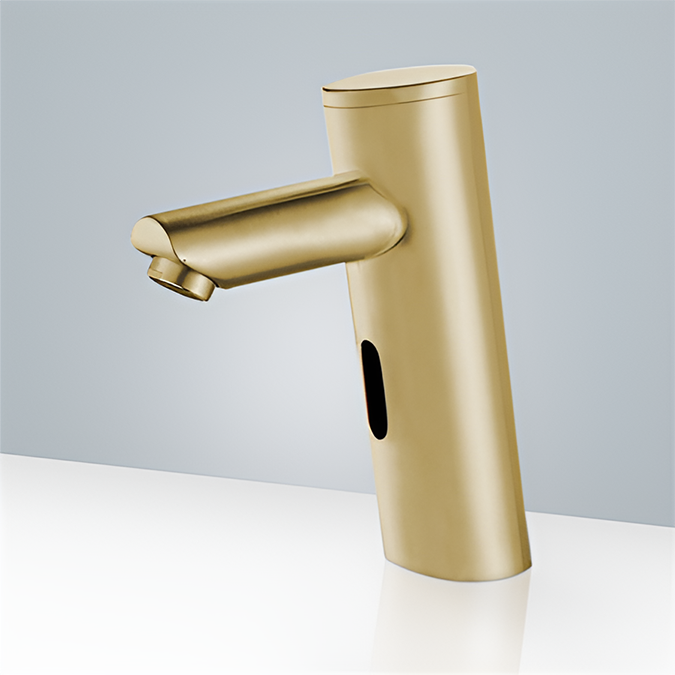

Hotel BathSelect Brushed Gold Tone Platinum Automatic Thermostatic Commercial Sensor Tap Solid Brass Construction
- Sensor Faucet Applications: Residential & Commercial
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- The factory is set to 30-second Auto Shutoff (can be adjusted)
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Brushed Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- ADA Compliant
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|
Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of the lavatory!
The Sensor Faucet finish is Gold Tone, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
Sensor faucet
meets ADA regulations
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mount on any sink surface.
- ADA Compliant
- Battery life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4" to 5"from the sensor, it can be adjusted.
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power: DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ? / 33.8 -113 °F
- Degree of protection by enclosure: 1P56
- Overall Height: 7" (measured from counter top to the highest part of the faucet)
- Spout Height: 3-1/2" (measured from counter top to the spout outlet)
- Spout Reach: 4" (measured from the center of the faucet base to the center of
- spout outlet)
- Mounting Type: Single hole
- Number of Holes Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation with temperature control.
Brushed Gold Tone Finish Automatic Commercial Faucet
The
Platinum Sensor Faucet enhance any commercial restroom an electronically controlled faucet that eliminate the need to touch or turn handles. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. This Gold plating faucet has an excellent wear resistant property. It doesn't oxidize allowing gold to remain as one of the highly consistent plating surfaces for years and years the Platinum sensor faucets are anti-erosion, anti-abrasion and high strength. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. deal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications: Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Water Temperature Control: check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Brushed Gold Tone Thermostatic Sensor Tap B505 Product Description
- The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
- The thermostatic technology: Controlling the temperature fluctuations atthe outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enough cold and hot to prevent scalding.
- Installation is a child's game, almost like a manual faucet
- Easy servicing
- Version with mixer to adjust the temperature also available
- 6V battery or electrical connection version available
- Solenoid valve inside the product
- Operates with low and high pressures (0.5 to 7Bar)
- Range adjustment
- Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
- Usage: Commercial / Residential
Hotel BathSelect Brushed Gold Tone Platinum Automatic Faucet FAQ
Hospitality Sensor Analytics, Usage-Cycle Durability & Intelligent Water Delivery
Designed for hotel environments, this automatic faucet emphasizes high-cycle reliability, hygiene optimization, and controlled water consumption.
How is sensor reliability maintained under continuous guest usage?
Commercial-grade electronic components are engineered for high activation-cycle counts and stable long-term operation.
What engineering factor most affects automatic faucet lifespan?
Solenoid durability, sensor stability, and water-quality conditions are primary determinants of service life.
How does automatic shutoff improve operational efficiency?
Timed deactivation prevents unnecessary flow when user presence is no longer detected.
Why are hospitality sensor faucets designed with pressure-independent performance characteristics?
Pressure compensation helps maintain a consistent user experience across varying building demand conditions.
|
|
|
|
|
|
|
