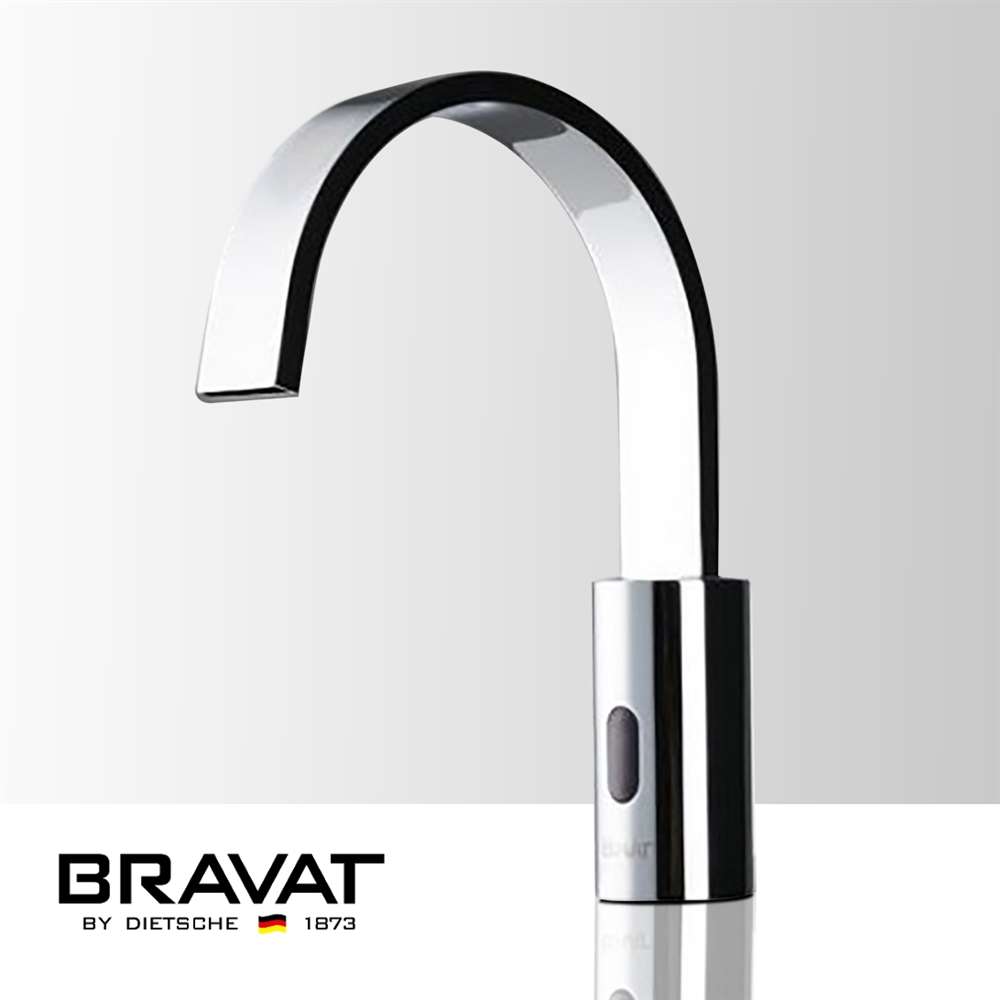

Bravat Infrared Autamatic Electronic Commercial Faucet
- Sensor faucet complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- Durable Vandal-Resistant Brass Body;
- Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
- Intelligent: with its micro-computer controlling its action,
- The faucet will self adjust best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
- Usage: Commercial
|
|

- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power and Voltage: DC.6V AC.220V - 50/60Hz
- Power Consumption: 0.5MW <2W
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
- Degree of protection by enclosure: 1P56
<---
BathSelect® Manufacturer Warranty Information
 Installation Instructions for Bravat Infrared Automatic Electronic Commercial Faucet --->
The Bravat Commercial Infrared Automatic Electronic Sensor Activated Touchless Faucet
Commercial Sensor Faucet System; Built for high-traffic use with precise sensing, controlled output, and long-cycle durability. This sensor faucet from Bravat brings a new element of design and cost-effectiveness into every bathroom it is installed. The cylindrical base, the infrared sensor, the elegant curve and the polished chrome finish exudes a stylish and contemporary appeal that is perfect for the modern bathroom. Aside from the voguish design, the Bravat Infrared Electronic Faucet is built with solid brass to ensure its longevity - which is why the manufacturer confidently packs it with a ten years warranty. The infrared sensor is sure to work all the time, releasing water only if there is an object within its range and automatically shutting water flow after preset time. This greatly decreases the amount of water wasted from leaving the tap on. The infrared sensor battery is guaranteed to work up to three years. The energy saving architecture of this electronic sensor faucet ensures you will be able to enjoy this touch-free electronic faucet for years and years to come. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Bravat Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline
- Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles
- Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Water Temperature Control;
check
Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital,
- Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
Bravat Commercial Automatic Motion Sensor Faucet FAQ
Adjustable Detection, Rapid Valve Response & Long-Cycle Durability
This polished chrome commercial faucet combines infrared hands-free control, adjustable sensing, AC/DC power, a 6V latching solenoid, and solid-brass construction for high-traffic applications.
What sensing range can be used when commissioning the Bravat faucet?
The installation specification provides an adjustable detection zone of approximately 16–32 cm. This allows the sensor field to be coordinated with basin depth and the user's natural hand position instead of relying on one fixed detection distance.
How quickly does the electronic valve react during a normal wash cycle?
The faucet is specified to open in less than one second after detection and close in less than two seconds after the sensing condition ends, providing responsive operation while limiting unnecessary post-use water flow.
Why is the motor-valve cycle rating important for commercial installations?
The motor valve is rated for up to 500,000 operating cycles. This long-cycle design is particularly relevant in airports, offices, restaurants, healthcare facilities, and other washrooms where the faucet may activate repeatedly throughout the day.
Which rough-in details should be confirmed before mounting the faucet?
The deck opening should be approximately 32–35 mm, with a maximum countertop thickness of about 35 mm. The installation also uses G1/2-inch inlet and outlet connections, so deck preparation and plumbing alignment should be verified before final fastening.
|
|
|
|
|
|
|
