Wella Oil Rubbed Bronze Goose Neck Automatic Touchless Commercial Sensor Faucets
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Goose Neck Automatic Commercial Sensor Faucet Product Description
Touchless Operation
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Oil Rubbed Bronze Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant
Can be installed in new or retrofit applications.
Sensor Faucet Applications: Commercial use.
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet has a built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Usage: Commercial

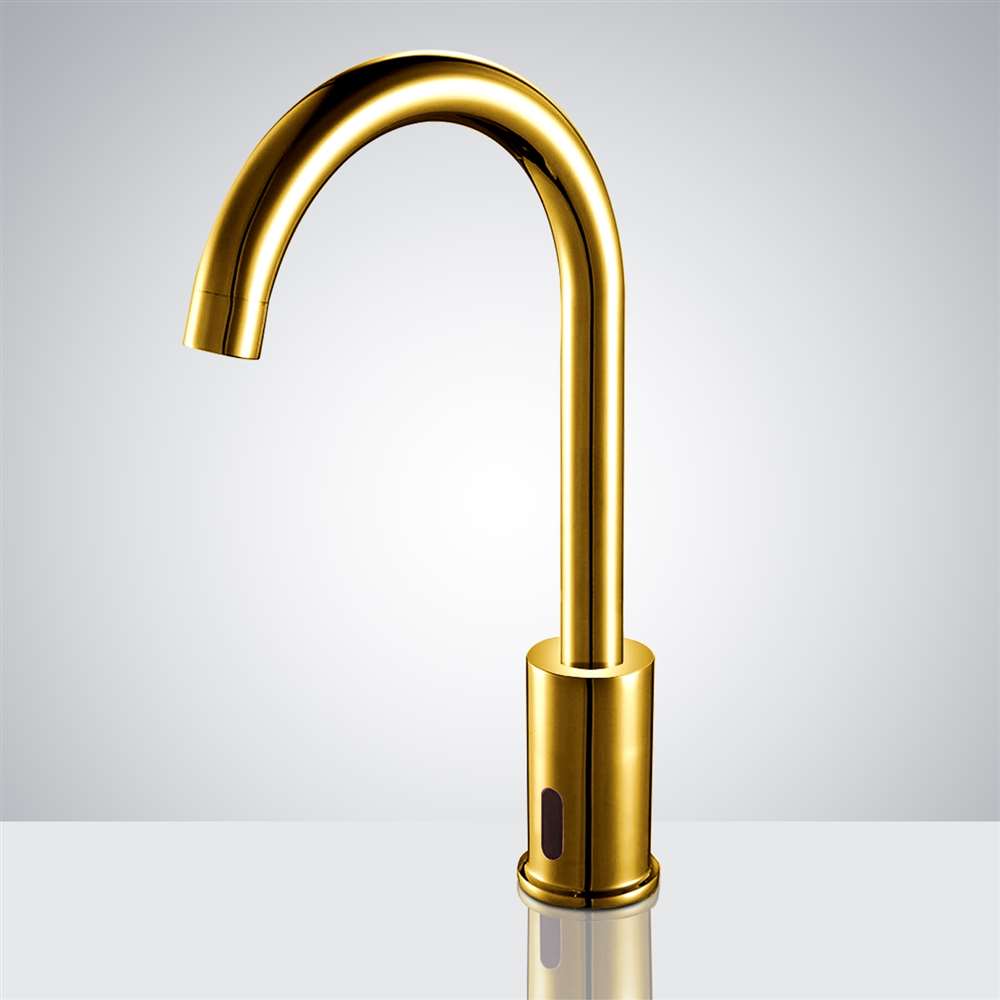

Technical Details of Wella Goose Neck Sensor Faucet B510 - Gold Tone Finish
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power:
DC.6V
Detection Zone:
Factory set 25cm(based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
Overall Height: 11- 1/2" (measured from countertop to the highest part of the faucet)
Spout Height: 7-3/4" (measured from countertop to the spout outlet)
Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of the spout outlet)
Mounting Type: Single hole
Number of Holes Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes): Single Hole
Flow Rate: 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-5/8"
Infrared sensor operation
Faucet Body Material: Brass
Faucet Finish: Gold
Flow Rate: 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-5/8"
Infrared sensor operation
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
WELLA GOOSE NECK SENSOR LINE
Wella Goose Neck™
Commercial goose-neck infrared touchless faucet with solid brass construction,
360° rotating spout, 1.3 GPM flow, adjustable sensing,
and AC/DC operation.
✥
Sensor Calibration Procedure?
+
Complete commissioning after the basin, countertop
and surrounding accessories are installed. The
micro-computer controlled infrared sensor self-adjusts
to the lavatory geometry, while the sensing distance
can be fine-tuned where required.
◇
Hydraulic Checks During Installation?
+
Flush the supply piping before final connection,
verify the DN15 / G1/2-inch water connection,
inspect the built-in strainer for debris, and
confirm stable dynamic pressure before commissioning
the solenoid valve.
◯
Flow Rate Verification?
+
Verify approximately 1.3 GPM during normal
commercial operation. If output becomes restricted,
inspect the outlet, built-in filtration, supply
connections and available dynamic water pressure
before adjusting sensor settings.
↻
Continuous Water Flow Diagnostics?
+
Clean the infrared sensor window, remove reflective
objects from the sensing area, verify stable
electrical power, and inspect the solenoid valve
if water continues flowing after the user's
hands leave the detection zone.
⌁
Sensor Detection Range?
+
The factory sensing range is approximately
4 to 5 inches and can be adjusted during
commissioning. BathSelect also lists a factory
detection zone of approximately 25 cm under
standard inductive-board conditions.
⌂
Operating Water Pressure?
+
Maintain stable inlet pressure within approximately
10 to 125 PSI, corresponding to about
0.05–0.7 MPa. Stable dynamic pressure and
clean filtration support consistent touchless
activation and discharge.
⚡
Power Supply Options?
+
The Wella electronic system supports AC110V
hardwired operation and DC6V battery power.
Battery operation uses four AA cells, providing
installation flexibility for commercial
and retrofit applications.
⌕
Routine Maintenance Requirements?
+
Periodically clean the sensor window and outlet,
service the built-in strainer, inspect battery
and electrical connections, remove mineral buildup,
and verify reliable automatic shutoff during
scheduled commercial maintenance.
‹
›
Gold Tone
♧
1.3 GPM
Controlled Flow
◇
Solid Brass
Commercial Construction
⌁
Infrared AI
Adjustable Sensing
⚙
360° Spout
Rotating Goose Neck
Gold Operation
