Venice Thermostatic Rectangular Recessed Shower Head with LED

Venice Thermostatic Rectangular Flushed Shower Head with LED

Alternative Views:

Retail Price: $2,108.00

Sale Price: $1,770.54

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS219TCS

Qty:

Description

Technical Specs

Extended Technical Information

Venice Thermostatic Rectangular Recessed Shower Head with LED

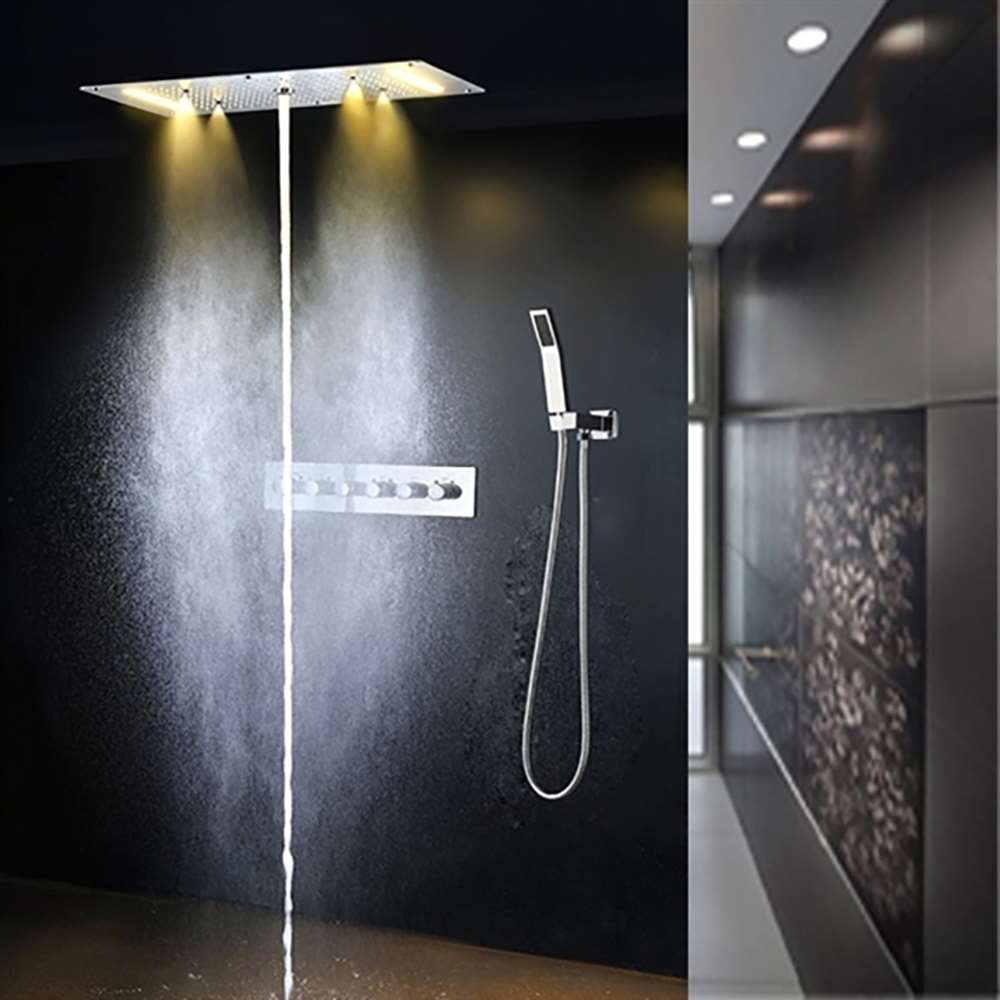

The Venice thermostatic rectangular shower head with LED will let you choose between a ceiling mount shower head and wall mount hand held shower at any time during your bath. The LED light will brighten the bath, while the thermostatic valve will make sure you never get scalded again. This set is made of high quality materials, stainless steel and brass, that guarantee a long lasting life time. It is easy to install, it comes complete with accessories and installation instructions.

Surface Finish : Chrome
Accessories: Shower set
Showerhead Installation Type: Flush Cieling Mount Recessed Shower Head
Style : Double
Material : 304 Stainless Steel and Brass
Voltage : 90-250v
Size : 27.55"*14.96" (700 * 380mm)
Color : Single Color
Thread : G1 / 2 "and G3 / 4"
Water Flow : 60L / Min
Water Pressure : 0.25-0.5mpa
Valve : 5 Way Thermostatic Valve
LED life : 50000 hours

Venice Thermostatic Rectangular Recessed Shower Head with LED

BathSelect® Manufacturer Warranty Information BathSelect Product Warranty

Installation Instructions for Venice Thermostatic Rectangular Recessed Shower Head With LED

Installation Instructions

Shower

No.	Name	Quantity	No.	Name	Quantity
1.	Bracket	1	5.	Hexagon Wrench	1
2.	M10 Explosion Screw	4	6.	Power	1
3.	Shower Assembly	1	7.	Water Inlet Connecting Pipe	4
4.	Lock Screws	4

1. Use a hexagon wrench to lose the lock screws then separate the showerhead assembly and bracket.

2. Dig 4 Ø10 holes on the ceiling according to the dimension of the screws.

3. Use a hammer to thwack the 4 screws into 4 holes.

4. Install the bracket on the expansion screws then use copper sleeve wrench to lock 4 screws.

5. Make sure all the water inlet pipe connected well without leaking before insert the power plug into the socket.

6. Fix the shower assembly on the bracket by turn the locking bolt.

Mixer Installation

a. Release Six handwheel levers according to above directions.

b. Take apart the embed valve, panel, and handwheel.

1. Dig the embed space for the pipe on the wall according the specification of the valve.

2. Dig 4 hole according to the position of the screws.

3. Use a hammer to thwack the screws into 4 holes.

4. Fix the valve body with 4 screws.

5. Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.

6. After connect all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when turn on water.

7. Fix the decorative panel on the embed valve body.

8. Screw the handwheel arms with the handwheels.

Hand-Held Shower

Shower Holder Installation

1. Open the closed cover of the shower holder and take out the screws.

2. Drill two holes size 6mm on the wall according the hole position of the shower holder. Use a hammer to break 2 plastic wall plug into two holes. Tighten the screws with the plastic wall plug and locking with the shower holder. Then install the closed cover.

3. Connect the shower hose with water outlet connection part and hand shower. Plug the hand shower in the shower holder.
