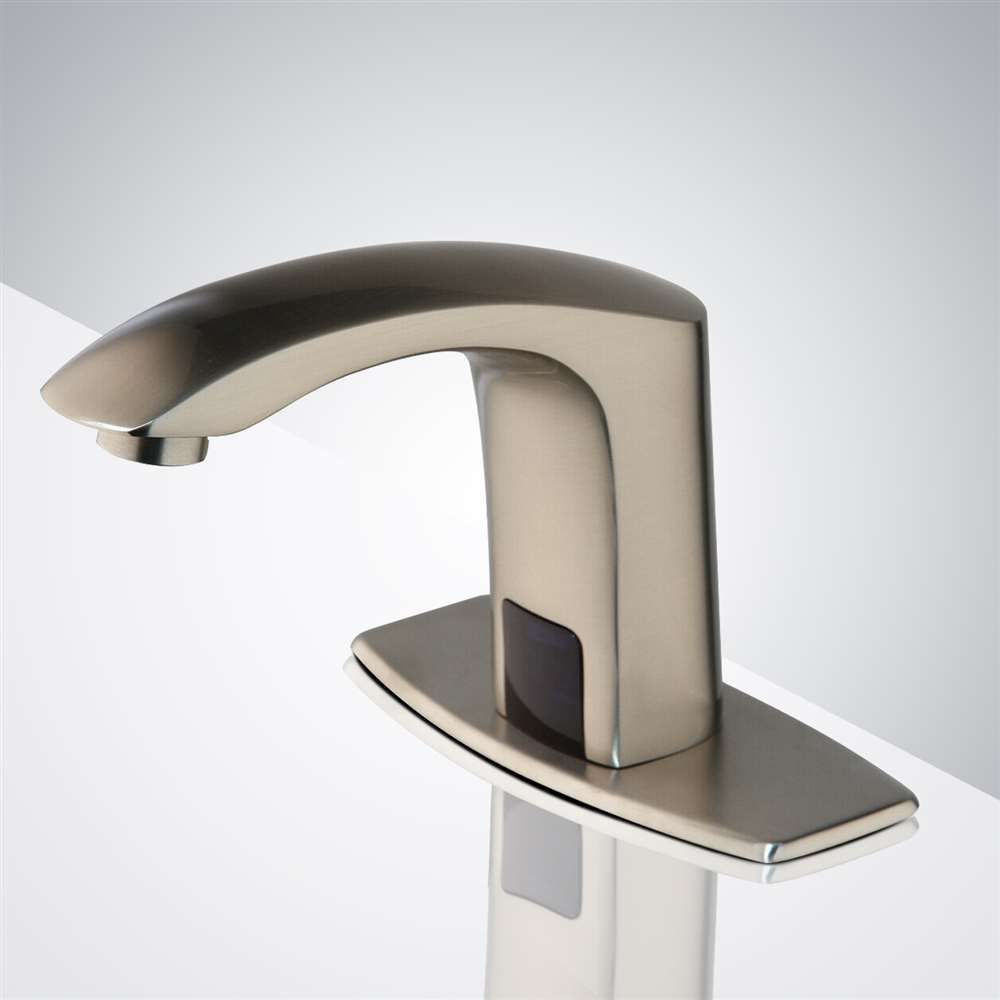

Fontana Automatic Hands Free Commercial Brushed Nickel Sensor Faucet
Available in Chrome, Oil Rubbed Bronze, and Gold Tone Finish
Fontana Commercial Brushed Nickel Sensor Faucet Product Description

Commercial Hands-Free Faucet; Designed for institutional environments with precision sensing, anti-splash flow control, automatic shut-off timing, and durable long-cycle performance. This contemporary touchless, sensor activated bathroom faucet comes with a self-setting detection range
is low maintenance, and has an easy access screen to protect working components from debris and natural waterborne elements.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Motion touchless sensor faucet operation.
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Brushed Nickel Finish
- Available in Polished Chrome, Oil Rubbed Bronze, and Gold Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- Fit for commercial use applications.
- ADA Compliant, commercial sensor faucet.
- Can be installed in new or retrofit applications.
- Comes with 5 - Year Manufacturer Warranty
- Usage: Commercial
- Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
|
|
- Faucet Total Height (cm): 12
- Spout Height (cm): 9
- Spout Length (cm): 17
- Mounting Type: Single hole
- Valve Type: Ceramic Valve
- Number of Holes Required for Installation: 1
- Faucet Body Material: Brass
- Faucet Spout Material: Brass
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power: DC.6V
- Flow rate: 0.5GPM (1.9 L/min)
- Detection Zone: Factory set 25cm(based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃
- Degree of protection by enclosure: 1P56
Sensor Faucet water-saving; hygienic; automatically opens and closes
Electronic Faucets - no touch, avoid bacteria mutual infections!
A great addition to public bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
Spout:
Chrome Plated
- Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles
- Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
- Water Temperature Control;
check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
Rod:
N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2†to 6â€
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
Fontana Automatic Hands Free Commercial Faucet Oil Rubbed Bronze FAQ
Oil-Rubbed Bronze Finish Technology, Infrared Detection Algorithms & Solenoid Valve Engineering
The Fontana Oil Rubbed Bronze automatic commercial faucet integrates intelligent infrared sensing, precision electronic valve control, and commercial-grade brass construction to deliver hygienic, water-efficient performance for public washrooms.
How does the oil-rubbed bronze finish resist commercial cleaning chemicals?
Its protective multi-layer coating provides enhanced resistance against oxidation, detergent exposure, moisture penetration, and daily cleaning procedures commonly used in commercial facilities.
How does the infrared controller distinguish between intended users and surrounding objects?
The control processor evaluates reflected infrared intensity, object distance, signal duration, and movement patterns before authorizing valve activation.
What engineering factors influence solenoid valve longevity?
Coil efficiency, diaphragm material quality, operating voltage stability, hydraulic pressure, and cycle frequency collectively determine long-term solenoid durability.
How does automatic water shutoff improve plumbing system efficiency?
By immediately terminating flow after the user's hands leave the sensing zone, the faucet minimizes unnecessary water consumption and reduces continuous system demand.
|
|
|
|
|
|
|
Consistent valve timing
