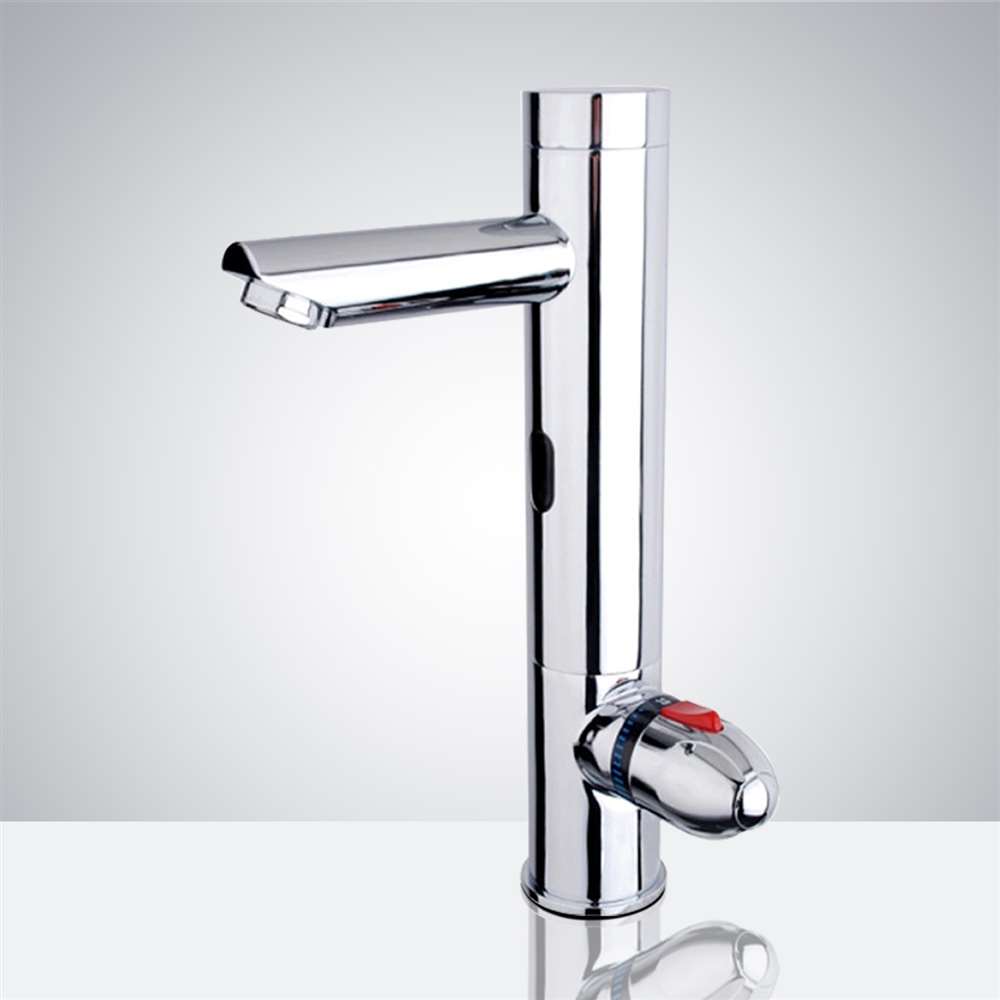

Milano All-in-one Chrome Thermostatic Automatic Commercial Sensor Faucet

Automatic Electronic Sensor Faucet mixer All-in-One Parts comes with Ceramic Cartridge and Built-in check valve

Alternative Views:


Retail Price: $558.90
Sale Price: $415.81





Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5129
Qty:

Description Technical Specs Extended Technical Information


Milano All-in-one Chrome Thermostatic Automatic Commercial Sensor Faucet

Milano All-in-one Thermostatic Automatic Commercial Sensor Faucet

Automatic Commercial Faucet with Integral Water Mixing Valve, Chrome Finish Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding, while mixing the water at the desirable temperature at the point of use.

The BST5132 lavatory faucet features an integrated above counter mixer built into the faucet body, a 2-8 inch sensor range, and built in brass solenoid. maintenance of the BST5132 is simple and can be performed in minimal time.

The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.

This contemporary angel spout single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance.

Perfect for hotels, private washrooms and other public commercial lavatories. Sensor Faucet for Residential & Commercial use.

Touchless Operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted).

Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi Solid Brass Construction, Chrome Finish Easy to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Complaint, commercial sensor faucet. Easily can be installed in new or retrofit applications.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body;
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function. Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Usage: Commercial / Residential
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for

Heavy/Medium Traffic Commercial and Residential Applications.

  • Specifications: Overall Height: 7" (measured from counter top to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from counter top to the spout outlet)
  • Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Hole Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8" Infrared sensor operation


BathSelect® Manufacturer Warranty Information BathSelect Product Warranty
Installation Instructions for Thermostatic Automatic Commercial Sensor Faucet
Features

Milano All-in-one Thermostatic Mixer Sensor Faucet B5137

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature also available
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
  • Usage: Commercial / Residential
Installation Manual For Details of Milano All-in-one Thermostatic Sensor Faucet Faucet Installation Instructions
