Features

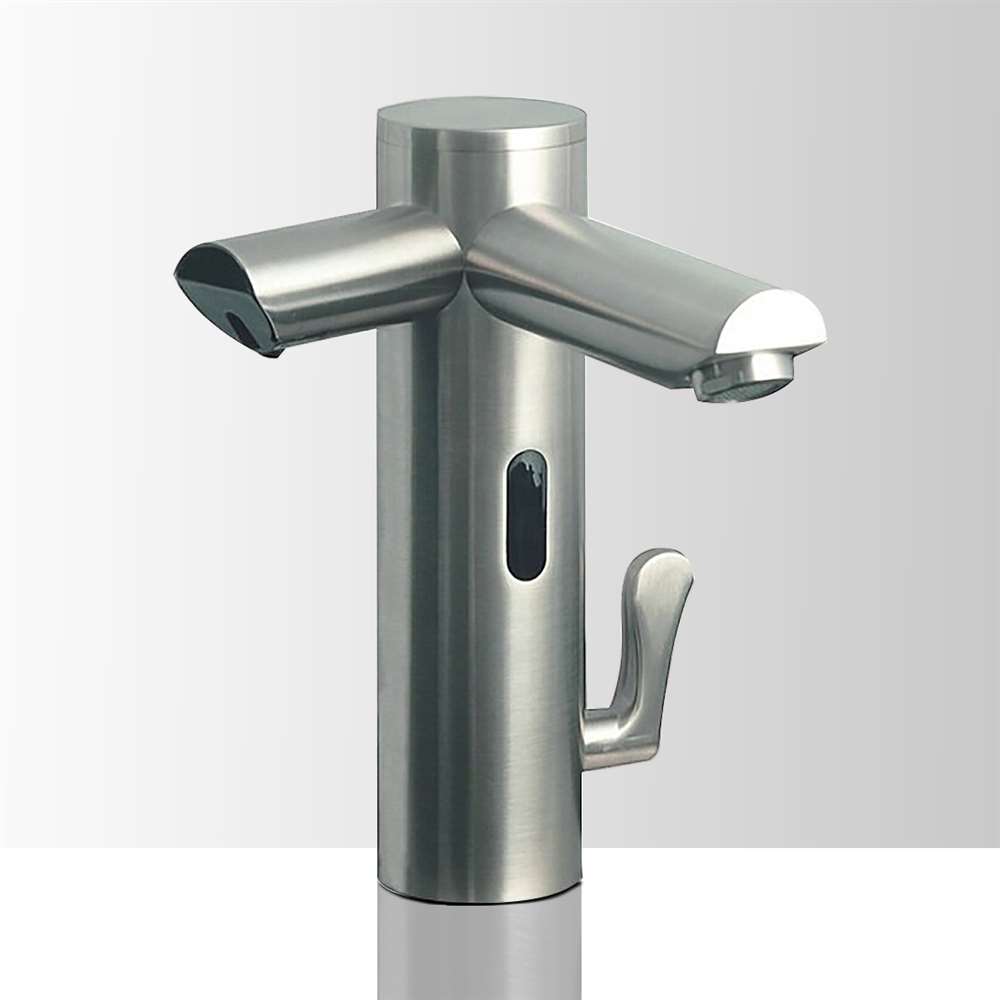

Lenox Commercial Dual Automatic Sensor Faucet
This cast brass electronic motion faucet is now available in dual function Water and Soap Dispenser Sensor Faucet. This touchless motion sensor faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Premium Touchless Faucet; Designed for high-traffic commercial restrooms with precise infrared sensing, controlled water flow, anti-splash aeration, and reliable automatic shut-off.
Read More
Lano Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
* This Sensor Faucet Applications; Residential, Commercial use & ADA
* This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
* GPM Complies with NSF Standard 61, Section 9
* Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
* All the hardware necessary for satisfactory installation
* Specifications and Dimensions
* Spout: Brushed Nickel Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
* Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
* Working Water Pressure: 1 PSI -100 PSI
* Supply Inlet Size: 1/2" NPT Male
* Water Temperature Control; check
Options for temperature control sensor faucets
* Built-in Pop-Up Drain
* Rod: N/A
* Sensor type and Location: Active Infrared, Neck mount Sensor
* Microprocessor: Digital, Pug And Play Sensing Range: 2" to 6"
* Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
* Anti vandalism maximum Running Time: 60 Seconds
* Particle filter size: 50
* Mesh Aerator: 2.2 GPM Standard
Dual Electronic Sensor Faucet
* Infrared sensor operated, touch-free operation with Auto soap dispencer.
* Advanced energy saving design for long lasting battery life
* Waterproof sensor
* Battery low LED light indicator
* Sensing distance adjusted automatically
* Long life durable body
* Advanced circuit design saves electricity and water
* Battery: 4 x 'AA' size cells
* Operational water pressure range: 0.05 - 0.6MPa
* US standard water supply pipe size: DN15 (G1/2")
* Ambient temperature range: 0.1 - 45ºC
* Sensing distance: 25cm
* Time delay: 0.5 seconds
* Operation duration: power will automatically cut off after continuous use for 60 seconds
* Pop-up drain: No
* Finish: Chrome
Sensor Tap Advantage:
* Conserves water
* Saves energy during water heating process
* Hygienic, no-touch activation
* Easy installation
* Durable, solid all-brass construction
* Built-in filter
* ADA complaint Ideal for use by disabled people
* Vandal resistant
* Waterproof Components
Read More
Intelligent: with its micro-computer controlling its action, the motion sensor faucet can self-adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is Brushed Nickel, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation
With this dual faucet soap dispenser, you can reduce the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing water waste while soaping, lathering, scrubbing, and drying hands, eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
* Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
* Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
* Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
* Meaning of the codes are described in the installation instructions.
* Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
* Faucet can be mount to any sink surface.
* ADA Compliant Soap Dispenser Faucet.
* Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
* Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Lano Commercial Sensor Faucet Brushed Nickel Finish FAQ
Sensor Accuracy, Automatic Flow Control & Supply Protection
This brushed nickel commercial faucet combines touch-free sensor activation, automatic water control, durable deck-mounted construction, and electronically managed operation for busy wash stations.
What affects the accuracy of the Lano sensor during everyday operation?
Sensor performance depends on its relationship with the user's hand position, basin geometry, and nearby reflective surfaces. Keeping the detection area properly aligned and the sensor face clean helps maintain consistent activation without unnecessary triggering.
Does water continue running when hands are removed from the wash zone?
No. Once the sensing system no longer detects the user's hands, the electronic control closes the water valve automatically. This demand-based operation reduces unnecessary discharge between handwashing cycles.
Why should the supply line be flushed before final commissioning?
New or recently modified plumbing can contain pipe scale, sealant fragments, and construction debris. Flushing before connection reduces the chance of contaminants entering the valve path and affecting flow or complete automatic shutoff.
Which installation detail can help reduce backsplash at the basin?
The faucet outlet should be positioned so the stream lands within the basin's effective wash area rather than directly on the drain or a steep bowl surface. Coordinating spout reach with basin geometry improves user comfort while limiting splash beyond the countertop.
|
|
|
|
|
|
|
