How does the hospitality-grade infrared controller improve operational consistency?

The controller continuously processes infrared reflections to provide dependable activation across varying ambient lighting conditions while maintaining consistent response throughout frequent guest usage.

Why should concealed valve alignment be inspected before final wall finishing?

Correct valve positioning ensures the exposed trim aligns accurately with the wall outlet, simplifying future maintenance while maintaining proper hydraulic geometry and appearance.

How does the brass valve body improve hydraulic durability?

The brass valve body resists internal corrosion, maintains dimensional stability under repeated pressure cycles, and supports dependable sealing performance throughout extended commercial service.

Why should the adjustable sensing distance be optimized after basin installation?

Final calibration compensates for basin depth and reflective countertop materials, improving activation precision while reducing unintended triggering in hospitality restroom environments.

How does dual AC/DC power architecture support uninterrupted service?

Dual-power capability allows continuous touchless operation using either transformer or battery supply, minimizing service interruptions during temporary electrical outages.

Why should electronic shutoff timing be verified during commissioning?

Confirming automatic shutoff timing ensures the electronic controller closes the valve immediately after hand removal, supporting water conservation and dependable commercial performance.

What maintenance procedures preserve hospitality sensor faucet reliability?

Inspect sensor optics, verify battery or transformer operation, clean inlet strainers, examine ceramic valve performance, remove mineral deposits, and periodically inspect wall-mounted plumbing connections.

Which commissioning procedures verify complete BS-BSH27653DP performance?

Commissioning should verify infrared sensitivity, concealed valve alignment, AC/DC operation, ceramic valve response, leak-free G1/2 connections, automatic shutoff, outlet alignment, and stable hydraulic performance.

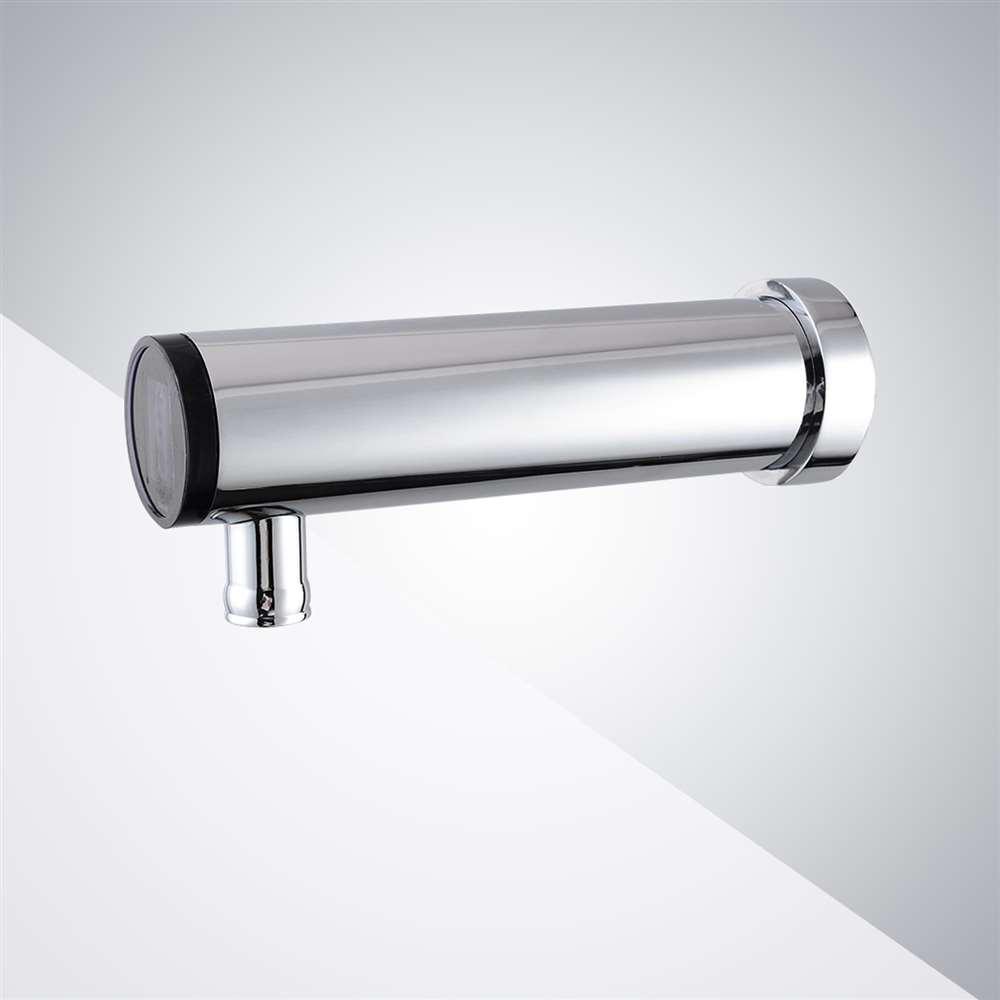

Hospitality Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet in Chrome

Alternative Views:

Retail Price $540.22

Sale Price: $510.12

You save $30.10!

Price with Selected Options: $510.12

Availability: Currently Unavailable
Product Code: BS-BSH27653DP

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Hospitality Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet in Chrome Quick Details:

Type: Touchless Motion Faucet
Brand Name: Fontana Sensor Faucets
Model Number: BS-BSH27653DP
Surface Finish: Chrome
Feature: Motion Sense Faucets
Surface Treatment: Polished
Faucet Mount: Single Hole
Installation Type: Wall Mount
Number of Handle: Single Handle
Style: Contemporary
Valve Core Material: Ceramic
Material: Copper 59-60%, Sensor faucet
Faucet Type: Wall Sensor Faucet
Faucet Style: Sensor Faucet
Usage: Commercial / Residential
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Product Description:

Voltage: DC 6V (4AA alkaline batteries)
Power consumption: ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
Sensor zone: 30cm (11.81")(the data based on 30cm*30cm standard whiteboard
Flush time: When hands are in the sensor zone, water will run automatically, and when hand is no longer in the sensor zone, water will close.
Hot and cold water temperature control: Cold only
Inlet & outlet pipe dia: G(1/2")
Water pressure: 0.05-0.8 Mpa
Material and surface: Brass valve with chrome
The flow rate is 1.5 GPM

Faucet Quality Control Inspection:

Inspection of the casting
Leakage test inspection
Surface inspection after polishing
Surface inspection after plating
Leakage test at assembly

Features:

Touch free: Water runs automatically when your hands in sensor range.
Water temperature adjustable
Hygienic: with no touch,bacteria mutual infections can be avoided
Sensing range adjustable: (4.72"-7.08")12 - 18cm adjustable distance according to requirements
AC and DC dual choice: can be chosen by exchanging battery box and power box
Save electricity: Faucet will run for two years with four AA alkaline batteries
Anti-disturbance ability:anti high-frequency signal and glare disturbance
Brass body
Dimension in cm: 20(Height)*5.5(Width)*12(Length)
Engineered for a lifetime of use
Single-hole configuration
Great for residential & commercial use.

Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet

Features

Hospitality Wall Mount Single Hole Hands-Free Commercial Faucet FAQ

Hospitality Infrared Calibration, Duty-Cycle Electronics & Wall Outlet Flow Control

This hospitality-grade wall-mounted automatic faucet is engineered for continuous commercial operation through precision infrared sensing, durable electronic control, and optimized wall outlet hydraulics.

How does adaptive infrared calibration improve reliability?

The electronic controller continuously maintains sensor sensitivity, compensating for changing ambient light and reflective surfaces commonly found in hotel bathrooms.

Why are commercial-duty electronics important in hospitality applications?

Industrial-grade electronic components are designed for frequent activation cycles, maintaining consistent performance under continuous guest usage.

How does wall outlet alignment improve water delivery?

Accurate outlet positioning directs water toward the basin center, reducing splash while maintaining comfortable handwashing clearance.

How does concealed valve placement simplify future servicing?

The in-wall valve assembly allows trim components to be serviced independently while protecting primary plumbing connections behind the finished wall.
