BathSelect Dark Oil Rubbed Bronze Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser

DORB Bathroom sensor motion faucets

Alternative Views:


Retail Price: $1,421.54
Sale Price: $1,066.95
You save $354.59!

Price with Selected Options: $1,066.95




Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS1090RM


Hot & Cold Option:

Click to view another Select Manual Soap Dispenser

Select Manual Soap Dispenser:


Qty:
Description Technical Specs Extended Technical Information


BathSelect Dark Oil Rubbed Bronze Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser

Bravat Bronze Infrared Automatic Electronic Commercial Faucet

  • Sensor faucet complete motion detection operation.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Dark Oil Rubbed Bronze
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Durable Vandal-Resistant Brass Body;
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.
  • Intelligent: with its micro-computer controlling its action,
  • The faucet will self adjust best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mounted to any sink surface.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Usage: Commercial / Residential


  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V, AC.220V - 50/60Hz
  • Power Consumption: 0.5MW, <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56


Features


We're available to provide assistance and support for your inquires!

Featured

categories
Touchless Faucets
View more
Touchless Combo
View more
Touchless Soap Dispensers
View more
BATHSELECT SENSOR LINE

BS1090RM™
Technical FAQs

Commercial infrared touchless faucet with solid brass construction, Dark Oil Rubbed Bronze finish, adjustable sensor control, AC/DC power, and electronic solenoid operation.

✥ How Should the Sensor Range Be Commissioned? +
Complete sensor commissioning after the faucet, basin and surrounding surfaces are fully installed. The sensing field is adjustable, allowing the detection zone to be coordinated with the basin geometry while reducing unintended activation from nearby surfaces.
◇ What Is the Sensor Response Time? +
The active infrared sensing system is specified with an approximately 0.3-second response time. During commissioning, verify repeatable activation throughout the intended hand-detection zone before placing the fixture into service.
◯ What Flow Rate Should Be Verified? +
The technical information lists a standard 2.2 GPM mesh aerator. Verify discharge under normal dynamic supply conditions and inspect the aerator, built-in filtration and service connections if measured flow becomes restricted.
↻ How Does Automatic Shutoff Operate? +
The faucet is factory configured with an automatic shutoff function, with the product page listing a 30-second factory setting that can be adjusted. The electronic control also incorporates a short shutoff delay following sensor clearance.
⌁ What Detection Range Is Available? +
The detection field is adjustable for project commissioning. BathSelect lists a factory sensing range of approximately 4 to 5 inches, while the technical information also identifies programmable infrared sensing for different installation conditions.
⌂ What Water Pressure Should Be Maintained? +
Maintain stable dynamic supply pressure within the specified operating range. BathSelect lists approximately 10 to 125 psi for the faucet assembly. Flush supply piping before connection and regulate abnormally high pressure where required.
⚡ What Power Configurations Are Supported? +
The electronic faucet supports AC/DC operation, including a 6V battery configuration and AC power option. Confirm the selected power arrangement, sensor connection and solenoid wiring before commissioning the fixture.
⌕ What Routine Maintenance Is Required? +
Periodically clean the infrared sensor window and aerator, inspect the built-in strainer for waterborne debris, verify reliable solenoid closure, and check supply fittings and power connections during scheduled maintenance.

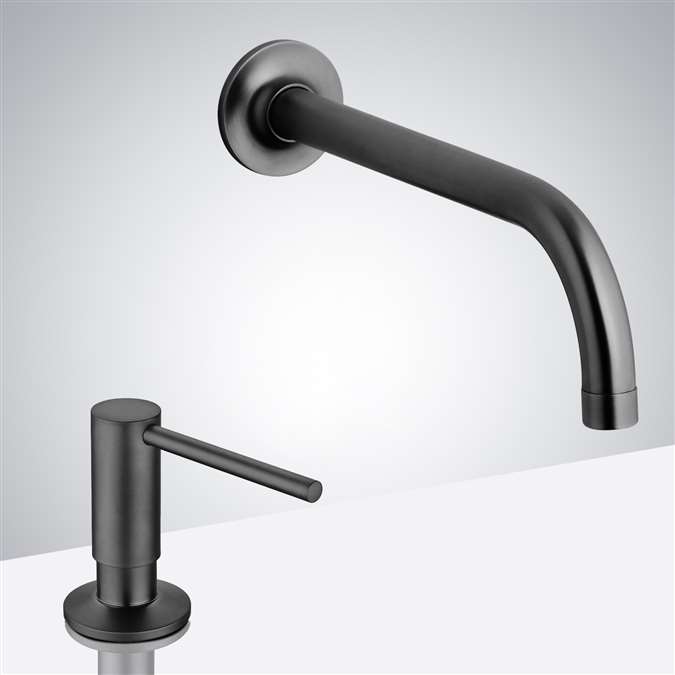

BathSelect BS1090RM Dark Oil Rubbed Bronze Automatic Sensor Faucet
Dark Oil Rubbed Bronze
♧
2.2 GPM Standard Aerator
◇
Solid Brass Durable Construction
⌁
Infrared Sensor 0.3 Sec Response
⚙
AC / DC Power Flexible Installation
◇
1/2" NPT Supply Connection

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 3 Write a review.

  5 of 5 people found the following review helpful:

 of 5 Controls Feel Considered Wednesday, July 29, 2026
Reviewer: Leonard Fairchild from Spokane, WA
The specification is more convincing once you look beyond the dark bronze finish. BathSelect lists solid-brass construction, adjustable infrared sensing, a 30-second factory shutoff, AC/DC power, IP56 enclosure protection, and a 10–125 psi operating range. Those are useful commercial fundamentals, particularly where predictable shutoff and protected electronics matter. The included manual soap dispenser is simpler than a second sensor unit, but that may actually reduce service complexity. For facilities teams wanting touchless water delivery without over-automating the entire station, the arrangement is sensible.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Black Sensor Precision Thursday, August 21, 2025
Reviewer: Kevin, Smith from Salt Lake City, Utah
In day-to-day operation, the Rose Gold Matte BathSelect Automatic Sensor Faucet (BS1090RM) showed the kind of consistency commercial buyers look for when specifying touchless or sensor-driven restroom fixtures. Its sensor response is stable and well-controlled, with a practical activation range that helps reduce false triggering while still keeping handwashing intuitive for users. The body construction feels substantial, and the rose gold matte finish adds both design value and better resistance to visible wear in demanding environments. Installation is straightforward with familiar connection points, and the internal layout is serviceable enough that maintenance teams can troubleshoot or access components without wasting time. That matters for lifecycle cost as much as first-day appearance. Customer support added confidence on the specification side as well. BathSelect responded with useful technical guidance rather than canned replies, which makes a difference during procurement and installation. Overall, it performs like a well-considered commercial restroom fixture: dependable activation, durable construction, and a finish package that supports both design intent and long-term ownership value. As a Property Manager, earlier faucets failed quickly under heavy use. This BathSelect unit has held up without sensor degradation or leaks. Build quality is solid and suited for commercial duty.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Dynamic Motion Flow Monday, May 20, 2024
Reviewer: Kevin, Smith from Salt Lake City, Utah
In day-to-day operation, the Rose Gold Matte BathSelect Automatic Sensor Faucet (BS1090RM) showed the kind of consistency commercial buyers look for when specifying touchless or sensor-driven restroom fixtures. Its sensor response is stable and well-controlled, with a practical activation range that helps reduce false triggering while still keeping handwashing intuitive for users. The body construction feels substantial, and the rose gold matte finish adds both design value and better resistance to visible wear in demanding environments. Installation is straightforward with familiar connection points, and the internal layout is serviceable enough that maintenance teams can troubleshoot or access components without wasting time. That matters for lifecycle cost as much as first-day appearance. Customer support added confidence on the specification side as well. BathSelect responded with useful technical guidance rather than canned replies, which makes a difference during procurement and installation. Overall, it performs like a well-considered commercial restroom fixture: dependable activation, durable construction, and a finish package that supports both design intent and long-term ownership value.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Nice look and design Wednesday, November 16, 2022
Reviewer: Lightning Termite & Pest Control from Austin
As an office building facility manger I asked for those touch free sensor faucets and manual soap dispenser to be installed last month. Overall looks good. As for the automatic faucets just what we expected perfect every time. Now we can say we have hygienic restrooms and no more worry about germs on the handles of faucets.
