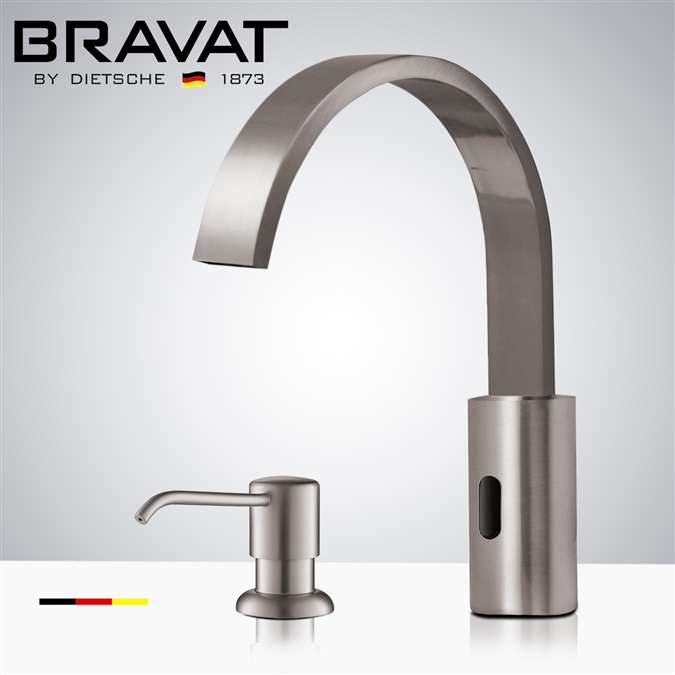

Bravat Brushed Nickel Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser
Sensor faucet complete motion detection operation.
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Brushed Nickel
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Durable Vandal-Resistant Brass Body;
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Intelligent: with its micro-computer controlling its action,
The faucet will self adjust best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mounted to any sink surface.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Usage: Commercial / Residential
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power and Voltage:
DC.6V, AC.220V - 50/60Hz
Power Consumption:
0.5MW, <2W
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
BathSelect® Manufacturer Warranty Information
--->
The Bravat Brushed Nickel Commercial Infrared Automatic Electronic Sensor Activated Touchless Faucet with Manual Soap Dispenser
This sensor faucet from Bravat brings a new element of design and cost-effectiveness into every bathroom it is installed. The cylindrical base, the infrared sensor, the elegant curve and the brushed nickel finish exudes a stylish and contemporary appeal that is perfect for the modern bathroom. Aside from the voguish design, the Bravat Infrared Electronic Faucet is built with solid brass to ensure its longevity - which is why the manufacturer confidently packs it with a ten years warranty. The infrared sensor is sure to work all the time, releasing water only if there is an object within its range and automatically shutting water flow after preset time. This greatly decreases the amount of water wasted from leaving the tap on. The infrared sensor battery is guaranteed to work up to three years. The energy saving architecture of this electronic sensor faucet ensures you will be able to enjoy this touch-free electronic faucet for years and years to come. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Manual dispenser offers tactile feedback preferred in some high-abuse public environments.
Bravat Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Solid Brass Power: 4 (AA) Alkaline
Batteries or AC Adapter
Battery life expectancy: 250,000 cycles
Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control;
check
Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital,
Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquires!
Featured
categories
BRAVAT SENSOR LINE
Bravat™
Commercial solid-brass infrared sensor faucet with adaptive sensing,
AC/DC power, vandal-resistant construction and adjustable automatic shutoff.
✥
Sensor Calibration Procedure?
+
Complete sensor commissioning after the basin, countertop and surrounding
fixtures are installed. The micro-computer controlled infrared system
self-adjusts its optimum detection zone according to lavatory color and
geometry, while the sensing distance can also be field adjusted.
◇
Hydraulic Checks During Installation?
+
Flush the water supply before final connection, confirm DN15 inlet and outlet
connections, inspect the built-in strainer and verify stable dynamic pressure
before commissioning the electronic solenoid assembly.
◯
Operating Water Pressure?
+
The product documentation lists approximately 0.05–0.7 MPa operating pressure,
also stated as approximately 10–125 PSI. Verify adequate dynamic pressure at
the faucet during final commissioning.
↻
Automatic Shutoff Operation?
+
The electronic control is factory configured for approximately 30-second
automatic shutoff and can be adjusted where required. Confirm positive valve
closure during commissioning to minimize unattended water discharge.
⌁
Sensor Detection Range?
+
The hand-detection range is factory set at approximately 4–5 inches from the
sensor and can be adjusted. A separate reference detection zone is listed at
approximately 25 cm or 10 inches using a standard inductive test board.
⌂
Diagnostic Indicator Function?
+
The flashing diagnostic indicator provides status feedback during power-up,
low-battery conditions and solenoid operation. Use the indicator codes with
the installation documentation when troubleshooting sensor or valve behavior.
⚡
Power Supply Options?
+
The sensor system supports AC110V and DC6V operation with an AC/DC power option.
Battery installations use four AA alkaline batteries, while the water-resistant
solenoid enclosure protects the electronic valve assembly.
⌕
Routine Maintenance Requirements?
+
Periodically clean the infrared sensor window and built-in strainer, inspect
supply and electrical connections, remove mineral accumulation and verify
positive solenoid shutoff during scheduled commercial maintenance.
‹
›
Brushed Nickel
⌁
Infrared AI
Adaptive Detection
◇
Solid Brass
Vandal Resistant
↻
30 Sec Shutoff
Adjustable Control
⚡
AC110V / DC6V
Dual Power
⌕
ADA Compliant
Commercial Grade
