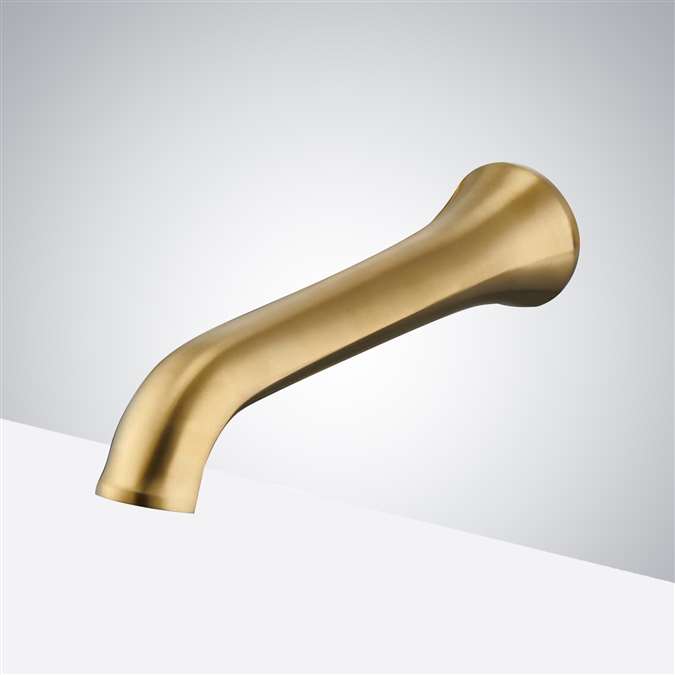

BathSelect Gold Elephant Trunk Commercial Handsfree Motion Sensor Faucet
This Automatic Motion Sensor Faucet from Fontana Sensor Faucets is a top-of-the-line product that offers a sleek, contemporary design and an easy-to-use, hands-free operation. With a self-contained design and a built-in ceramic mixing valve, the BS1103BG is easy to install and requires no additional plumbing. The sensor field is adjustable from 5-30 cm, and the flow rate is 2.0 GP. The BS1103BG is also WRAS approved and features a 108000 flush life span. This faucet is perfect for any commercial setting, such as restaurants, hospitals, or office buildings. Fits all standard US plumbing.
Wall Mount Sensor Faucets
- Type: Touchless Motion Faucet
- Model Number: BS1103BG
- Surface Treatment: Brushed Gold
- Number of Handle: 0
- Power supply: AC/DC Option
- Surface Finish: Brushed Gold
- Faucet Mount: Single Hole
- Style: Contemporary
- Approval: CE, WRAS, CUPC, ROHS, WATERMARK
- Battery Lifespan: 108000 Flushes
- Brand Name: BathSelect Sensor Faucets
- Feature: Sensor Faucets, Thermostatic Faucets, Electric Faucets, 2014 Electrical Sensor hands free operation sink faucet tap
- Installation Type: Wall Mount
- Sensor Field: 5-30 cm Adjustable
- Flow Rate: 2.0 GP
Sensor Faucet- ADA Compliant
- Self contained design
- Ceramic mixing valve built-in
- Wall mount design one piece infrared sensor basin faucet
- The sensor is self-adjusting to its installation environment when wired in
- Electric and battery powered options included
- Solid brass construction
- Hygienic and water conservation
|
Technical Information
- Power Supply: DC:6V(4 x AA alkaline batteries)AC:220V-240V/50Hz or AC110V/60Hz
- Power Consumption: Static≤0.3mW;Active≤3W
- Battery life: 108000 flushes(4 x AA alkaline batteries)
- Sensor Field: (1.96"-13.77")05-35cm (adjustable)
- Water Pressure: 0.05~0.8MPa
- Ambient temperature: 0~55°C
- Working life: 350000~400000 times
- Sensor time: <1 Sec
- Closing time: <2 Sec
- Low voltage indication: 3.9V(The light will flash twice each two seconds)
- Self shut off time: 65-70 Sec (Non stop flushing)
|
