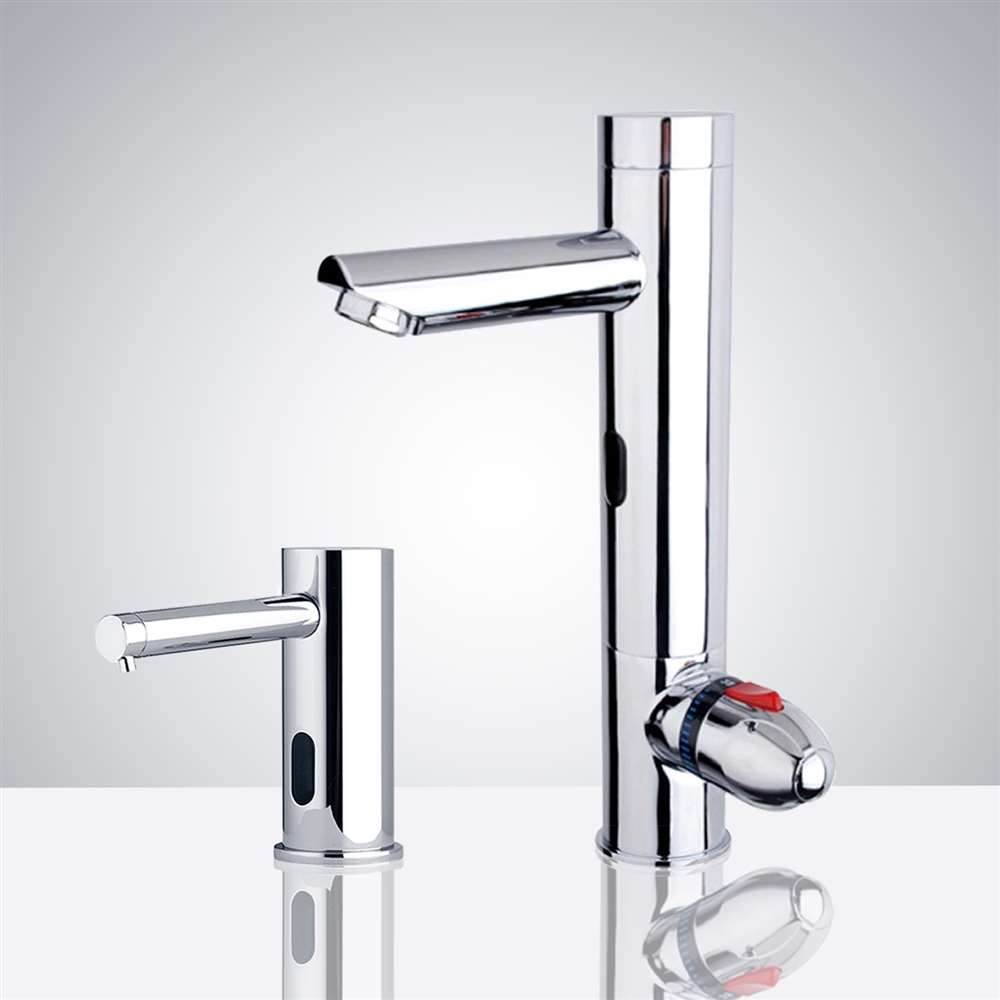

All-in-one Thermostatic Automatic Commercial Sensor Faucet with Soap Dispenser in Chrome Finish
All-in-one Thermostatic Automatic Commercial Sensor Faucet with Soap Dispenser

Alternative Views:
Retail Price: $2,236.98
Sale Price: $1,331.67
You save $905.31!

Price with Selected Options: $1,331.67





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5129SD


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Automatic Commercial Sensor Faucet with Soap Dispenser

Milano All-in-one Thermostatic Automatic Commercial Sensor Faucet

Automatic Commercial Faucet with Integral Water Mixing Valve, Chrome Finish Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding, while mixing the water at the desirable temperature at the point of use.

The B5129SD lavatory faucet features an integrated above counter mixer built into the faucet body, a 2-8 inch sensor range, and built in brass solenoid. maintenance of the B5129SD is simple and can be performed in minimal time.

The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.

This contemporary angel spout single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance.

Perfect for hotels, private washrooms and other public commercial lavatories. Sensor Faucet for Residential & Commercial use.

Touchless Operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted).

Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi Solid Brass Construction, Polished Chrome Finish Installation made easy with simplified instructions Water resistant solenoid enclosure Advanced energy saving design for long lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Complaint, commercial sensor faucet. Can be installed in new or retrofit applications. duces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body;
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function. Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx. 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Usage: Commercial / Residential
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for

Heavy/Medium Traffic Commercial and Residential Applications.

  • Specifications: Overall Height: 7" (measured from counter top to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from counter top to the spout outlet)
  • Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Hole Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8" Infrared sensor operation

Features


All-in-one Thermostatic Automatic Commercial Sensor Faucet FAQ

Integrated Soap & Water Delivery, Thermostatic Control Logic & Commercial Hygiene Engineering

This all-in-one commercial fixture integrates automatic faucet operation, thermostatic temperature regulation, and touchless hygiene technology within a unified platform designed for high-traffic environments. :contentReference[oaicite:0]{index=0}

How does the integrated thermostatic valve maintain outlet temperature stability?
The thermostatic cartridge continuously monitors mixed-water temperature and automatically adjusts hot and cold inlet ratios to compensate for supply fluctuations. :contentReference[oaicite:1]{index=1}
What engineering benefits are achieved by combining soap dispensing and faucet functions into one assembly?
Integrated architecture reduces countertop penetrations, minimizes plumbing complexity, and simplifies maintenance access while improving hygiene workflow efficiency.
How is cross-contamination reduced within an all-in-one system?
Touchless activation eliminates direct contact with handles while automated dispensing sequences help support hygienic handwashing procedures. :contentReference[oaicite:2]{index=2}
How does the system manage hydraulic stability during repeated activation cycles?
Electronic solenoid controls regulate flow initiation and termination while minimizing pressure fluctuations and unnecessary water discharge.

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 Write a review.

  8 of 8 people found the following review helpful:

5 of 5 Excellent quality for the price June 4, 2024
Reviewer: Jim from Denver, Colorado
From an operational standpoint, the unit delivered dependable results. The BathSelect Excellent quality for the price (Model B5129SD) demonstrated consistent sensor activation and controlled water flow. The solid brass construction supports durability, while the finish maintains its appearance under frequent use.

Installation was straightforward with standard connections, and the internal components allow for easy maintenance access. The sensor response is well-balanced, avoiding false triggers while ensuring user convenience.

BathSelect’s support team provided clear technical guidance during setup and helped streamline the process. Overall, the fixture meets commercial expectations for reliability, hygiene, and long-term performance.

Was this review helpful to you?

  8 of 8 people found the following review helpful:

5 of 5 Excellent quality for the price November 28, 2022
Reviewer: Steyn Studio from Virginia
pleased with the product and its quality customer service was also rated as part of a bathroom refurbishment we purchased three of these Thermostatic Automatic Commercial Sensor faucets with Soap Dispensers and put them in my bathroom they look nice and cost roughly half the price of other brands

Was this review helpful to you?
