How does the waterfall outlet optimize laminar-sheet water delivery?

Precision-engineered outlet geometry conditions flow into a uniform laminar sheet, reducing turbulence and improving visual consistency.

What sensing technologies improve touchless activation precision?

Adaptive infrared sensing circuitry continuously evaluates reflected signals to improve user detection accuracy and reduce false triggering.

How do hydraulic balancing systems stabilize waterfall performance?

Pressure-equalization chambers compensate for supply-pressure fluctuations and maintain uniform sheet-flow characteristics.

What internal flow engineering reduces turbulence formation?

Streamlined hydraulic transitions minimize eddy generation and stabilize velocity distribution before outlet discharge.

How does automatic shutoff improve water-efficiency performance?

Sensor-controlled valve operation limits discharge duration to active usage intervals and minimizes unnecessary consumption.

How are electronic systems protected from environmental stress?

Sealed control modules and regulated power circuitry reduce humidity intrusion and electrical disturbances.

How does the faucet mitigate mineral-scale accumulation?

Low-retention hydraulic surfaces reduce calcium buildup and preserve waterfall-flow uniformity.

What structural properties improve long-term durability?

Corrosion-resistant materials, reinforced hydraulic interfaces, and industrial-grade electronics support extended service life.

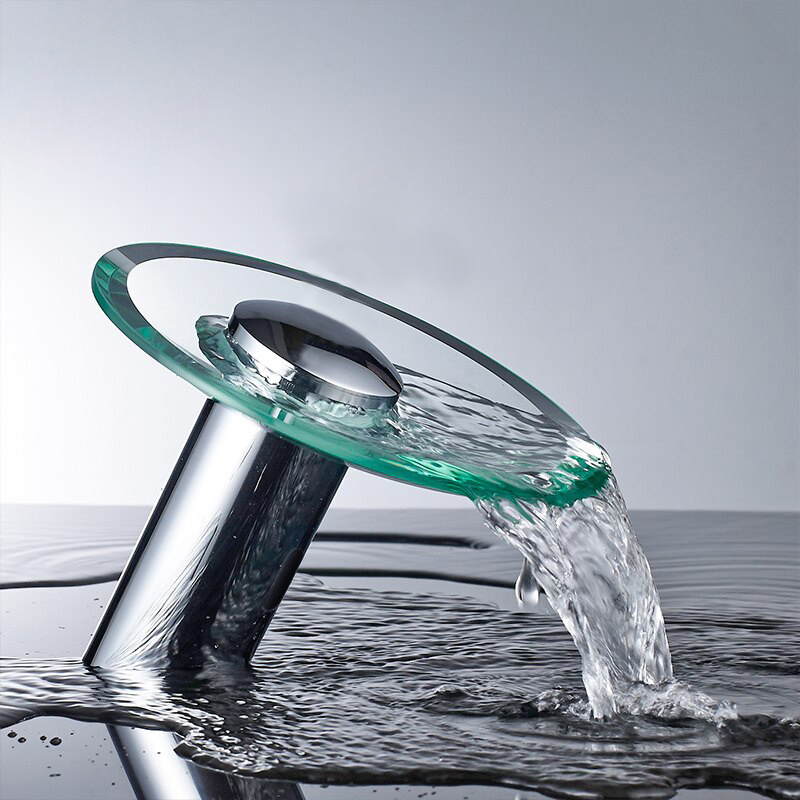

Automatic Sensor Waterfall Faucet B518 (also available in ORB & Gold Finish)

Alternative Views:

Retail Price: $490.38

Sale Price: $438.79

You save $51.59!

Price with Selected Options: $438.79

Availability: Usually Ships in 5 to 10 Business Days
Product Code: B518

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

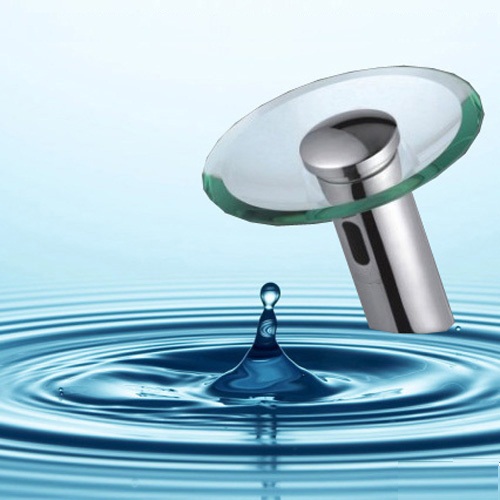

Glass Waterfall Sensor Activated Faucet Brass Valve with Chrome finish

Waterfall Sensor Faucet Product Description

This 6.4" Spout Height Waterfall Automatic Sensor Faucet is great for malls, restaurants, hotels,

schools and other public places. Auto-switch off.

Touchless Operation AC/DC
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction
Available in Polished Chrome, ORB or Gold tone Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option
Easily can be installed in new or retrofit applications
Comes with 3 Year Warranty
Sensor Faucet Applications: for Commercial use

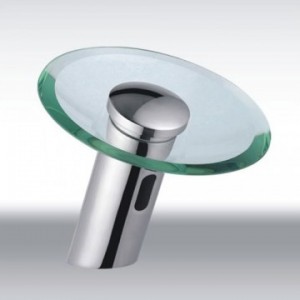

Sensor Faucet Applications: for Residential & Commercial use

Automatic Sensor Waterfall Faucet B518 (also available in ORB & Gold Finish)

Sensor Faucet water-saving: water flows out when your hands approach it and stops immediately. Hygienic: self-open and close Smart Faucets from any touching, which can efficiently avoid bacteria mutual infections

Hands Free Detailed Product Description:

Water-saving: water flows out when your hands approach it and stops immediately
Hygienic: self-open and close Smart Faucets from any touching, which can efficiently avoid bacteria mutual infections
Intelligent: with its micro-computer to controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory
Low power consumption: For DC flushers, 4AA alkaline batteries can be used for 2 years at 200 cycles a day
Convenient to maintain: There is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean Faucet Line Model:

Solid Brass Faucet.
Hermetically Sealed Sensor and Electronics.
Visible Low Battery Indicator.
Battery (4 standard AA batteries) or A/C Powered.

Home owners may find this model a great addition to the powder room or the public bathroom.

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.

GPM Complies with NSF Standard 61, Section 9

Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation

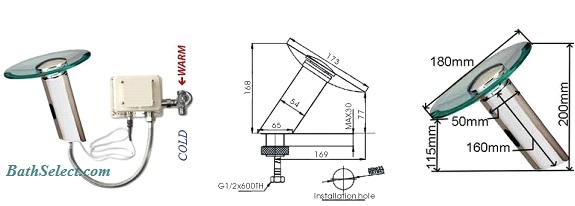

Specifications and Dimensions Spout: Chrome Plated
Solid Brass Power: 4 (AA) Alkaline
Batteries or AC Adapter Battery life expectancy: 200,000 cycles
Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2â€ NPT Male
Water Temperature Control: Built-in
Pop-Up Drain Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play
Sensing Range: 2â€ to 6â€
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard

Main Features:

1. Water-saving: water flows out when your hands approach it and stops immediately
Hygienic: self-open and close Smart Faucets from any touching, which can efficiently avoid bacteria mutual infections
Intelligent: with its micro-computer to controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory
Low power consumption: for 4 AA alkaline batteries can be used for 2 years at 200 cycles a day
Convenient to maintain: there is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean

Features

Water Fall Sensor Faucet Description: Electronic Faucet

Waterfall Faucet (Sensor tap, automatic faucet, electronic faucet, Automatic waterfall faucet)

Advantage:

1. Water efficient,
Hygienic,
No-touch activation,
Easy installation Durable,
Solid DR-brass construction,
Built-in filter
ADA compliant,
Vandal resistant
Waterproof components,
Complies with Food Premises Standard

Glass Faucet Specification:

1. Body: Solid brass with Chrome
Power: DC AA Alkaline Battery, AC/DC alternately
Working pressure: 0.5~7Bar
Water supply pipe size: DN15 (G1/2")
Ambient Temp. Range: 0.1~ 55 Celsius
Sensing distance: adjustable 25cm (default 25cm)
Sensing range setup: Digital
Response time: 0.3 Sec (default
Off Delay time: 1 Sec (default)
Pop-up drain: yes
Fresh Battery Life Cycle: 500,000 on/off
Low Battery Indicator: Red Led flash
Weakness of Battery: Red Led on,
CPU off Warranty: one year

Automatic Sensor Waterfall Faucet FAQ

Laminar Waterfall Hydraulics, Infrared Flow Intelligence & Cascade Outlet Engineering

The Automatic Sensor Waterfall Faucet combines infrared touchless activation with an engineered waterfall outlet that produces a smooth laminar sheet of water while optimizing hydraulic efficiency and minimizing splashing in commercial and residential applications.

How is a laminar waterfall stream produced without excessive turbulence?

Internal flow-conditioning channels distribute water evenly across the outlet slot, producing a smooth, uniform sheet of water with reduced air entrainment and minimal splash generation.

What prevents uneven water distribution across the waterfall spout?

Precision-machined internal manifolds equalize hydraulic pressure before discharge, ensuring consistent flow across the entire waterfall opening.

How does the infrared controller synchronize with the waterfall outlet?

The sensor activates the electronic solenoid only after confirming hand presence, allowing immediate laminar flow while minimizing unnecessary water discharge.

Why is waterfall geometry advantageous for commercial washbasins?

The wider discharge pattern provides comfortable hand coverage while reducing concentrated impact velocity that can contribute to backsplash.
