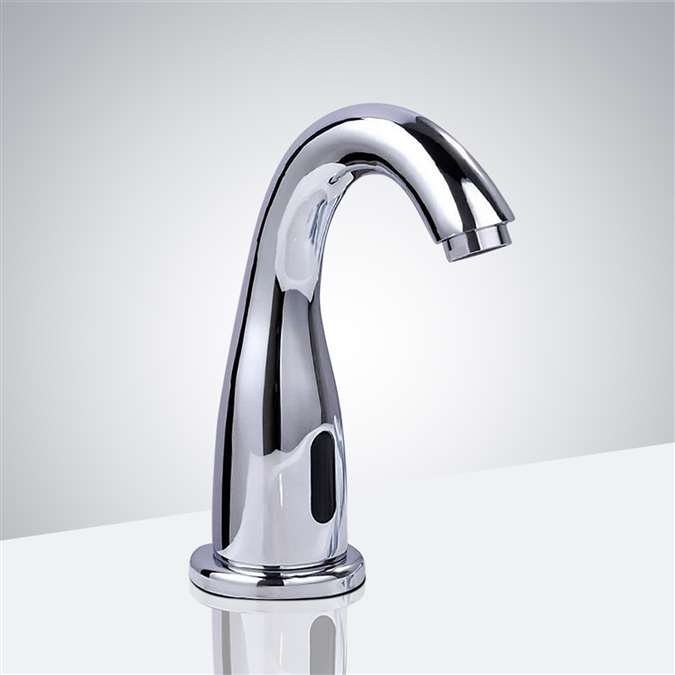

Plato Automatic Commercial Sensor Faucet D514 in Chrome (Available in Oil Rubbed Bronze Finish)

Plato automatic commercial motion sensor faucets for lavatory

Alternative Views:

Retail Price: $619.62

Sale Price: $518.54

You save $101.08!

Price with Selected Options: $518.54

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST514N

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Brushed Nickel

Plato Automatic Commercial Sensor Faucet designed for new and retrofit installations. Comes in Chrome Finish or Oil Rubbed Bronze Finish

Plato Automatic Commercial Sensor Faucet D514 (Available in Oil Rubbed Bronze Finish)

Motion sensor with the touchless operation
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Polished Chrome Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant, commercial sensor faucet.
Can be installed in new or retrofit applications.
Usage: Commercial
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup) Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Comes Complete for easy installation.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V, AC.220V - 50/60Hz
Power Consumption: 0.5MW, <2W
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure: 1P56

Plato Automatic Commercial Sensor Faucet Product Description

The Plato is a motion electronically controlled faucets eliminate the need to touch or turn handles and the temperature and flow rate can be pre-set. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Sensor Activated Faucet Special Features: Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory Low power consumption: 4AA alkaline batteries can be used for 2 years at 200 cycles a day. Convenient to maintain: Built-in strainer prevents sundries from entering the solenoid valve and the strainer is easy to clean. Commercial Motion Sensor Faucet; Engineered for high-use environments with precise activation, controlled water output, and durable continuous-duty construction.

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 SecondsAnti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard

Features

We're available to provide assistance and support for your inquiries!

Featured

Plato^™
Technical FAQs

Commercial infrared touchless faucet with vandal-resistant solid brass construction, adjustable sensing, AC/DC power and coordinated finish options.

✥ Sensor Calibration Procedure? +

Complete sensor commissioning after the basin, countertop and surrounding surfaces are installed. The factory sensing position is approximately 4 to 5 inches and may be adjusted to coordinate with the final lavatory geometry.

◇ Hydraulic Checks During Installation? +

Flush the supply piping before final connection, verify the DN15 inlet and outlet connections and inspect the built-in strainer and 50-mesh particle filter before commissioning the electronic valve.

◯ Flow Rate Verification? +

The standard mesh aerator is specified at approximately 2.2 GPM. If water delivery becomes restricted, inspect the aerator, particle filtration, dynamic inlet pressure and supply connections.

↻ Continuous Water Flow Diagnostics? +

Clean the infrared sensor area, remove reflective objects from the sensing field and inspect the 6-volt magnet-latching solenoid for debris or incomplete seating. Maximum continuous operation is approximately 60 seconds.

⌁ Sensor Detection Range? +

The active infrared neck-mounted sensor uses digital microprocessor control with an adjustable range of approximately 2 to 6 inches. BathSelect also lists a factory reference around 4 to 5 inches.

⌂ Operating Water Pressure? +

BathSelect specifies approximately 10 to 125 PSI in the primary product information. Extended technical data also identifies approximately 1 to 100 PSI working pressure.

⚡ Power Supply Options? +

The Plato sensor system supports four AA alkaline batteries or an AC adapter. Product documentation also identifies AC110V and DC6V operation for new-build and retrofit commercial installations.

⌕ Routine Maintenance Requirements? +

Periodically clean the infrared sensor and aerator, inspect the built-in strainer and 50-mesh filter, check battery condition and verify reliable solenoid opening and complete automatic shutoff.

Chrome

♧

2.2 GPM Standard Aerator

◇

Solid Brass Vandal Resistant

⌁

2–6 Inches Adjustable Sensor

⚙

AC / DC Dual Power Option

◇

250K Cycles Battery Expectancy
