Hospitality BathSelect Automatic Hands Free Commercial Brushed Nickel Finish

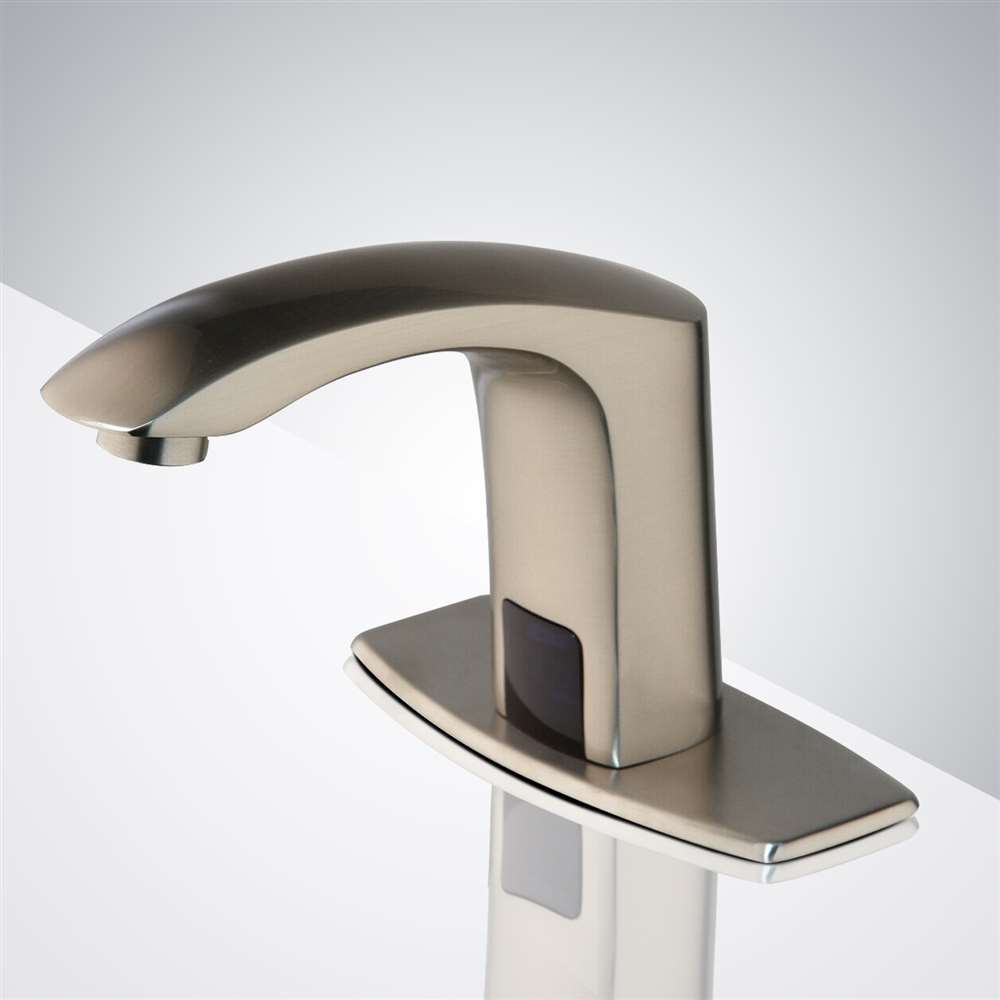

Fontana Commercial Brushed Nickel Sensor Faucet Product Description

This contemporary touchless, sensor activated
bathroom faucet comes with self-setting detection range
is a low maintenance, and has an easy access screen to protect working components from debris and natural waterborne elements.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Motion touchless sensor faucet operation.
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Brushed Nickel Finish
- Available in Polished Chrome, Oil Rubbed Bronze and Gold Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- Fit for residential or commercial use applications.
- ADA Compliant, commercial sensor faucet.
- Hotel Restroom Touchless Faucet can be installed in new or retrofit applications.
- Comes with 5 - Year Manufacturer Warranty
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
|
|
- Faucet Total Height (cm): 12
- Spout Height (cm): 9
- Spout Length (cm): 17
- Mounting Type: Single hole
- Valve Type: Ceramic Valve
- Number of Holes Required for Installation: 1
- Faucet Body Material: Brass
- Faucet Spout Material: Brass
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power: DC.6V
- Flow rate: 0.5GPM (1.9 L/min)
- Detection Zone: Factory set 25cm(based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃
- Degree of protection by enclosure: 1P56
Sensor Faucet water-saving; hygienic; automatically opens and closes
Electronic Faucets - no touch, avoid bacteria mutual infections!
A great addition to public bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
Spout:
Chrome Plated
- Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles
- Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
- Water Temperature Control;
check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
Rod:
N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2†to 6â€
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Fontana Automatic Hands Free Faucet D517
(Touch free faucet, sensor tap, infrared sensor faucet, water saving faucet,infra faucet,sanitary ware, Automatic Faucet)
- 1. Water efficient,
- Hygienic,
- No-touch activation,
- Easy installation Durable,
- Solid DR-brass construction,
- Built-in filter,
- ADA compliant,
- Vandal resistant
- Waterproof components,
- Complies with Food Premises Standard
- Usage: Commercial / Residential
Auto Tap Specifications:
Body: Solid brass with Chrome
Power: i>DC AA Alkaline Battery*4, ii>AC/DC alternately
Working pressure: 0.5~7Bar
Water supply pipe size: DN15(G1/2")
Ambient Tem. Range: 0.1~ 55 Celsius
Sensing distance: adjustable 25cm (default 25cm)
Sensing range setup: Digital
Response time: 0.3 sec (default)
Off Delay time: 1 sec (default)
Pop-up drain: yes
Fresh Battery Life Cycle: 500,000 on/off
Low Battery Indicator: Red Led flash
Weakness of Battery: Red Led on,
CPU off Warranty: one year
Hospitality BathSelect Automatic Hands-Free Commercial Faucet FAQ
Hospitality Water Management, AI Sensor Calibration & Commercial Duty-Cycle Engineering
Designed for hospitality and high-traffic commercial environments, this automatic hands-free faucet integrates intelligent infrared sensing, brass internal components, and programmable shutoff logic to maximize hygiene, conserve water, and ensure dependable long-term operation.
How does the AI-controlled infrared sensor adapt to different sink materials?
The onboard microprocessor continuously analyzes reflected infrared signals and automatically adjusts the sensing threshold to maintain reliable activation across ceramic, stainless steel, stone, and composite lavatories.
How is long-term valve reliability maintained under continuous hospitality use?
The faucet utilizes a water-resistant brass solenoid assembly with protected electromagnetic components designed to withstand high daily activation frequencies while minimizing internal wear.
What engineering features reduce unnecessary water consumption?
Automatic shutoff programming, intelligent hand detection, and optimized valve timing work together to eliminate idle water flow and improve overall fixture efficiency.
Why are dual AC/DC power configurations preferred in hospitality projects?
Dual-power capability allows uninterrupted operation during power interruptions while providing installation flexibility for both new construction and retrofit commercial applications.
|
|
|
|
|
|
|
