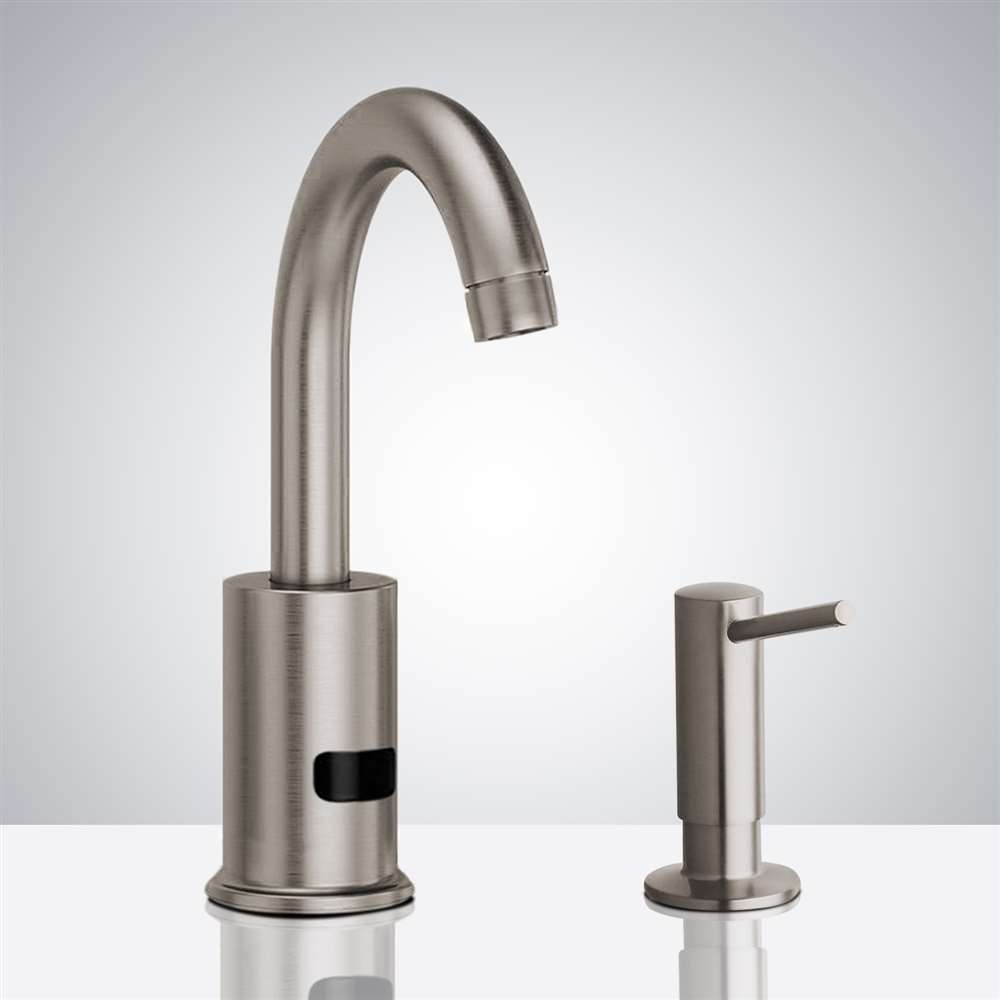

BathSelect Brushed Nickel Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser
Bathselect Brushed Nickel Bathroom sensor motion faucets

Alternative Views:
Retail Price: $781.08
Sale Price: $686.40
You save $94.68!

Price with Selected Options: $686.40




Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-1094BM


Hot & Cold Option:
Click to view another Select Manual Soap Dispenser

Select Manual Soap Dispenser:

Qty:
Description Technical Specs Extended Technical Information


Brushed Gold

Dark Oil Rubbed Bronze

Light Oil Rubbed Bronze

BathSelect Brushed Nickel Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser

Bravat Bronze Infrared Automatic Electronic Commercial Faucet

  • Sensor faucet complete motion detection operation.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Brushed Nickel
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Durable Vandal-Resistant Brass Body;
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.
  • Intelligent: with its micro-computer controlling its action,
  • The faucet will self adjust best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mounted to any sink surface.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Usage: Commercial / Residential



  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V, AC.220V - 50/60Hz
  • Power Consumption: 0.5MW, <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Features


We're available to provide assistance and support for your inquires!

Featured

categories
Touchless Faucets
View more
Touchless Combo
View more
Touchless Soap Dispensers
View more
COMMERCIAL SENSOR LINE

BathSelect™
Technical FAQs

Commercial infrared touchless faucet with solid brass construction, adjustable sensing, AC/DC power and coordinated manual soap dispenser.

✥ Sensor Calibration Procedure? +
Complete sensor commissioning after the basin, countertop and surrounding accessories are installed. The factory sensing reference is approximately 4 to 5 inches and may be adjusted to suit the final basin geometry and surrounding reflective surfaces.
◇ Hydraulic Checks During Installation? +
Flush the supply piping before final connection, confirm the inlet service path is unrestricted, inspect the built-in strainer for debris and verify secure fittings before commissioning the solenoid and infrared control system.
◯ Flow Rate Verification? +
The extended technical information specifies a 2.2 GPM standard mesh aerator. If output becomes restricted, inspect the aerator, particle filter, service connections and available dynamic inlet pressure before servicing the electronic valve.
↻ Continuous Water Flow Diagnostics? +
Clean the infrared sensor window, remove objects from the sensing field and inspect the 6-volt latching solenoid for debris or incomplete seating. The system also incorporates programmable automatic shutoff protection.
⌁ Sensor Detection Range? +
The faucet uses active infrared sensing with a digitally controlled microprocessor. The product documentation specifies an adjustable operating range of approximately 2 to 6 inches, with a factory reference of approximately 25 cm under its standard inductive-board test condition.
⌂ Operating Water Pressure? +
BathSelect lists approximately 10 to 125 PSI within the primary product specifications, while the extended technical data also identifies a 1 to 100 PSI working range. Confirm stable dynamic pressure during final commissioning.
⚡ Power Supply Options? +
The electronic faucet supports battery and AC power configurations. Product documentation specifies DC6V operation and AC capability, while the extended specification references four AA alkaline batteries or an AC adapter.
⌕ Routine Maintenance Requirements? +
Periodically clean the sensor window and aerator, inspect the built-in strainer and 50-mesh particle filter, remove mineral buildup and verify reliable solenoid opening and complete automatic shutoff during scheduled maintenance.
BathSelect Brushed Nickel Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser
Brushed Nickel
♧
2.2 GPM Standard Aerator
◇
Solid Brass Commercial Construction
⌁
Infrared AI Adjustable Detection
⚙
AC / DC Dual Power Option
◇
30 Sec Auto Shutoff

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 4 Write a review.

  3 of 3 people found the following review helpful:

of 5 Easy To Specify Sunday, August 23, 2026
Reviewer: Derrick Madsen from Topeka, KS
Nothing about this model feels unnecessarily complicated, and that can be a real advantage on a commercial project. The brushed-metal appearance is versatile, the deck-mounted arrangement is familiar, and touchless operation gives users an interaction they already understand. I would still make sure the stream lands comfortably within the selected bowl, particularly if the basin is shallow. Beyond that, the understated finish should be easier to live with than highly polished alternatives. It feels like a sensible choice when consistency and practical upkeep matter more than making the faucet a focal point.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Good Purchase Thursday, February 9, 2023
Reviewer: Linda N from Portland, Oregon
we bought this mainly for thebrushed nickel which doesn't rust and easy maintenance. These sensors are hygine and help save water .These faucet also adjusts to the water pressure coming through pipes... Overall great.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Best Sensor Faucets! Wednesday, January 25, 2023
Reviewer: Steve H from Chicago
The brushed nickel touchless Sensor faucet is definitely worth recommending, especially if you are looking for something to install in public /restaurant/cafe. had few of these (about 12) from Bath select installed so far all working perfectly. Was worried that the sensors may experience some delays or issues but after heavy use for over 3 month seems all working perfect.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

5 of 5 All solid brass Sunday, September 2, 2018
Reviewer: Paul N from S. Dakota
Always though sensor faucets would be expensive, but not this one especially with the sale price amazing bought this set at 374

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Good Purchase Wednesday, January 20, 2016
Reviewer: Trent from Oakland
In practical use, this fixture showed stable and reliable operation. The BathSelect Good Purchase (Model BS-1094BM) demonstrated consistent sensor activation and controlled water flow. The solid brass construction supports durability, while the finish maintains its appearance under frequent use.

Installation was straightforward with standard connections, and the internal components allow for easy maintenance access. The sensor response is well-balanced, avoiding false triggers while ensuring user convenience.

BathSelect’s support team provided clear technical guidance during setup and helped streamline the process. Overall, the fixture meets commercial expectations for reliability, hygiene, and long-term performance.
