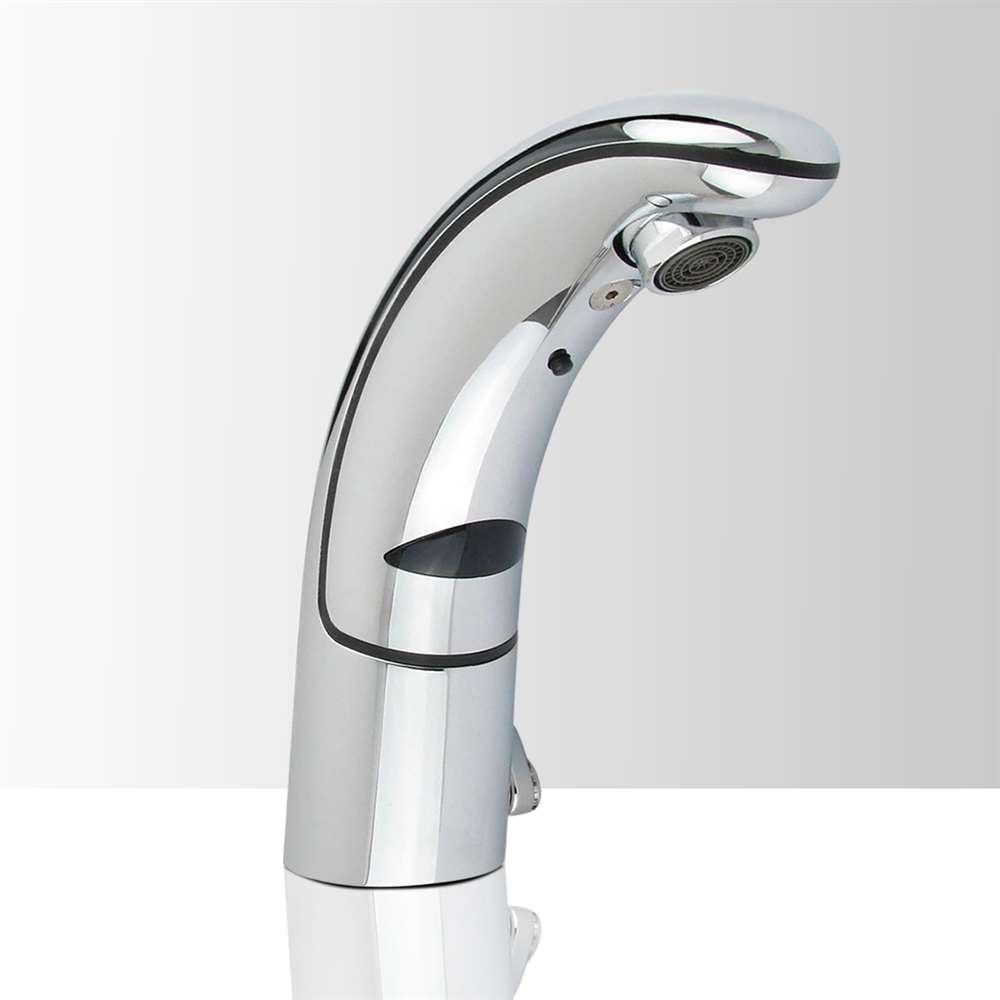

Brio Commercial Automatic Motion Sensor Faucet FAQ
Dual IR Sensing, 0.5 GPM Flow & Self-Adaptive Detection
This commercial sensor faucet combines dual infrared sensing, automatic self-adaptation, a magnetic solenoid valve, 0.5 GPM aerated flow, and single-hole deck mounting.
What advantage do the Brio's dual infrared sensors provide?
The dual-sensor arrangement improves hand-presence detection within the wash zone, while automatic setup allows the electronics to adapt to surrounding conditions. An indicator light also provides visual feedback during sensor operation and commissioning.
How much water does the faucet deliver during normal operation?
The specification sheet lists an aerated flow rate of 0.5 GPM, or approximately 2 L/min. This controlled discharge supports commercial water conservation while the aerated outlet maintains a practical handwashing stream.
Does the faucet require manual sensor-range adjustment during every installation?
Not normally. Automatic self-adapting sensor technology is designed to establish suitable detection behavior for the installed environment, reducing commissioning effort while helping maintain reliable activation around different lavatory conditions.
What countertop dimensions should be checked before mounting the Brio?
The single-hole installation calls for a pre-drilled opening of approximately 1.26–1.38 inches (32–35 mm), with a maximum countertop thickness of about 1.38 inches (35 mm) when no deck plate is used.
