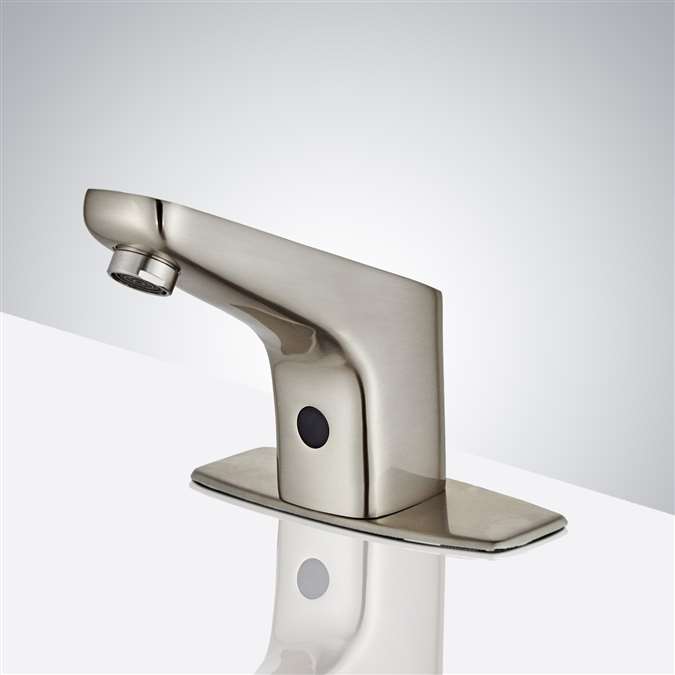

BathSelect Brushed Nickel Commercial Automatic Motion Sensor Faucet

Alternative Views:

Retail Price: $668.29

Sale Price: $625.20

You save $43.09!

Price with Selected Options: $625.20

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST5101-N

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

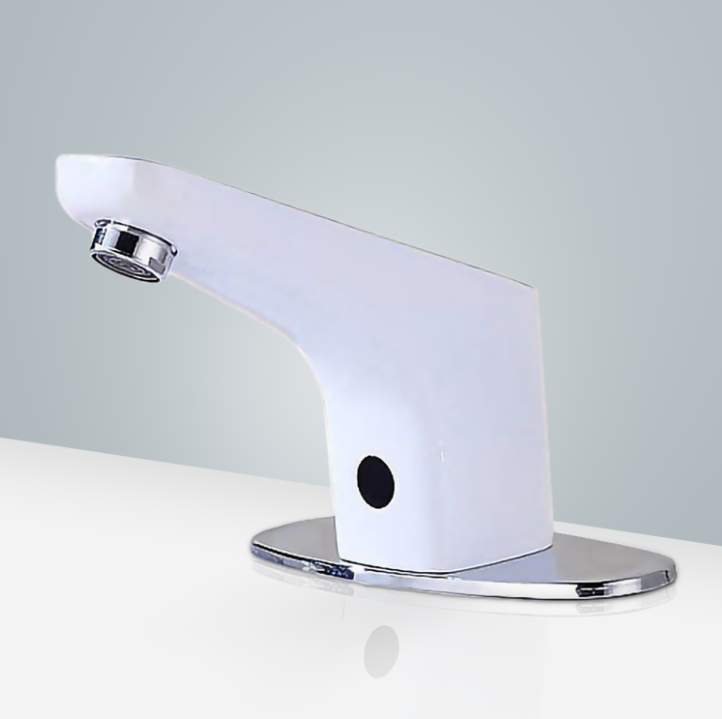

White

Automatic Commercial Hands Free Motion Sensor Faucet

Mirage Commercial Automatic Motion Sensor Faucet B5101

Commercial Automatic Sensor Faucet Product Description

Commercial electronically controlled faucets eliminate the need to touch or turn handles and the temperature and flow rate can be pre-set. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard faucets. Uses 4AAA Alkaline Batteries (purchase separately). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

The finish is Brushed Nickel. Built-in In rared AI Smart-Chip No Water Dripping Design 100% Touch-free operation

Comes Complete for easy installation.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow. Premium Touchless Faucet; Designed for commercial environments with fast-response infrared sensing, controlled water discharge, anti-false triggering, and durable continuous-duty performance.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meaning of the codes is described in the installation instructions.
Convenient to maintain, with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
Battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range, while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Usage: Commercial
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V AC.220V - 50/60Hz
Power Consumption: 0.5MW <2W
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure: 1P56

BathSelect® Manufacturer Warranty Information

--->

Features

BATHSELECT COMMERCIAL SENSOR FAUCET LINE

Commercial Brushed Nickel
Technical FAQs

Commercial infrared touchless faucet with solid brass construction, brushed nickel finish, intelligent sensing, adjustable detection, and electronic valve control.

✥ Sensor Calibration Procedure? +

Complete infrared sensor commissioning after the faucet, basin, countertop, and surrounding accessories are installed. The intelligent microcomputer controller is designed to adapt the sensing field to lavatory color and geometry. Test hand detection at normal operating positions and inspect nearby reflective surfaces if unintended activation occurs. Follow the supplied controller instructions before changing the detection setting.

◇ Hydraulic Checks During Installation? +

Flush the water supply before connecting the faucet. The published specifications identify DN15 inlet and outlet connections. Verify the supplied hoses, mounting hardware, and plumbing fittings before installation. Inspect the built-in strainer to prevent debris from entering the electronic solenoid valve. Confirm secure, leak-free connections during commissioning.

◯ Water Flow Performance Verification? +

Verify consistent water discharge under normal dynamic operating pressure. The product listing does not establish a single confirmed GPM value. Inspect the aerator, service stops, supply connections, and built-in strainer if flow becomes restricted or irregular. Remove accumulated sediment and test the faucet again. Confirm the installed aerator against the project's specified flow requirements.

↻ Continuous Water Flow Diagnostics? +

The automatic faucet is described as shutting off after approximately 30 seconds of continuous operation. If water continues flowing unexpectedly, inspect the sensing field for persistent hand or object detection. Confirm stable controller power and examine the solenoid valve for debris or incomplete closure. Check the diagnostic indicator and verify normal shutoff after maintenance.

⌁ Infrared Sensor Detection Range? +

The faucet incorporates adjustable infrared sensing controlled by an intelligent microcomputer. The product description identifies an approximate 4–5 inch factory setting, while extended specifications reference a 25 cm detection zone. Verify the actual controller configuration before adjustment. Test detection with the installed basin, countertop, and backsplash to minimize unintended activation from nearby surfaces.

⌂ Operating Water Pressure? +

The published technical information identifies an operating-pressure range of 0.05–0.7 MPa, while another description references 10–125 PSI. These ranges are not identical. Verify the permissible working pressure against the supplied installation documentation. Maintain stable dynamic inlet pressure and inspect filtration if water discharge or valve operation becomes inconsistent.

⚡ Power Supply and Diagnostic Indicators? +

The technical specification identifies DC6V operation with an AC220V supply option. The product description references four AAA alkaline batteries. Confirm the actual battery compartment and adapter ratings before installation. The flashing diagnostic indicator provides information about power-up, low-battery conditions, and solenoid function. Refer to the supplied installation instructions for the correct diagnostic codes.

⌕ Routine Maintenance Requirements? +

Periodically clean the infrared sensor window, aerator, and faucet surfaces using nonabrasive materials compatible with the selected finish. Inspect the built-in strainer for sediment and check the electronic valve enclosure for loose connections or moisture. Verify sensor activation, stable water discharge, diagnostic indicator operation, and automatic shutoff during scheduled commercial restroom maintenance.

Brushed Nickel

♧

Auto Shutoff Water Conservation

◇

Solid Brass Durable Construction

⌁

Infrared Sensor Intelligent Detection

⚙

Electronic Valve Automatic Flow Control

◇

Commercial Grade Vandal-Resistant Brass

Average Customer Review: Average Customer Review: 5 of 5

5 of 5 Total Reviews: 3 Write a review.

1 of 1 people found the following review helpful:

Expansion Supported	Thursday, July 9, 2026
Reviewer: Caleb Cole, Specialist from Chesapeake, VA

The dependable performance of the first installation influenced our decision to specify the same model for a second office expansion. Standardizing on one reliable faucet has simplified spare-parts planning, technician training, and long-term maintenance procedures across multiple facilities.

Was this review helpful to you?

3 of 3 people found the following review helpful:

Flow Accuracy	Wednesday, April 22, 2026
Reviewer: Patrick Holloway, Systems Advisor from Charlotte, NC

While upgrading healthcare restroom facilities between 2021 and 2024, we installed 14 BathSelect Automatic Sensor Faucets after older units repeatedly experienced delayed shutoff timing and inconsistent activation sensitivity. As of 2026, the faucets continue to maintain dependable operation.The faucet body remained structurally stable during continuous public usage, while the finish resisted cleaning-related wear effectively. Sensor responsiveness also stayed highly accurate during repeated operation cycles without irregular flow interruption.From a technical maintenance standpoint, infrared timing and internal valve regulation remained highly uniform across all installations. No recurring electronic failures have been observed.

Was this review helpful to you?

1 of 1 people found the following review helpful:

Arrived as promised and exactly as described.	Friday, May 20, 2022
Reviewer: Shirley from Oklahoma

With germas/viruses going around we needed touchless products like this Bathselect Brushed Nickel sensor faucet in our office facility restrooms, we have ordered 10 sets from Bath Select it arrived within a short time the fast delivery was impressive. it does make me feel so much better that they don't have to touch it with dirty hands. No longer worry about germs on the faucet handles. Works great. It's great we were able to find a touchless solution for your office facilities that met our needs and expectations. The Bathselect Brushed Nickel Sensor Faucet was a great choice, providing a hygienic and convenient solution for our staff and visitors. The touchless feature eliminates the need for direct contact with the faucet, reducing the risk of spreading germs. Additionally, the brushed nickel finish adds a modern and stylish touch to our restrooms. overall very satisfied with our decision and purchase; just great touchless technology provided by the Bathselect faucet.

Was this review helpful to you?
