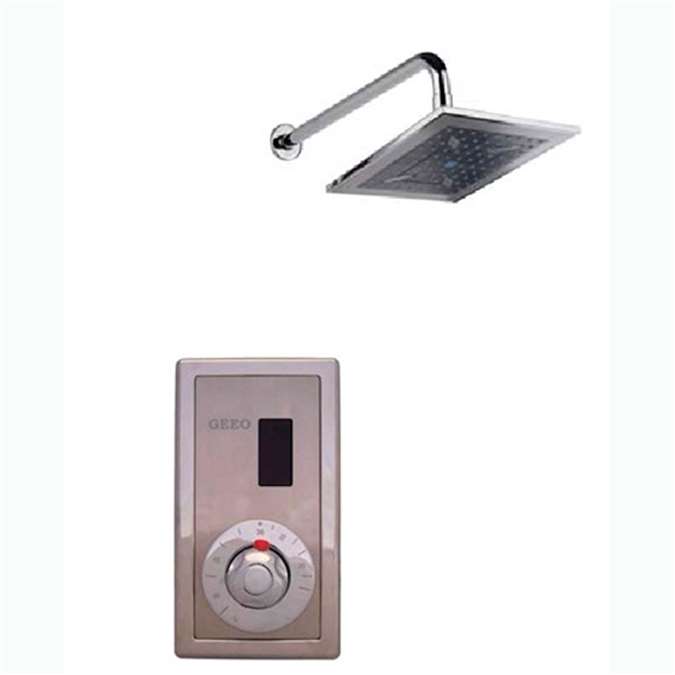

Specifications Sensor controlled automatic shower Water saving sensor program AC/DC dual modes State-of-the-art design for public bathroom Sensor controlled automatic shower (Electronic Shower): controls sensor parts, powered by an internally mounted 6V battery, filters included. Sensor range is adjustable manually. Other sensor settings (sensor range, delay in, delay out and security time according to buyer) are programming by maker. Shower will automatically shut off after being used for more than 2 minutes. Sensor features a low battery level indicator. Touch free electronic shower control: The shower is activated automatically when the user steps within the sensor range Sensor
Shower Advantages:
- Rear inlet.
- Vandal Proof shower heads combine a solid brass construction with clean modern styling.
- Ideal for public shower facilities, including: prisons, sport facilities, swimming pools, hospitals and schools. Enables users to have a shower without touching the shower control, saves water, prevents cross contamination and keeps the showers cleaner, especially ideal for spas, hotels, and care homes.
Shower Specifications:
- Easy to install and retrofit product
- Material: Solid all-brass construction
- 3 products in 1: replaces the mixer shower, the thermostatic mixing valve and operates by an infrared sensor.
- Vandal resistant stopper cup upon request
- Hidden wall mounting screws for security
- State-of-the-art design
- Motion Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Fit for residential or commercial use applications.
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Operates with low and high pressures (0.5 to 7 Bar) 4)
- Ideal operating pressure: 1.0-6.0 bar (15.0-88.0 PSI)
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Complaint
- Can be installed in new or retrofit applications.
- Comes with 1 Year Warranty
|
  |
Sensor controlled Automatic Shower Installation Instructions
Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2" NPT Male
- Water Temperature Control;
check
Options for temperature control sensor faucets - Built-in Pop-Up Drain
- Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor - Microprocessor: Digital, Pug And Play Sensing Range: 2" to 6"
- Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
