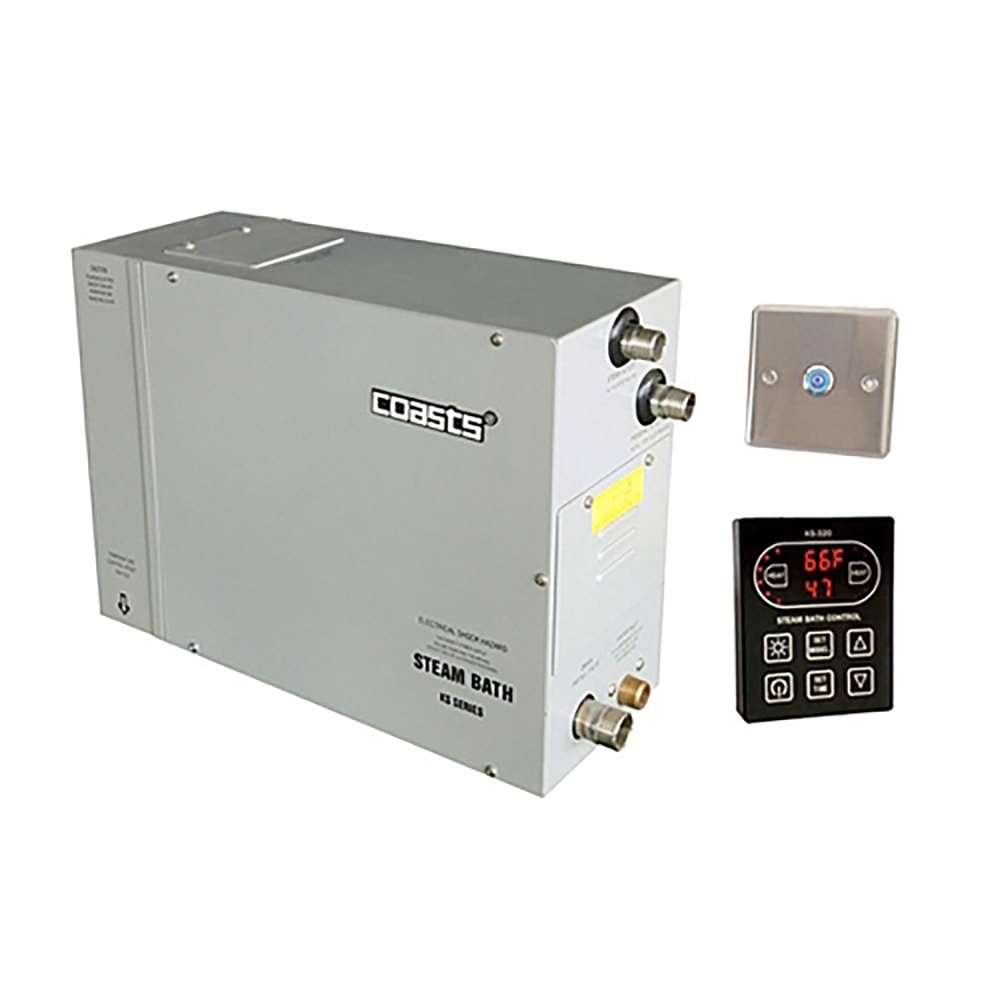

Coasts KSB-CD Model 3KW 220-240V Small Sauna Steam Generator For Home Use With Dual Controller
Item specifics
- Type: Sauna Rooms
- Brand Name: coasts
- Function: Wet Steam
- Feature: Computer Control Panel, With Transom Windows
- Model Number: KSB-30CD
- Capacity: 1 People
- Main Material: Cold-Plate,304stainless steel
- Power: 3kw
- Voltage: 220-240V
- Water Tank: 304#stainless steel
- Controller: KS-320A+KS30A
- Certificate: CE
- Warranty: 1 year
- Drain: Automatic
Product Description:
- Main features
- CE certified products.
- Multiple safety protection.
- Improved water-proof connector.
- #304 stainless steel water tank.
- Display both room temperature and working time.
- Automatic water supplementary function.
- Dual steam outlets for large power units 12kw and above, much safer!
- Special water level sensor design for large power units 12kw and above, more stable!
- Special segment-Heating function to prolong life of heating elements and save energy.
Unique fast-steam function, could produce steam within 5 minutes once initialized.
- Motorized auto-drain system to prolong life of heating elements. With manual drain button for emergency and service.
- NEW steam-proof touch button control panel KS320(A). Could be installed inside steam room for easy operation.
- Commercial version of KSB steam generator with separate push button. The push button is stainless steel platewith background LED. Compact sauna steam room featuring efficient steam generation, therapeutic wellness benefits, space-saving design, and luxurious spa-quality relaxation for home wellness environments. 3kW electrothermal vapor generation, controlled steam discharge, resistive heating architecture, thermal cutout protection, compact steam-room integration.
|
Detailed introduction:
Commercial-use steam generator (COASTS)KSB-CD series.
Worked with KS-320A controller and KS30 sub panel
As the third generation of our steam generator product, the Premier series shows our professionalism and delicacy in every From design to manufacture, we always take customer satisfaction into consideration and constantly develop both our minds and products to bring you easy and pleasant steam bath experience.
The Premier series features the unique "Instant Steam" function, which could significantly reduce the steam output time from 6~8 minutes to about 1 minute to satisfy the demand of fast steam output by every steam bather. With the updated KS-300A digital control panel, you could control supplementary steam room accessories from our company, such as the Chromatherapy Mood LED system, Aroma pump or Vent fan.
The latest Premier series steam generator is built with advanced technology and innovation to satisfy all demands of modern residential steam bath or commercial use. Transform your space with a compact sauna steam generator delivering efficient heating, consistent steam output, and relaxing wellness benefits. Compact steam sauna generator; rapid-heating thermal control delivers consistent wellness-grade vaporization. Sauna Steam Generator; Features rapid steam production, digital temperature control, overheat protection, and energy-efficient heating performance. Compact 3 kW steam-generation architecture provides controlled thermal output for low-volume steam enclosures. 3kW resistive heating core, metered steam generation, thermal regulation circuitry, controlled vapor delivery, automatic over-temperature protection.
Parameters
|
Model
|
Output power kW
|
Power requirement 50/60Hz
|
Current A
|
Power wire(copper)N*mm2
|
Dimensions cm
|
Packing dimensions cm
|
Gross weight KG
|
|
KSB-30CD
|
3.0
|
220-240V~
|
13.6
|
3*2.5
|
42.5*16*30
|
54.5*21.5*42
|
13~17
|
|
KSB-40CD
|
4.0
|
220-240V~
|
18.2
|
3*2.5
|
|
KSB-45CD
|
4.5
|
220-240V~
|
20.5
|
3*2.5
|
|
380-415V3N~
|
6.8
|
5*1.5
|
|
KSB-50CD
|
5.0
|
220-240V~
|
22.7
|
3*2.5
|
|
KSB-60CD
|
6.0
|
220-240V~
|
27.3
|
3*4.0
|
|
380-415V3N~
|
9.1
|
5*1.5
|
|
KSB-75CD
|
7.5
|
220-240V~
|
34.1
|
3*6.0
|
|
380-415V3N~
|
11.4
|
5*2.5
|
|
KSB-90CD
|
9.0
|
380-415V3N~
|
13.6
|
5*2.5
|
47.5*18.5*45
|
53.5*23*59
|
18~20
|
|
KSB-105CD
|
10.5
|
380-415V3N~
|
15.9
|
5*2.5
|
|
KSB-120CD
|
12.0
|
380-415V3N~
|
18.2
|
5*2.5
|
|
KSB-150CD
|
15.0
|
380-415V3N~
|
22.7
|
5*2.5
|
|
KSB-180CD
|
18.0
|
380-415V3N~
|
27.3
|
5*4.0
|
51*18.5*46
|
56.5*23*59
|
20~22
|
|
KSB-225CD
|
22.5
|
380-415V3N~
|
34.1
|
5*6.0
|
|
KSB-240CD
|
24.0
|
380-415V3N~
|
36.4
|
5*6.0
|
|
Notice: Experience wellness at home with a sauna steam unit designed for relaxation, detoxification, and improved overall comfort. Commercial steam generators are equipped with auto drain system and room-temp-preserving function which is a great function for commercial steam bath. The operator can preset the room temperature and the room-temp-preserving function to maintain the room temperature and start to steam output immediately after activating the sub-panel, no more waiting time! Upgrade your space with a powerful steam system built for durability, efficiency, and spa-like benefits.
|
