Charging extra diff for Commercial-use steam generator
Coasts KSB-CD Model 3KW 220-240V Small Sauna Steam Generator For Home Use With Dual Controller

Retail Price $1,268.40
Sale Price: $1,141.56
You save $126.84!



Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-7.5KW220
Qty:

Description Technical Specs Extended Technical Information


Charging extra diff for Commercial-use steam generator

Item specifics

  • Type: Sauna Rooms
  • Brand Name: coasts
  • Function: Wet Steam
  • Feature: Computer Control Panel, With Transom Windows
  • Model Number: KSB-30CD
  • Capacity: 1 People
  • Main Material: Cold-Plate,304stainless steel
  • Power: 7.5 kw
  • Voltage: 220-240V
  • Water Tank: 304#stainless steel
  • Controller: KS-320A+KS30A
  • Certificate: CE
  • Warranty: 2 years
  • Drain: Automatic

Product Description:

  • Main features
  • CE certified products.
  • Multiple safety protection.
  • Improved water-proof connector.
  • #304 stainless steel water tank.
  • Display both room temperature and working time.
  • Automatic water supplementary function.
  • Dual steam outlets for large power units 12kw and above, much safer!
  • Special water level sensor design for large power units 12kw and above, more stable!
  • Special segment-Heating function to prolong life of heating elements and save energy.

    Unique fast-steam function, could produce steam within 5 minutes once initialized.
  • Motorized auto-drain system to prolong life of heating elements. With manual drain button for emergency and service.

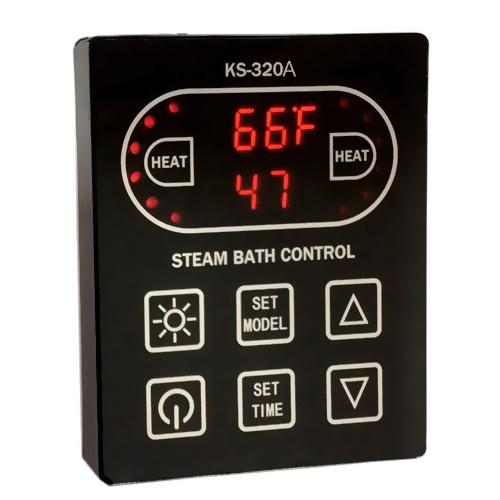

  • NEW steam-proof touch button control panel KS320(A). Could be installed inside steam room for easy operation.
  • Commercial version of KSB steam generator with separate push button. The push button is stainless steel platewith background LED.

Detailed introduction:

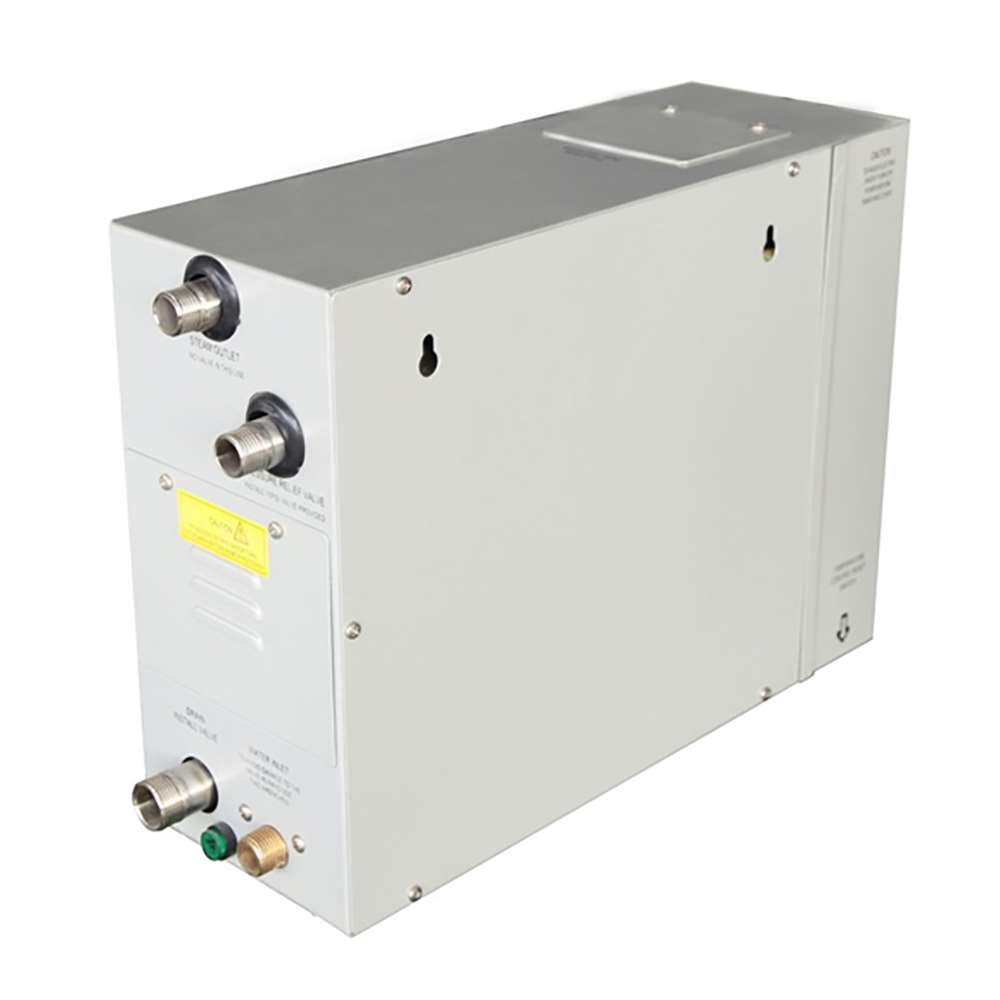

Commercial-use steam generator (COASTS )KSB-CD series.

Worked with KS-320A controller and KS30 sub panel.

As the third generation of our steam generator product, the Premier series shows our professionalism and delicacy in every details. From design to manufacture, we always take customer satisfaction into consideration and constantly develop both our minds and products to bring you easy and pleasant steam bath experience.

The Premier series features the unique "Instant Steam" function, which could significantly reduce the steam output time from 6~8 minutes to about 1 minute to satisfy the demand of fast steam output by every steam bather. With the updated KS-300A digital control panel, you could control supplementary steam room accessories from our company, such as the Chromatherapy Mood LED system, Aroma pump or Vent fan.

The latest Premier series steam generator is built with advanced technology and innovation to satisfy all demands of modern residential steam bath or commercial use.

Parameters

Model Output power kW Power requirement 50/60Hz Current A Power wire(copper) N*mm2 Dimensions cm Packing dimensions cm Gross weight KG
KSB-30CD 3.0 220-240V~ 13.6 3*2.5 42.5*16*30 54.5*21.5*42 13~17
KSB-40CD 4.0 220-240V~ 18.2 3*2.5
KSB-45CD 4.5 220-240V~ 20.5 3*2.5
380-415V3N~ 6.8 5*1.5
KSB-50CD 5.0 220-240V~ 22.7 3*2.5
KSB-60CD 6.0 220-240V~ 27.3 3*4.0
380-415V3N~ 9.1 5*1.5
KSB-75CD 7.5 220-240V~ 34.1 3*6.0
380-415V3N~ 11.4 5*2.5
KSB-90CD 9.0 380-415V3N~ 13.6 5*2.5 47.5*18.5*45 53.5*23*59 18~20
KSB-105CD 10.5 380-415V3N~ 15.9 5*2.5
KSB-120CD 12.0 380-415V3N~ 18.2 5*2.5
KSB-150CD 15.0 380-415V3N~ 22.7 5*2.5
KSB-180CD 18.0 380-415V3N~ 27.3 5*4.0 51*18.5*46 56.5*23*59 20~22
KSB-225CD 22.5 380-415V3N~ 34.1 5*6.0
KSB-240CD 24.0 380-415V3N~ 36.4 5*6.0

Notice: Commercial steam generators are equipped with auto drain system and room-temp-preserving function which is a great function for commercial steam bath. The operator can preset the room temperature and the room-temp-preserving function to maintain the room temperature and start to steam output immediately after activating the sub-panel, no more waiting time!

Features


Commercial Use Steam Generator FAQ

High-Load Steam Output, Electrical Demand Control & Thermal Recovery Performance

This commercial steam generator is designed for higher steam demand, requiring stable electrical input, efficient heat conversion, and controlled vapor recovery during repeated operating cycles.

How does higher kilowatt capacity affect steam production rate?
Increased electrical input allows faster water heating, improving vapor generation speed and recovery under commercial-use demand.
Why is electrical load stability important for steam generator performance?
Stable voltage and properly sized wiring help heating elements operate efficiently without excessive thermal cycling or power loss.
How does thermal recovery influence repeated steam sessions?
Fast thermal recovery allows the tank to restore steam output after demand drops, improving consistency during frequent use.
Why does commercial operation require stronger heat management?
Longer run times increase thermal stress, so controlled heating cycles help protect internal elements and maintain vapor stability.
