How should the BS-BNS101 concealed brass valve body be rough-installed to preserve triple-handle alignment after wall finishing?

Secure the valve body to rigid blocking and establish its depth from the final waterproofed and tiled surface rather than from the unfinished framing. Keep all three control stems parallel and perpendicular to the wall plane so the brushed nickel escutcheons seat evenly without binding or transferring pipe stress into the concealed assembly.

What flushing sequence protects the ceramic valve cores before initial system commissioning?

Flush the hot and cold branches independently before installing or exposing the ceramic valve components to service water. Continue purging until solder particles, pipe scale, sealing compound, and construction debris are removed, then flush the rainfall and hand-shower branches separately to protect the cartridge sealing surfaces and spray outlets.

How should the triple-handle controls be functionally tested during project acceptance?

Cycle each handle repeatedly through its complete operating range while evaluating torque consistency, flow regulation, temperature transition, outlet selection, and shutoff integrity. Each control should index predictably without chatter, sticking, cross-flow, or residual discharge from an inactive rainfall or handheld outlet.

How can installers confirm adequate hydraulic performance for the selected 8-, 10-, 12-, or 16-inch rainfall shower head?

Operate the selected shower head alone at the available dynamic supply pressure and inspect the entire spray face for uniform discharge. Larger head sizes require sufficient flow at operating pressure; edge starvation, intermittent nozzles, or concentrated central spray may indicate restrictive branch piping, debris, or inadequate supply capacity.

What commissioning checks are required for the hand shower and slide-bar assembly?

Verify that the slide bar is anchored to structural backing and remains vertically aligned under repeated adjustment. Pressurize the hand-shower circuit and inspect the hose connections, holder engagement, spray pattern, and full travel range for leakage, kinking, abrasion, or interference with the mixer controls.

How should anti-scald performance be evaluated under changing inlet conditions?

Measure delivered water temperature with a calibrated thermometer while cycling the mixer and introducing controlled changes in hot and cold inlet pressure. Confirm that the mixed-water temperature remains within the project’s approved comfort range and does not exhibit abrupt temperature excursions during normal outlet switching.

What concealed-system pressure testing should be completed before waterproofing and tile closure?

Cap the rainfall and handheld branches and perform the project-specified hydrostatic test while the brass valve body and all joints remain visible. Follow with dynamic testing through both outlets, inspecting the 1/2-inch supply connections, valve interfaces, branch piping, and outlet fittings for seepage, pressure decay, vibration, or pipe movement.

Which preventive-maintenance procedures support long-term reliability of the BS-BNS101 shower system?

Periodically clean the brushed nickel trim with a soft cloth and pH-neutral cleaner, descale the rainfall nozzles and hand-shower face, and inspect the flexible hose for wear. Scheduled servicing should also confirm smooth ceramic valve operation, positive outlet shutoff, stable mixed-water temperature, and secure slide-bar mounting.

BathSelect Brushed Nickel Shower with Triple Handle Mixer and Handshower- Wall Mount Style

brushed nickel shower head body jet handshower set

LED Shower Set

Alternative Views:

Retail Price $2,530.00

Sale Price: $2,277.00

You save $253.00!

Price with Selected Options: $2,277.00

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-BNS101

Shower Arm:
Shower Head Shape:
Shower Head Size:

Qty:

Description

Technical Specs

Extended Technical Information

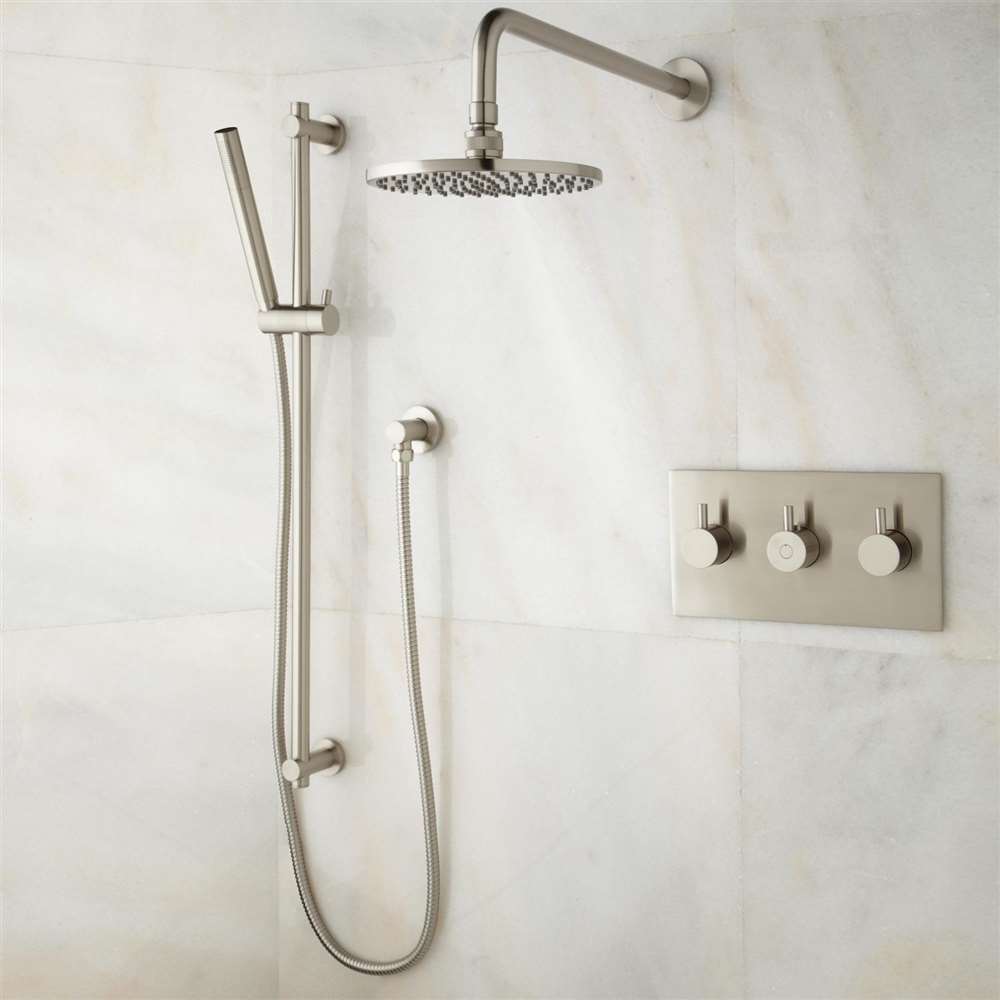

BathSelect Brushed Nickel Shower with Triple Handle Mixer and Handshower- Wall Mount Style

Turn on the fun in your shower just by turning on the water. Solid stainless steel construction with a brushed nickel finish and a ceramic valve core material for long durability that will upgrade your bathroom with a modern and cool look. This Showerhead has a rainfall function where you can experience the true feeling of rain. You can install the rain shower head and handheld showerhead where you like just depending on the position of Concealed water pipe.

BathSelect Brushed Nickel Shower with Triple Handle Mixer and Handshower- Wall Mount Style

Features:

Brand Name: BathSelect

Model Number: BS-BNS101

Type: Shower Set

Finish: Brushed Nickel

Number of Handles: Triple Handle

Mixer Material: Solid Brass

Anti-scald

Threading Fitting: Fit in any standard shower head

Inclusion: Shower arm

Installation: Wall Mount

Design: Modern Stylish Design Stainless steel finish

Showerhead Material: Stainless Steel

Technical Specs

Material: Solid Brass

Finish: Brushed Nickel

Style: Contemporary Rain Showerhead

Handshower: Included with shower hose

Showerhead Width: Available in 8", 10", 12", or 16"

Showerhead Length: Available in 8", 10", 12", or 16"

Feature: Slidebar Included

Showerhead Style: Contemporary Rain Shower

Mount Method: Wall Mount

Connection: 1/2" US standard (included)

Shower Arm: Included

Features

Brushed Nickel Shower Head Body Jet Hand Shower Set FAQ

Rainfall Spray Dynamics, Hand Shower Flexibility & Thermostatic Safety Control

This brushed nickel multi-function shower system combines rainfall delivery, handheld shower versatility, body spray performance, and thermostatic temperature regulation for balanced hydraulic operation.

How does thermostatic safety control reduce temperature fluctuations?

The thermostatic cartridge continuously adjusts mixed-water proportions, helping maintain a stable outlet temperature despite inlet pressure variations.

Why is rainfall nozzle spacing important for spray consistency?

Uniform nozzle placement distributes water evenly across the shower face, reducing weak spray zones and improving overall rainfall coverage.

How does the hand shower hose maintain unrestricted water flow?

A flexible pressure-rated hose minimizes flow restriction during movement, allowing consistent discharge throughout the handheld spray range.

How do engineered body spray outlets improve hydraulic efficiency?

Optimized outlet geometry reduces localized pressure loss, helping each body spray deliver consistent flow while operating with the main shower functions.

Average Customer Review: Average Customer Review: 4 of 5

4 of 5 Total Reviews: 4 Write a review.

1 of 1 people found the following review helpful:

Late Yet Lovely	August 8, 2026
Reviewer: Claire Thornton from Indianapolis, IN

My email received a slow response, and when the reply finally arrived it didn't completely answer the original question. Another message was needed before everything was clear. The shower system itself deserves the positive half of this review. Combining the overhead shower, body jets and handheld option provides plenty of flexibility, and the brushed nickel finish ties the different components together with a clean, coordinated look.

Was this review helpful to you?

1 of 1 people found the following review helpful:

A Good Solid Product	March 16, 2021
Reviewer: Shelley from Connecticut

Well constructed. Easy installation. Looks great. Modern and sleep. Beautiful water flow.The shower system was exactly as described, and had no problem with my installation. The shower head has a perfect distribution with its spray and works excellent with my home's water pressure.

Was this review helpful to you?

1 of 1 people found the following review helpful:

A Good Solid Product	March 20, 2018
Reviewer: Shelley from Connecticut

Was this review helpful to you?

1 of 1 people found the following review helpful:

Poor Support Overcome	June 13, 2003
Reviewer: Claire Richardson from Davenport, IA

I spent more time than expected chasing an update on this order. A promised response didn't come when expected, and I eventually had to initiate another conversation to find out what was happening. Once the system was installed, there was much less to complain about. Between the overhead shower, body jets and hand shower, there are plenty of options for everyday use, and the brushed nickel finish ties everything together nicely.

Was this review helpful to you?
