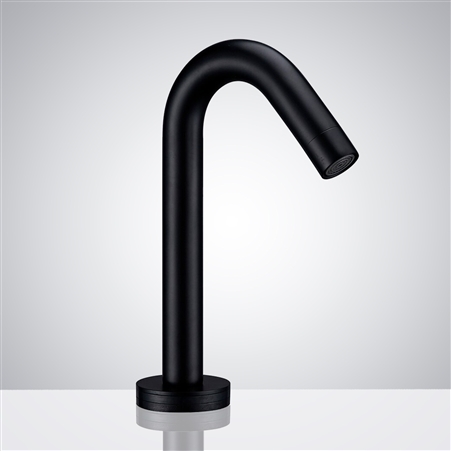

Top Mount Motion Detector Faucet

Top Mount Motion Detector Faucet

The finish is dark oil-rubbed bronze, Built-in Infrared AI Smart-Chip, No Water Dripping Design, and Touch-free operation.

Comes Complete for easy installation.

Quick Details

• Model Number: BS1226DP
• Brand Name: BathSelect®
• Surface Finish: Dark Oil Rubbed Bronze
• Feature: Sense Faucets, Electric Faucets
• Surface Treatment: Polished
• Faucet Mount: Single Hole
• Installation Type: Deck Mount
• Number of Handle: None
• Style: Contemporary
• Valve Core Material: Solenoid Valve
• Quality Management: ISO9001
• Certificate: CE & RoHS
• Material of Faucet: Solid Brass
• Sensor Program: Multi-function Customizable
• Power Supply: DC6V/AC220V/Dual Modes
• Solenoid Valve: Brass
• Filter Screen: Built-in
• Sensor Components: Waterproof
• Suitable Places: High traffic & public toilet basin
• Usage: Commercial
• Ideal for : commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.
• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power: DC.6V
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 ? / 33.8 -113 °F
• Degree of protection by enclosure: 1P56

Sensor Activated Faucet Special Features:

• Durable Vandal-Resistant Brass Body; Ideal for commercial high-use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
• The meanings of the codes are described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Compliant
• The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
• This faucet can be used for Commercial
