The Touchless Basin Automatic Commercial Sensor Faucet | Installation

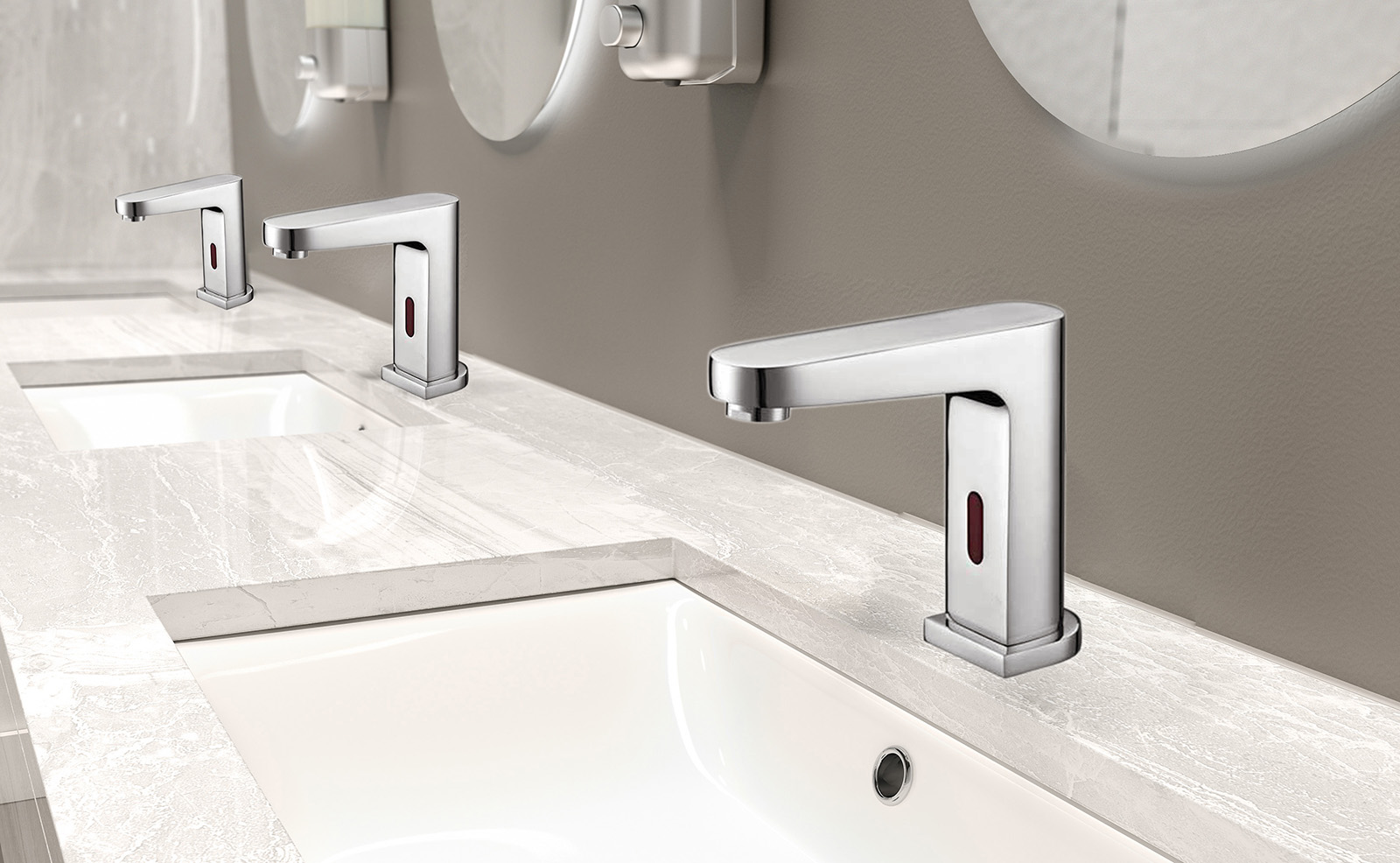

Elèna Touchless Basin Automatic Commercial Sensor Faucet

A simply designed faucet that supports a range of solid features - that's what the Elena Touchless Sensor Faucet is all about. This contemporary styled faucet comes in four different finishes of Chrome, Gold, Brush, and Nickle so whatever your bathroom's design maybe, you'll definitely find one that will complement your tastes and interiors. The Elena Motion Faucet also comes with state of the art sensors that assures proper function all the time. The faucet is powered by batteries powerful enough to provide you with over 100,000 washes ensuring that you don't need to worry about replacements any time soon. Because this faucet operates on motion sensors, there is no need to touch the faucet whilst washing, thereby eliminating the possibility of germs and bacteria transfers, thus keeping you, your family, and your visitors safe from illnesses and diseases. Perfect for large homes and establishments, the Elena Touchless Sensor Faucet is definitely one purchase well-worth considering. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Elèna Touchless Basin Automatic Commercial Sensor Faucet Elèna Touchless Basin Automatic Commercial Sensor Faucet

Elèna Touchless Basin Automatic Motion Faucet Details

Type Sensor Faucet
Model Number BST58061SF
Surface Treatment Polished
Number of Handle 0
Power supply DC,AC,AC+DC
Surface Finishes Chrome,Brush,Gold,Nickle
Surface Finish Chrome
Faucet Mount Single Hole
Style Contemporary
Sensor Field 5-30 cm Adjustable
Battery Lifespan 108000 Flushes
Brand Name FontanaSensorFaucets®
Feature Automatic Faucet Control
Installation Type Deck Mount
Valve Core Material Plastic


Features

  1. Solid brass
  2. Automatic turn On/Off
  3. Self-contained design
  4. Plastic mixing valve built-in
  5. Hygienic and water conservation
  6. Elect and battery powered options included
  7. Suitable for commercial and public bathroom/kitchen
  8. Deck mount design one piece infrared sensor basin faucet
  9. The sensor is self-adjusting to its installation environment when wired in
  10. The flow rate is 2.2 GPM
  11. Usage: Commercial / Residential
  12. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Power Supply DC : 6V (4 x AA alkaline batteries)
AC:220V-240V/50Hz or AC110V/60Hz
Power Consumption Static≤0.3mW;Active≤3W
Battery life 108000 flushes (4 x AA alkaline batteries)
Sensor Field 05-35cm (adjustable)
Water Pressure 0.05~0.8MPa
Ambient temperature 0~55°C
Working life 350000~400000 times
Sensor time <1 Sec
Closing time <2 Sec
Low voltage indication 3.9V The light will flash twice each two seconds)
Self shut off time 65-70 Sec (Non stop flushing)

Elèna Touchless Basin Automatic Commercial Sensor Faucet
Elèna Touchless Basin Automatic Commercial Sensor FaucetElèna Touchless Basin Automatic Commercial Sensor Faucet
BathSelect® Manufacturer Warranty Information

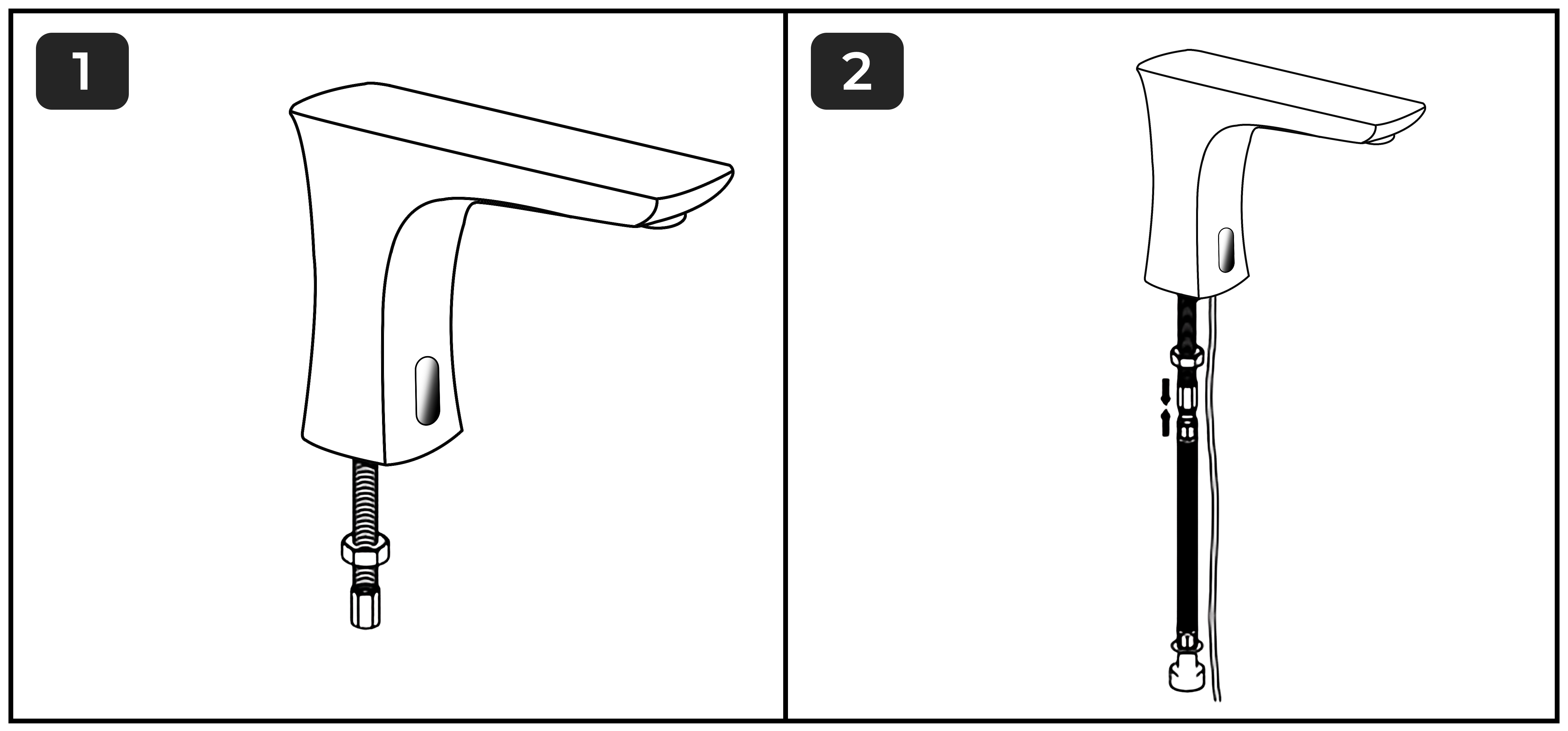

1) Position the base plate into the bottom of the tap(Ensure rubber O-ring is in place)
2) Screw the flexi hose into the bottom of the threaded tube, hand tighten only.

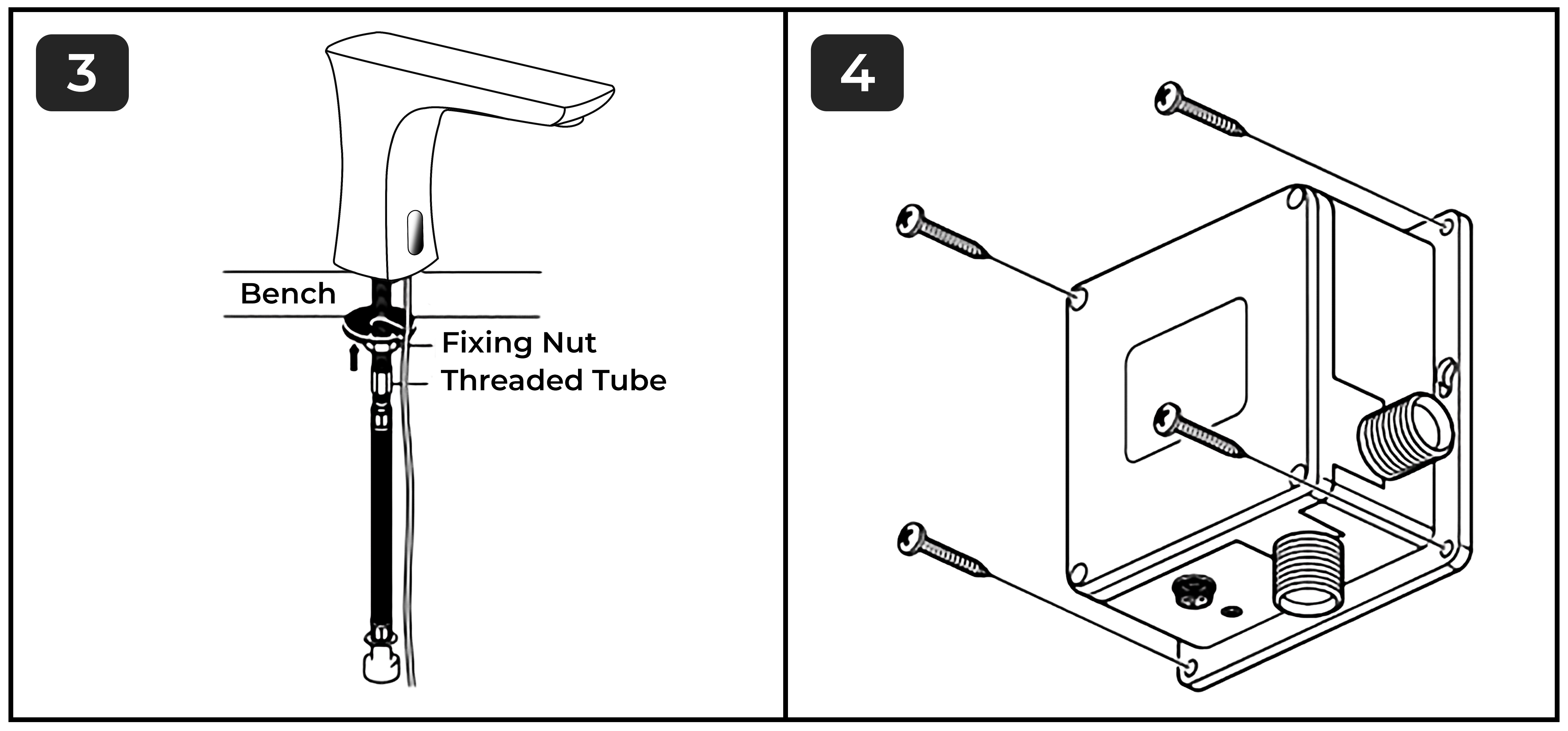

3) Tighten the fixing nut to secure the tap to benchtop(do not over tighten as this may damage benchtop), Do not tighten the threaded tube.
4) Screw control box in a suitable position under the basin making sure flexi hose and control cable can reach.

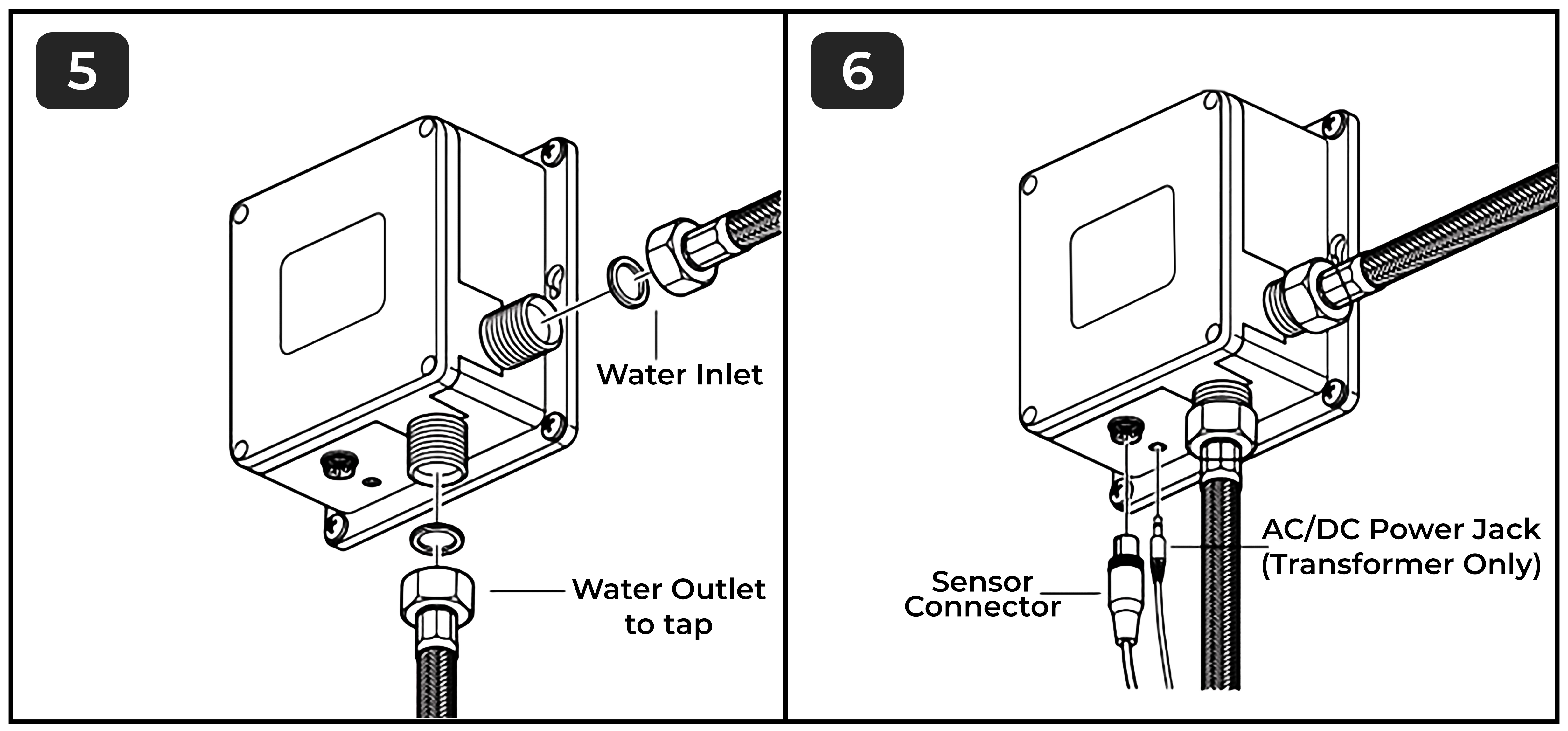

5) Make sure that the rubber washers are in place in the flexihoses.
6) Hold the plug not the wire to connect and disconnect.
