The Electrical Sensor Commercial Sink Basin Faucet|Installation

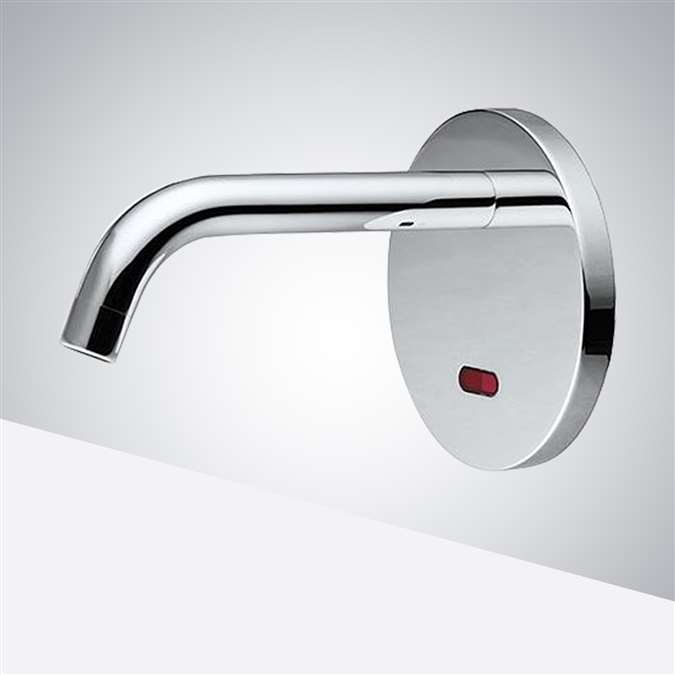

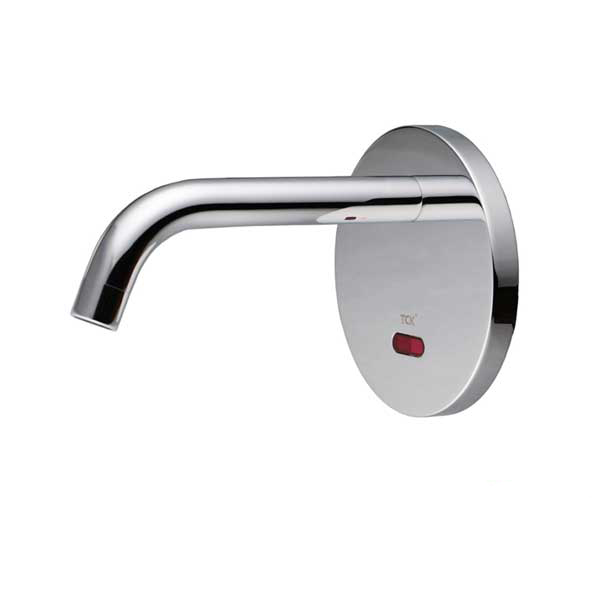

Electrical Sensor Sink Basin Tap
ur electrical sensor sink basin wall mount tap is specially designed for commercial use, but it can be a great asset in your home as well. It is hygienic - no contact between the dirty hands and the handle, no germ contamination, therefore no possibility of disease transfer. There is no risk to forget it running and this faucet will never drip, in the long run this will bring great water cost saving. The sensor range of action can be adjusted to best suit your needs between 5 and 30 cm. There are many choices of Finish: chrome, gold, or brushed nickel. Made of the best materials, it comes with a 1 year warranty. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Motion Faucet specifics
|
Type
|
Basin Faucets
|
|
Model Number
|
BST5061SB
|
|
Surface Treatment
|
Polished
|
|
Number of Handle
|
0
|
|
Chrome Plating
|
24/48 Hours Salt Spray
|
|
Power Supply
|
DC,AC,AC+DC
|
|
Surface Finishes
|
Chrome,Gold,Brush,Nickle
|
|
Surface Finish
|
Chrome
|
|
Faucet Mount
|
Single Hole
|
|
Style
|
Contemporary
|
|
Approval
|
CE,WRAS,CUPC,ROHS,WATERMARK
|
|
Battery Lifespan
|
108000 Flushes
|
|
Brand Name
|
Fontana Sensor Faucets
|
|
Feature
|
Sensor Faucets, Thermostatic Faucets, Electric Faucets, 2014 Electrical Sensor Kitchen Sink Basin Tap
|
|
Installation Type
|
Wall Mount
|
|
Valve Core Material
|
Brass
|
|
Sensor Field
|
5-30 cm Adjustable (1.96"-11.81")
|
|
Flow Rate
|
2.2 GPM
|
|
|
Specifications
- Self contained design
- Cupc,Wras,Nsf,Watermark,Ce
Electrical Sensor Kitchen Sink Basin Tap
- Self contained design
- Ceramic mixing valve built-in
- Wall mount design one piece infrared sensor basin faucet
- The sensor is self-adjusting to its installation environment when wired in
- Mains and battery powered options included
- Solid brass construction
- Hygienic and water conservation
|
Technical Information
|
Power Supply
|
DC:6V(4 x AA alkaline batteries)
AC:220V-240V/50Hz or AC110V/60Hz
|
|
Power Consumption
|
Static≤0.3mW;Active≤3W
|
|
Battery life
|
108000 flushes(4 x AA alkaline batteries)
|
|
Sensor Field
|
5-30cm (adjustable)
|
|
Water Pressure
|
0.05~0.8MPa
|
|
Ambient temperature
|
0~55°C
|
|
Working life
|
350000~400000 times
|
|
Sensor time
|
<1 Sec
|
|
Closing time
|
<2 Sec
|
|
Low voltage indication
|
3.9V(The light will flash twice each two seconds)
|
|
Self shut off time
|
65-70 Sec (Non stop flushing)
|
|
