Hospitality Bathroom Conto Commercial Design Automatic Hands Free Faucet Gold Finish

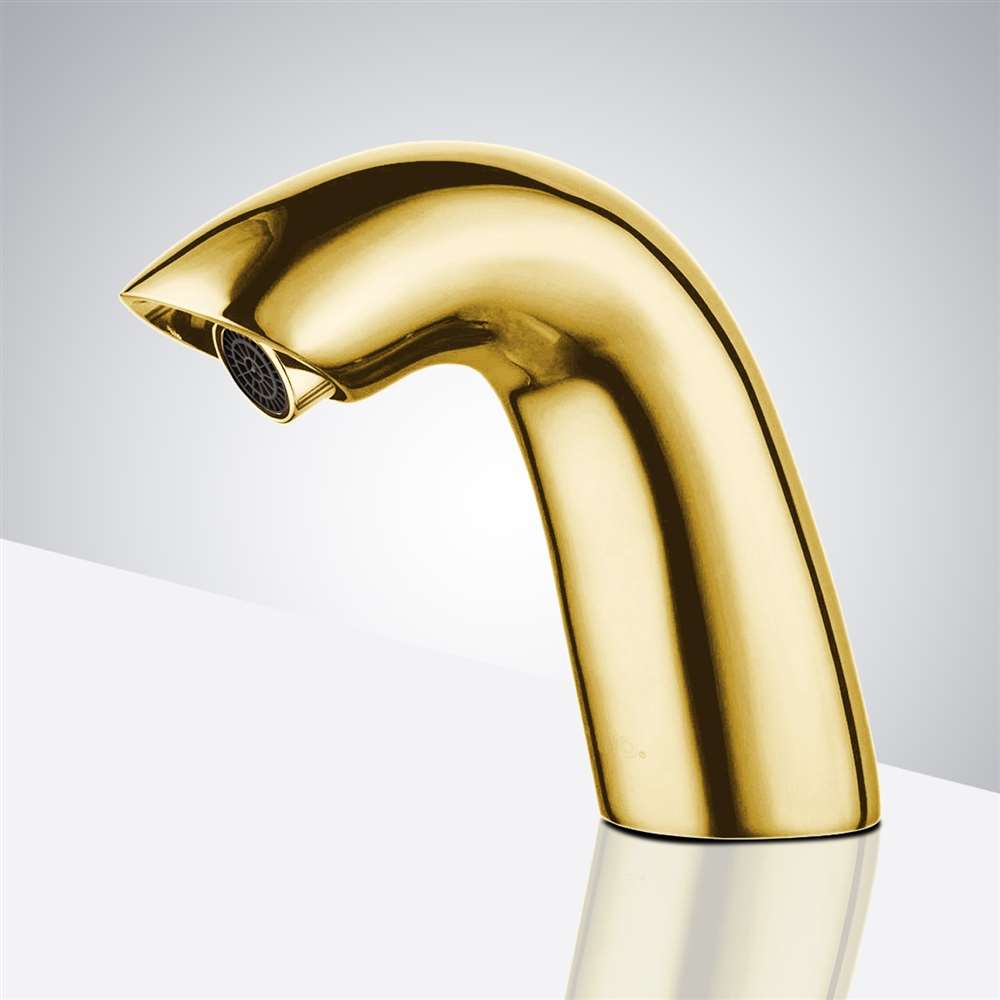

Conto Commercial Sensor Faucet in Gold Finish
|
The Conto Commercial
Bathroom sensor faucets an eye catching design which is both functional and stylish; the Sensor Faucet has been developed with ease in mind. The Conto motion faucet is anti-erosion, anti-abrasion and high strength. Improve hand washing compliance, and minimize waste of water, by using BathSelect touchless bathroom automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!
Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
Sensor faucet
- Fit for residential or commercial use applications.
- Motion touchless sensor operation
- Sensitive Sensor with Infrared AI Smart-Chip
- The factory is set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Gold Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Sensor faucet comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant
- Hotel Restroom Touchless Faucet can be installed in new or retrofit applications.
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
|
|
Sensor Activated Faucet Special Features:
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mount on any sink surface.
- ADA Compliant
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Technical Details of Conto Automatic Hands Free Faucet Gold Finish
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Detection Zone:
Factory set 25cm (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃
-
Degree of protection by enclosure:
1P56

Sensor Faucet water-saving; hygienic; automatically opens and closes
Hands Free - no touch, avoid contamination, cross infection!!
A must in, restrooms, hotels, restaurants, public places, government facilities...!
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
- Water Temperature Control;
- check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Senso
- Microprocessor: Digital, Pug And Play Sensing Range: 2†to 6â€
- Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Electronic Sensor Faucet Product Description
- Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
- Battery: 4 x 'AA' size cells
- Operational water pressure range: 0.05 - 0.6MPa
- US standard water supply pipe size: DN15 (G1/2")
- Ambient temperature range: 0.1 - 45ºC
- Sensing distance: 25cm
- Time delay: 0.5 seconds
- Operation duration: power will automatically cut off after continuous use for 60 seconds
- Pop-up drain: Not Included
- Color: Gold Tone Finish
Sensor Tap Advantage:
- Conserves water
- Saves energy during water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- ADA complaint Ideal for use by disabled people
- Vandal resistant
- Waterproof Components
Installation Manual For Conto Automatic Hands Free Faucet Gold Metallic Finish
Options for temperature control sensor faucets
Hospitality Conto Commercial Design Automatic Hands Free Faucet Gold FAQ
High-Traffic Sensor Analytics, Gold Finish Durability & Commercial Water Optimization
This hospitality-grade faucet is engineered for continuous operation, touchless hygiene, and stable water management in demanding public environments. :contentReference[oaicite:0]{index=0}
How does the sensor system maintain activation accuracy during continuous guest turnover?
The controller continuously evaluates reflected infrared signals and filters environmental noise to maintain reliable detection performance. :contentReference[oaicite:1]{index=1} What engineering factors influence sensor faucet response consistency?
Emitter stability, receiver sensitivity, and signal-processing algorithms collectively determine activation precision. How does gold plating contribute to long-term commercial durability?
Protective metallic layers improve resistance to corrosion, cleaning chemicals, and moisture exposure. Why is automatic shutoff important in hospitality installations?
Automatic shutoff minimizes unnecessary water consumption while improving operational efficiency. :contentReference[oaicite:2]{index=2}
|
|
|
|
|
|
|
