Healthcare Handwashing Begins With the Clinical Use Case

A patient-room handwashing station, public lobby restroom, staff toilet room, examination area and surgical scrub location do not have identical requirements. Before selecting a faucet or dispenser, the project team must define who will use the station, when soap-and-water washing is required, the applicable infection-prevention policy and how the fixture interacts with the facility water-management program.

The Centers for Disease Control and Prevention states that alcohol-based hand sanitizer is preferred in most routine clinical situations when hands are not visibly soiled, while soap and water remain necessary in defined circumstances. Accordingly, sink placement and quantity should support the healthcare facility’s approved hand-hygiene program rather than substitute for it.

Clinical HandwashingApplication Review • Controlled Operation →

Soap DeliveryCompatible Product • Controlled Dose →

Accessible UseReach • Clearance • Simple Operation →

Coordinated StationsFaucet • Soap • Basin • Accessories →

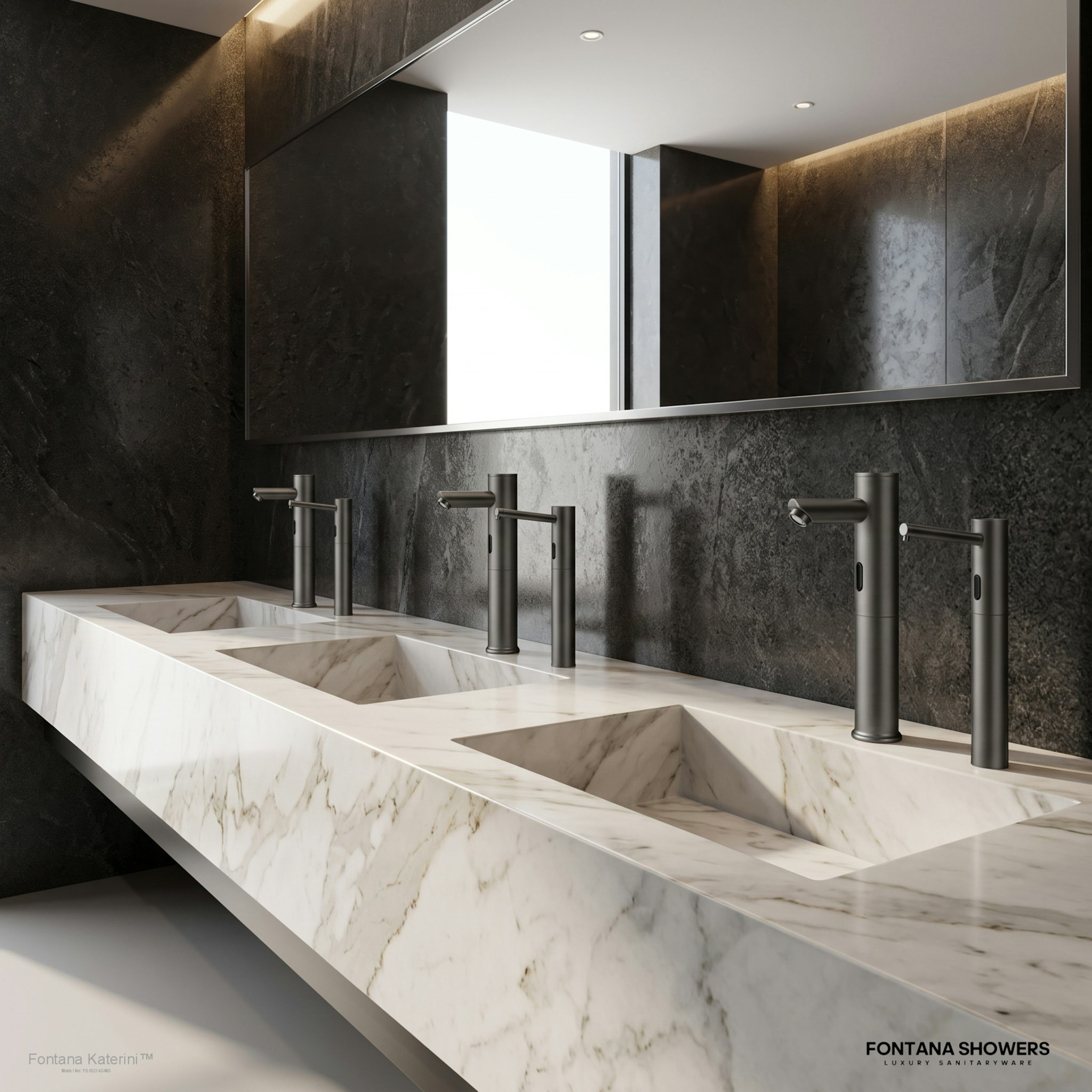

Coordinate the Faucet, Outlet, Basin and Soap Dispenser

Healthcare handwashing performance depends on the complete station. Faucet reach, water trajectory, outlet type, basin depth, drain location and soap-dispenser position must be reviewed together to support effective use and limit avoidable splash. Product selections should be approved by the appropriate design, engineering, infection-prevention and facility stakeholders.

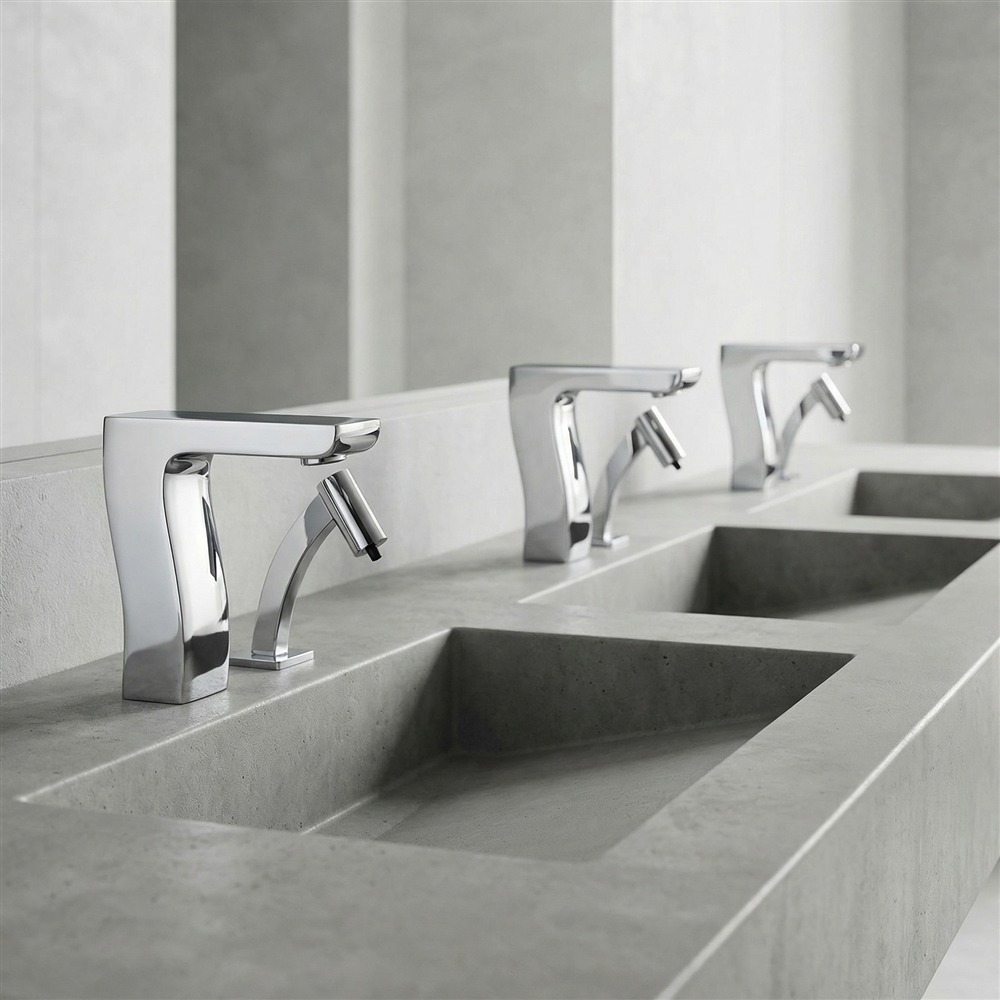

Touchless

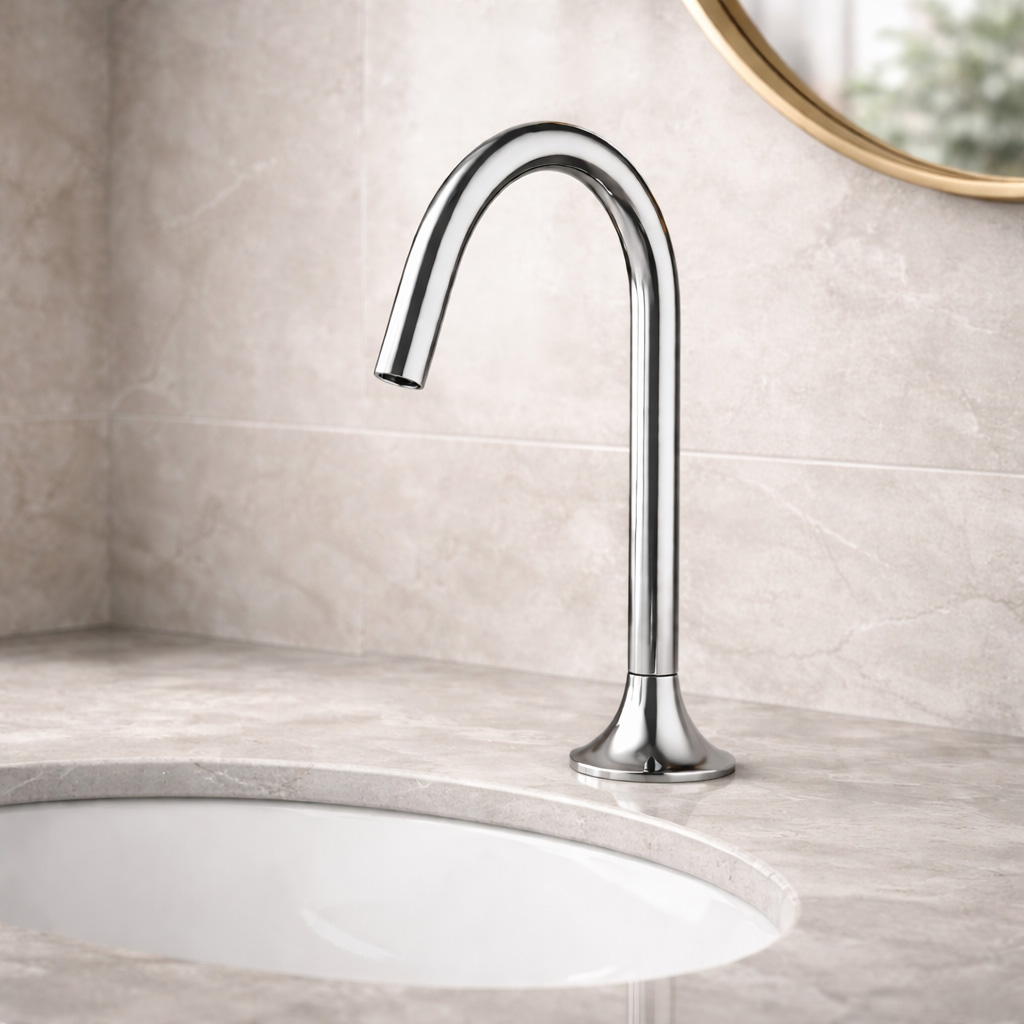

Faucets & Dispenser Deck-Mount

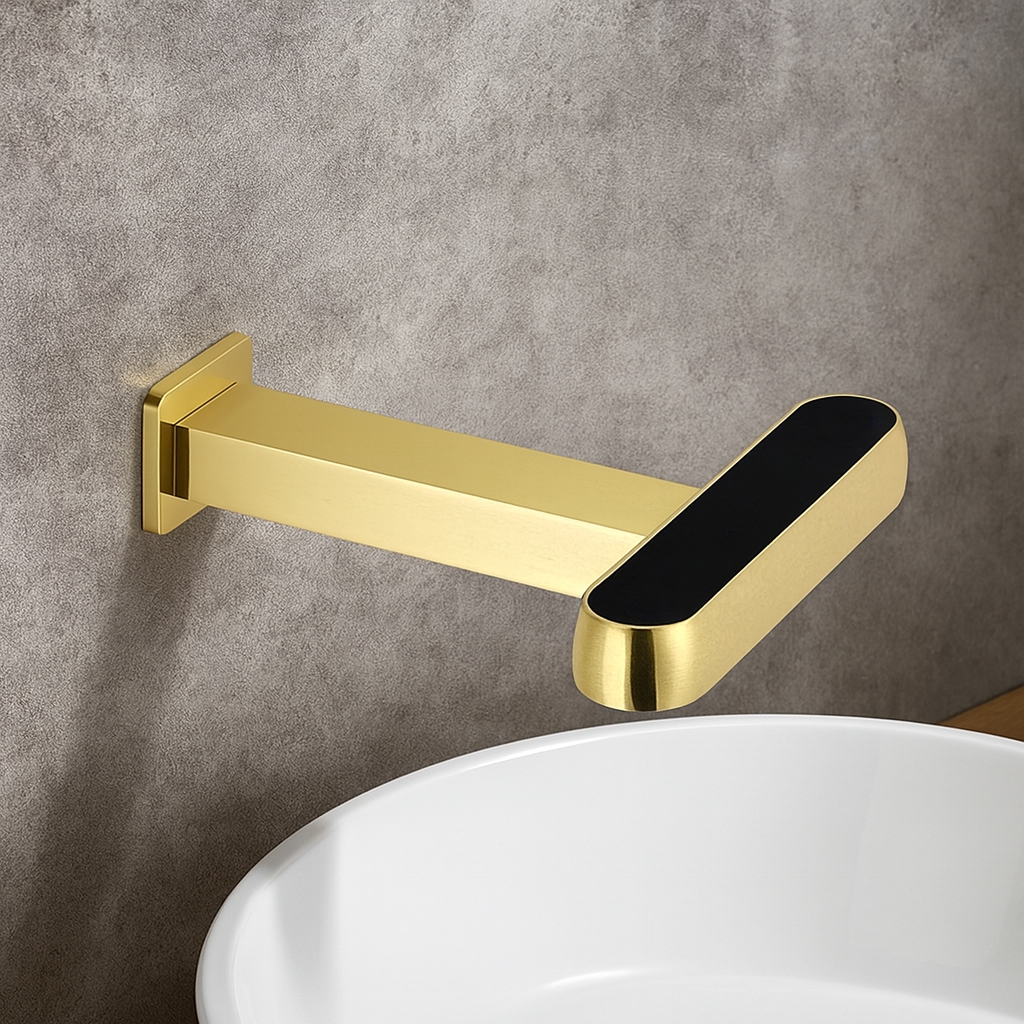

Sensor Faucets Wall-Mount

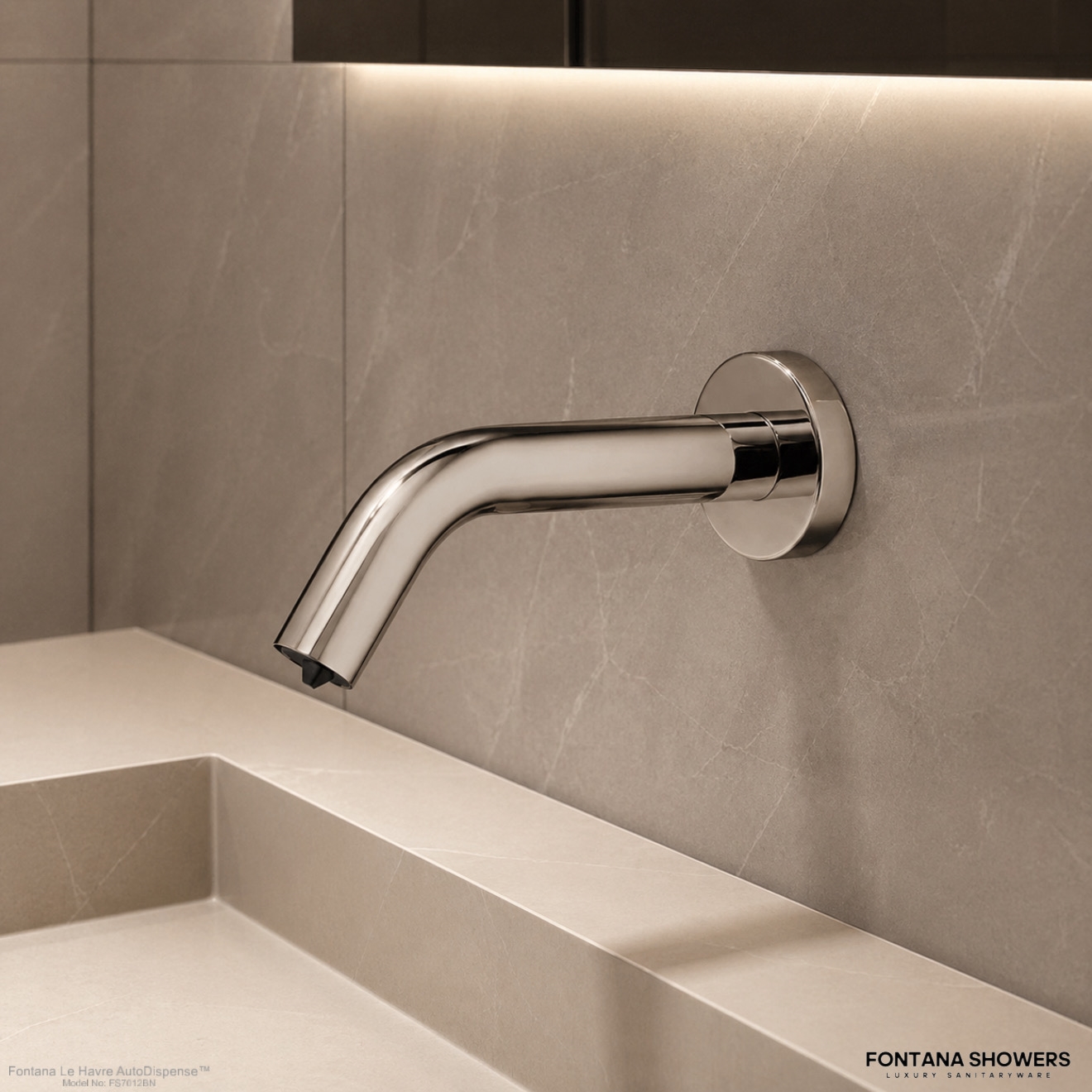

Faucets Automatic Soap

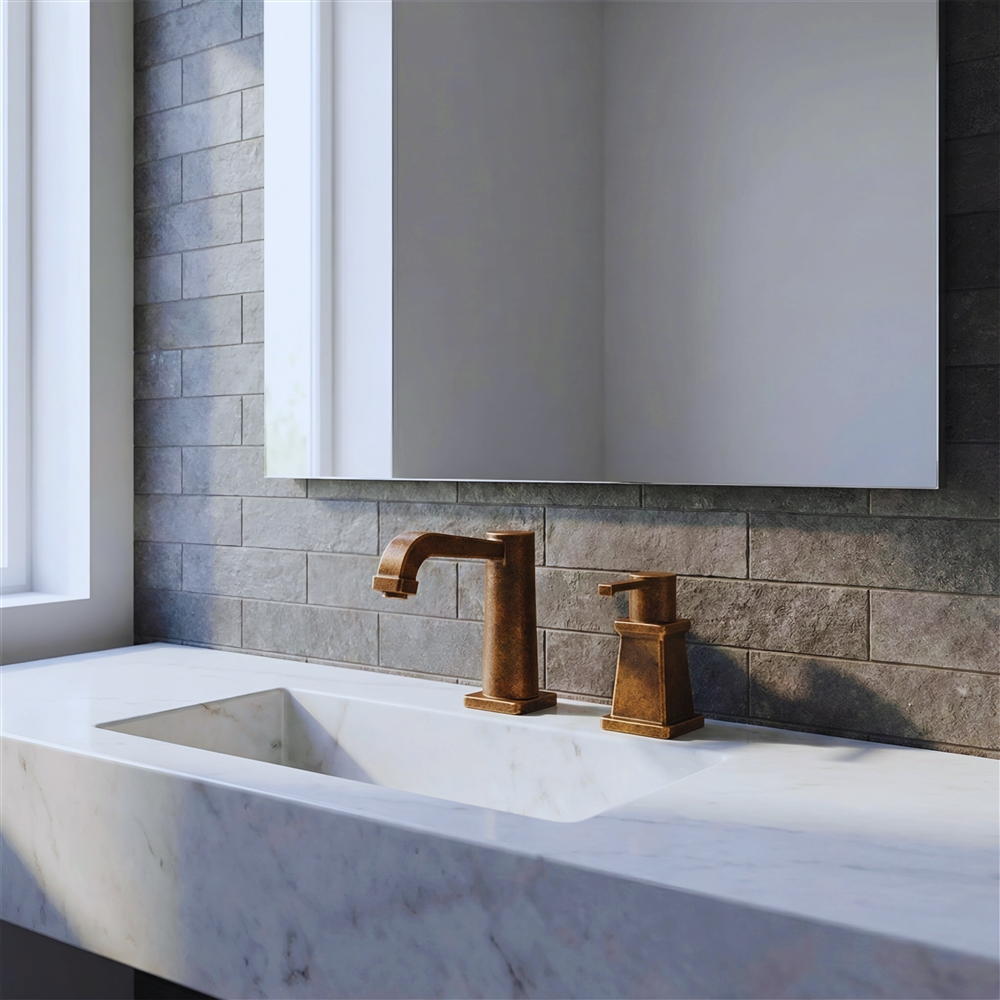

Dispensers Basin
Fixtures

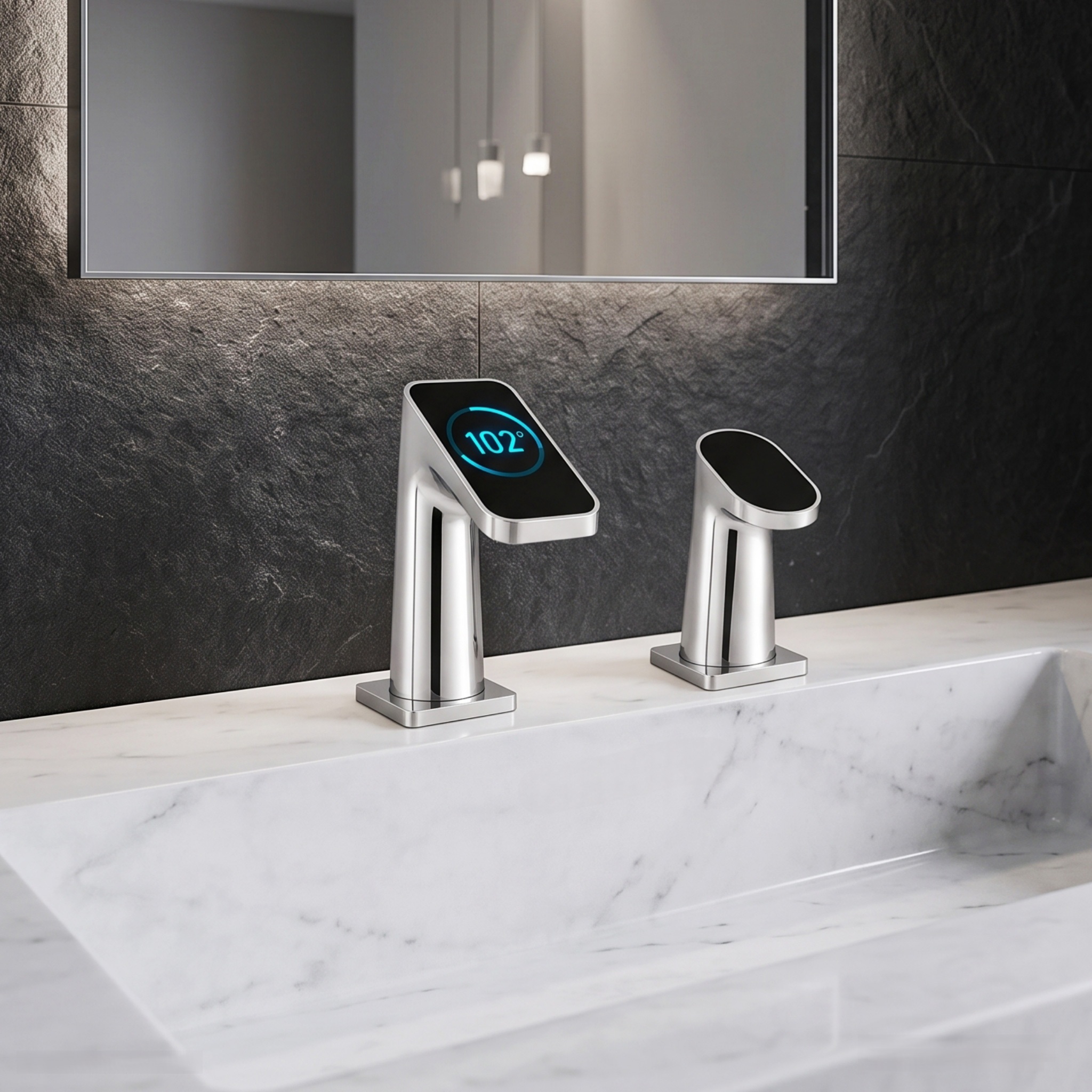

Hands-Free Operation Is One Design Decision, Not the Entire Infection-Control Strategy

Touchless faucets can eliminate the need to grasp a faucet control and provide repeatable automatic shutoff. They must still be assessed for the specific healthcare application. Sensor reliability, maximum runtime, mixing configuration, internal water volume, service components and the facility’s flushing and water-management procedures all affect long-term performance.

The EPA advises medical and senior-care facilities to consider facility-specific health and safety needs before selecting water-efficient or automatic faucets. Its guidance notes that laminar flow devices may be preferred over aerators in some healthcare applications because they do not inject air into the stream. This is an application decision for the healthcare team, not a universal claim for every sink.

Before approval, a full-size mock-up should confirm activation, hand position, flow trajectory and splash behavior. The sensor must respond consistently without unintended activation from the basin, drain, reflective finish or nearby movement.

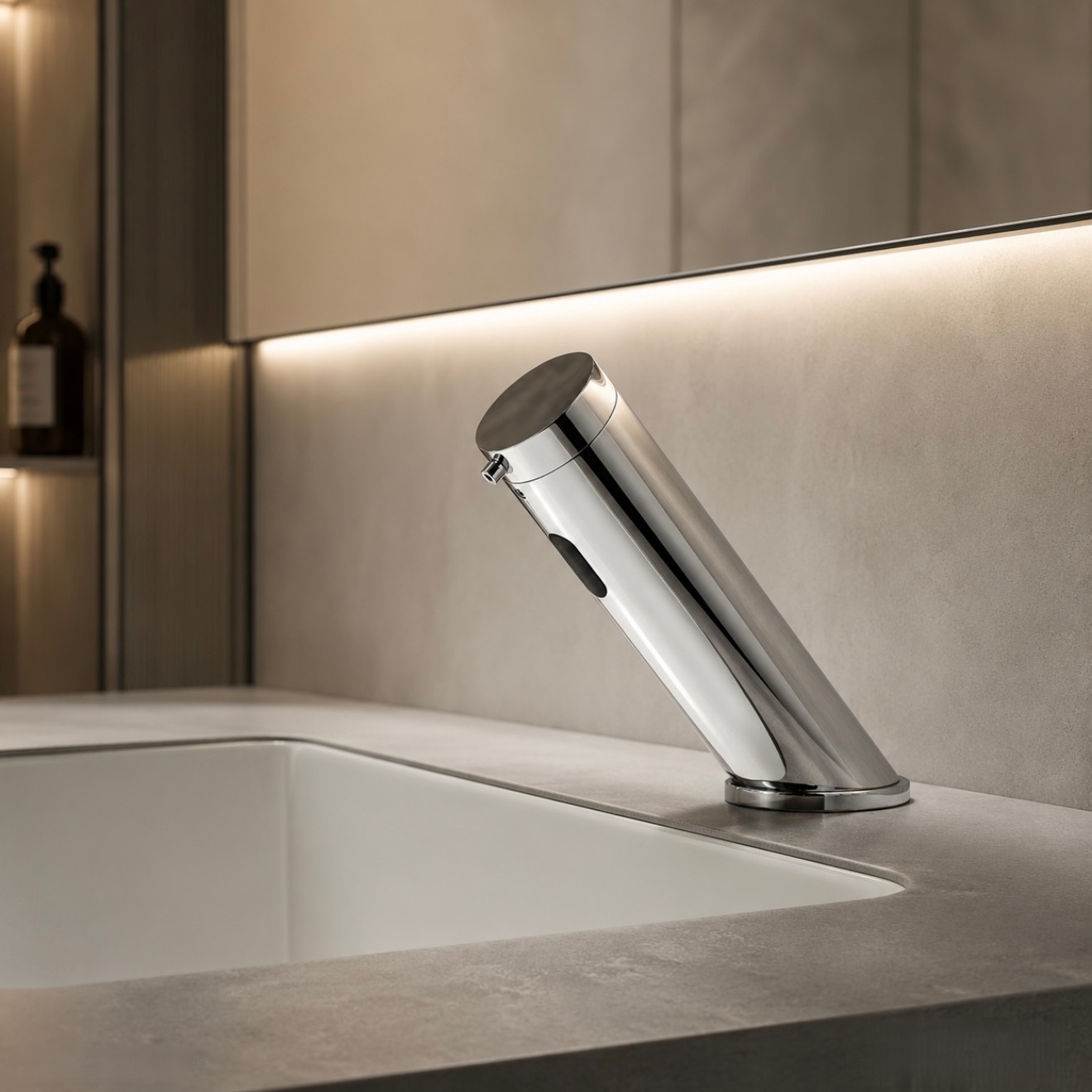

Soap Compatibility and Refill Practice Must Be Controlled

Healthcare soap dispensers should be selected around the approved soap formulation, dose requirement, viscosity range, container strategy and cleaning protocol. The CDC warns against adding liquid soap to a partially empty dispenser because “topping off” has been associated with bacterial contamination. Refill procedures should follow the soap and dispenser manufacturers’ instructions and the facility infection-prevention policy.

Central or higher-capacity soap systems may reduce refill labor in public restrooms or large outpatient facilities, but clinical suitability must be reviewed. The design should address tubing length, priming, dose consistency, reservoir replacement, contamination control, isolation and the response to a failed pump or supply line.

Fixture Selection Must Align With the Facility Water-Management Program

Healthcare buildings require careful control of building water conditions. A fixture with complex internal waterways, low use or extended stagnation may behave differently from a frequently operated public-restroom faucet. The project team should review branch length, water age, temperature control, flushing procedures, outlet selection and maintenance access as part of the broader water system.

The CDC’s toolkit for developing a Legionella water-management program explains how building owners and managers can establish a structured program for reducing Legionella growth and spread. Fixture schedules, commissioning procedures and ongoing maintenance should support—not conflict with—that program.

Safe Use Depends on the Complete Installed Assembly

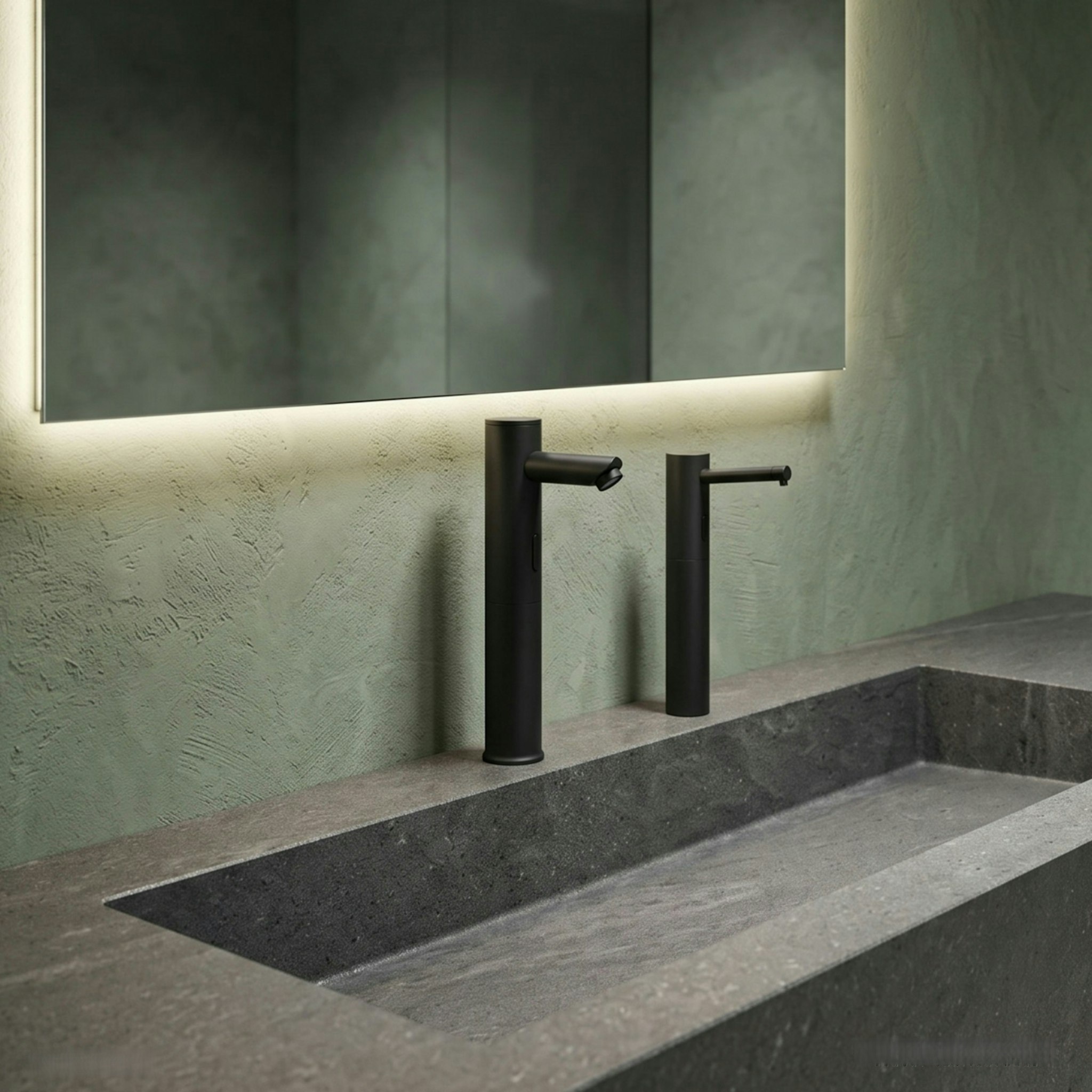

Accessibility depends on the relationship among clear floor space, approach, lavatory height, knee and toe clearance, reach range and operable components. A touchless faucet may simplify operation, but it does not independently make the installed handwashing station compliant.

Water temperature and mixing must also follow the project’s applicable plumbing, healthcare and safety requirements. Where a thermostatic or point-of-use mixing device is required, the selected faucet, supply arrangement and maintenance access must be coordinated with it. The U.S. Access Board’s plumbing-element guidance provides the federal accessibility framework; local codes and facility standards must also be confirmed.

Turnover Documentation Is Part of the Handwashing System

Each installed station should be commissioned for sensor response, runtime, flow, temperature, drainage and soap dose. Facility teams need model-specific instructions for cleaning, filter service, battery or power components, solenoid replacement, outlet maintenance and approved consumables.

Standardizing replaceable components across compatible areas can simplify inventory and training. However, clinical, public and specialty spaces should not be forced into one product standard when their risk profiles differ. The preferred strategy is controlled standardization: common platforms where appropriate, with documented exceptions where the clinical application requires them.
