Eight new models purpose‑built for airports, smart buildings, hospitality, education, healthcare, and civic projects. Nexus focuses on predictable hydraulics, IP‑sealed electronics, and installer‑friendly wiring with deep technical documentation for submittals and commissioning.
0.35–0.5 gpm pressure‑compensated1000 mL bulk‑fill (5 L remote opt.)Battery or AC · shared transformerIR/ToF sensing · mirror compensationADA/UPC minded · ASSE 1070 pairing
How do the sensors handle bright daylight, mirrors, and glossy stone?
Narrowband IR with optical filters reduces sunlight interference; ToF‑assist models range distance rather than raw reflectance. Firmware applies ambient light rejection and reflective‑surface compensation. Maintain sensor‑to‑basin offsets in the submittal to avoid standing‑water reflections.
What are the commissioning parameters and how are they adjusted?
Technician mode allows tuning of sensor range, dwell/exit delay, lockout, hygiene‑flush cadence, and (on select models) dose volume. Settings are changed via discrete service steps or optional BLE snapshot export. Policy cloning keeps behavior uniform across a bank.
What is the electrical load when sharing a transformer between faucet and dispenser?
Shared‑transformer kits are rated to power both devices provided total VA is within nameplate. Latching valves limit pulse current and avoid continuous hold. Use dedicated low‑voltage homeruns; follow conductor gauge and length limits in wiring diagrams to prevent voltage drop.
Which soap chemistries are compatible? Any restrictions?
Liquid: ~1–3000 cP with anti‑drip nozzles; Foam: foam cartridge with purge/prime. Alcohol‑based products are commonly compatible; check SDS for additives that may swell seals. Avoid pumice/particulate soaps. Rinse tanks when changing chemistry types.
How do hygiene flush and thermal purge interact with mixing valves?
Hygiene flush uses normal tempered water; thermal purge is a scheduled maintenance event coordinated with the mixing system. Pair faucets with ASSE 1070 POU mixing to limit outlet temperature. For system‑level disinfection using ASSE 1017 or central controllers, follow facility SOPs and limit occupancy during purge.
What are the mechanical limits for countertops and spacing?
Deck thickness typically 15–40 mm; tighter/looser tops may require accessory kits. Keep 6–10 in (center‑to‑center) between faucet and dispenser to prevent cross‑triggering. Respect minimum clearances to backsplashes/mirrors and to basin waterline as shown in submittals.
How are water hammer and pressure spikes mitigated?
Valve timing ramps and pressure‑compensated regulators reduce transients. Provide hammer arrestors near the branch per code where mains are aggressive. Avoid dead‑end runs and keep strainers clean to prevent seat damage.
What battery life should be expected?
Depends on cycles/day, water temp, and policy settings. Latching valves and low‑power electronics extend life for high‑traffic duty; AC is recommended for 24/7 venues to eliminate pack replacement.
What standards and codes apply?
Design intent aligns with ASME A112.18.1/CSA B125.1 (faucets), NSF/ANSI 61/372 (lead‑free), and ADA/ICC A117.1 clearances. Flows of 0.35–0.5 gpm support IPC/UPC lavatory limits. Always verify local amendments and project specifications.
What maintenance items should be stocked for a campus rollout?
Strainers, regulators (0.35/0.5 gpm), seal kits, pump modules, and power packs. Keep a small set of finish‑matched bezels/escutcheons for damage swaps. Maintain O&M manuals with wiring and policy baselines per building.
Product Reviews
Architect — International Terminal (Vector™)
“Vector™ reads as one composition with the dispenser. Laminar water and anti‑drip dosing keep terrazzo pristine, even at peak.”
Rating: ★★★★★ · Focus: Aesthetics, Hygiene
Interior Designer — Gallery (Strata™)
“Slim bezels and consistent PVD tones match our hardware. Sensing stays predictable near mirrors.”

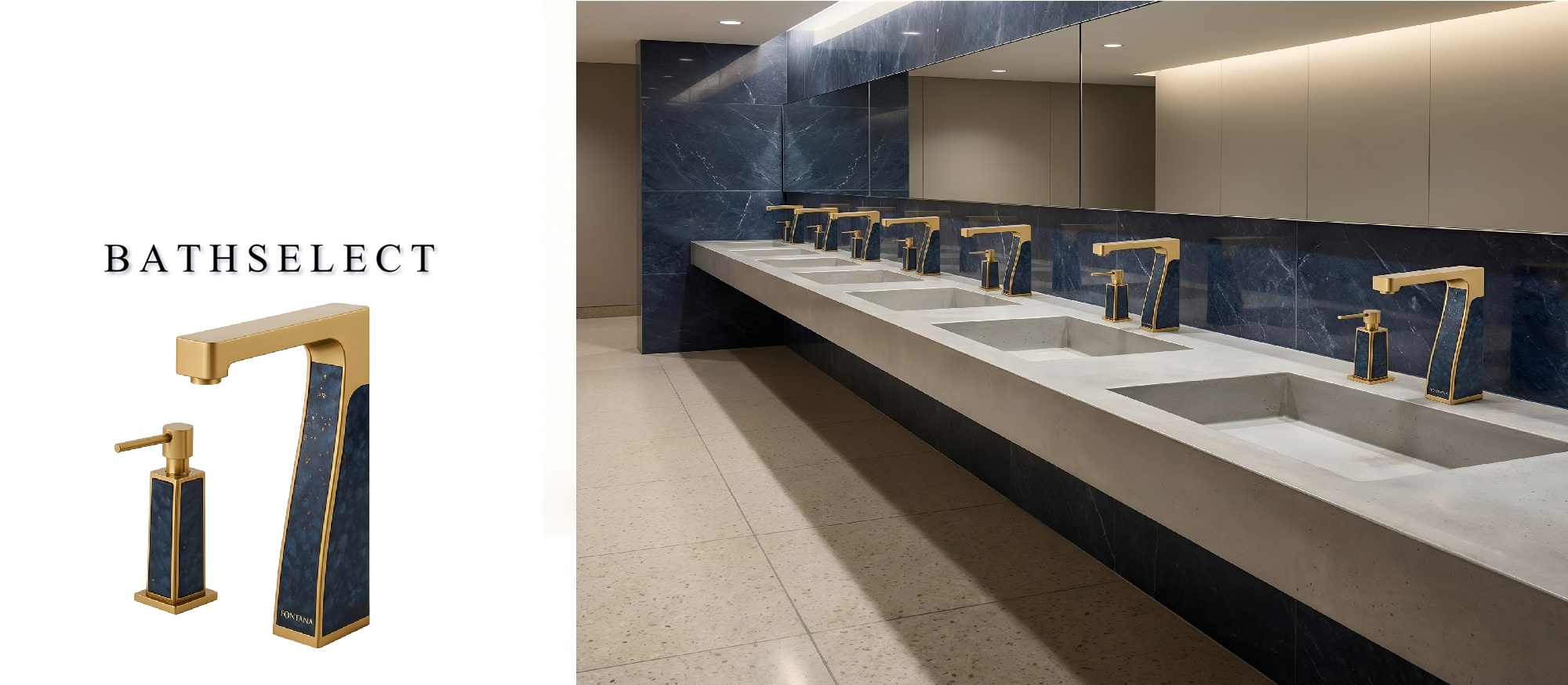

Commercial Touchless Faucets for High-Traffic Environments
Bathselect commercial touchless faucets are engineered for reliability, hygiene, and long-term performance in demanding environments. Designed with advanced motion sensor and ToF technology, these faucets deliver precise activation with minimal false triggers, making them ideal for restrooms in hotels, hospitals, airports, and office buildings.
Advanced Sensor Technology & Water Efficiency
Our touchless faucet systems optimize water usage while maintaining consistent flow and temperature control. With WaterSense-certified performance and smart activation systems, Bathselect faucets help reduce water waste and operational costs without compromising user experience.
Flexible Installation Options
Choose from a wide range of configurations including wall mount and deck mount touchless faucets to suit different commercial sink designs. Each model is built with durable materials and premium finishes such as brushed gold, matte black, and bronze to match modern commercial interiors.
Built for Durability & Compliance
Tested for up to 1.2 million activation cycles, Bathselect faucets meet the highest standards for durability and performance. Our products are compliant with LEED requirements and designed to support sustainable building initiatives.
