How should the concealed valve be hydraulically balanced for the rainfall head, body jets, and hand shower?

The hot and cold supplies should be delivered at closely matched dynamic pressures, with branch piping sized to prevent excessive pressure loss. Each outlet should then be tested individually to confirm stable discharge before final diverter verification.

Why is the rough-in depth critical for the square control trim?

Incorrect valve depth can prevent the trim plate from seating flush, reduce handle engagement, and leave insufficient cartridge service access. The finished-wall allowance must include backer board, waterproofing membrane, tile, and adhesive thickness.

How can installers prevent uneven flow across the body-jet array?

Body jets should be supplied through a balanced loop or symmetrically arranged manifold rather than a long series-fed branch. Equalized pipe lengths and minimal directional restrictions help maintain similar pressure and spray intensity at every jet.

What causes delayed temperature stabilization after the shower is activated?

Long hot-water pipe runs, unequal inlet pressures, debris in the valve strainers, and an uncalibrated thermostatic cartridge can extend stabilization time. The valve should be flushed and calibrated under normal dynamic supply conditions.

Why should the overhead shower arm be independently supported?

A large square rainfall head creates leverage at the threaded connection. Structural blocking or a securely anchored drop-ear fitting prevents movement, protects concealed joints, and keeps the showerhead level after repeated cleaning or adjustment.

How should the brushed-gold finish be protected during installation and maintenance?

Trim components should remain covered until construction work is complete and should be cleaned only with a soft cloth and pH-neutral solution. Abrasive compounds, acidic descalers, and metal tools can permanently mark the decorative surface.

What service checks are required if one shower function develops reduced flow?

Inspect the selected outlet for mineral buildup, verify the diverter port opens fully, clean inlet strainers, and check the branch line for construction debris or an undersized fitting. Comparing static and flowing pressures helps isolate upstream restrictions.

Which commissioning procedures verify complete BS1002DP shower-set performance?

Commissioning should include pressure-testing concealed piping, flushing both supplies, confirming rough-in depth, calibrating the temperature control, validating the safety stop, testing each outlet independently, checking balanced body-jet discharge, verifying diverter sequencing, inspecting all joints for leakage, and documenting final flow and temperature performance.

Brushed Gold Shower Set Combo

Alternative Views:

Retail Price: $1,827.35

Sale Price: $1,644.62

You save $182.73!

Price with Selected Options: $1,644.62

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS1002DP

Shower Head Size:

Qty:

Description

Technical Specs

Extended Technical Information

Brushed Gold Shower Set Combo

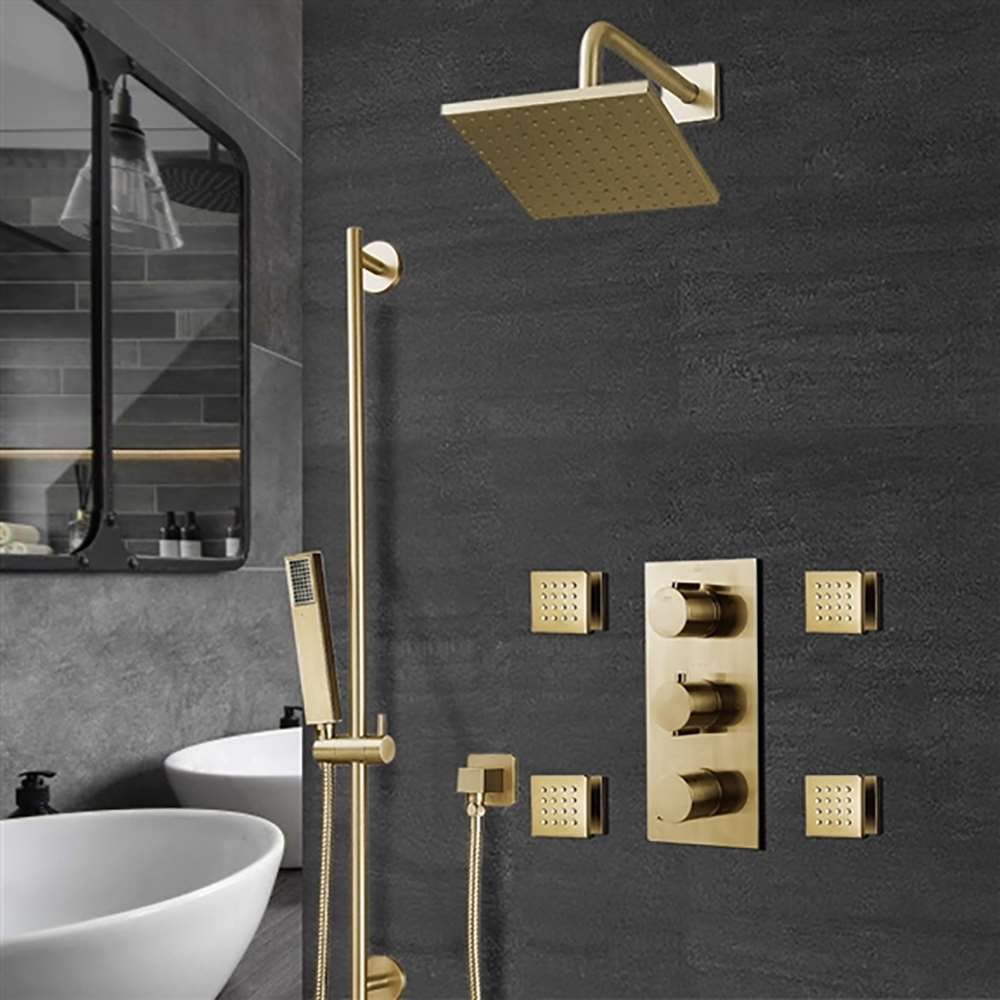

Enhance your modern bathroom with Brushed Gold Shower Set Combo Set with Handheld Shower, which comes complete with the square wall mount shower head along with four square body jets and the thermostatic triple shower valve and a hand held shower. Its rainfall effect experience makes showering experience more soothing and relaxing. Its optimum design and innovative technology allow for voluminous soft droplets to make your showering experience a fun one. Constructed from solid brass and stainless steel with a high-quality unique brushed gold finish, the thermostatic shower valve features stylish yet easy to use handles that control the flow and temperature of the water and a diverter that allows you to switch between the fixed head, hand shower or the body jets. Made from solid brass that looks sleek and modern but delivers a refreshing showering experience. The shower arm is wall-mount that has been made from brass. The square body jets enhance the overall showering experience and provide an invigorating massage effect, while the hand shower with adjustable slide bar allows for easier rinsing and cleaning. The flow rate is 2.5 GPM. Easy installation, comes with all standard accessories. It is designed to be lightweight, durable and corrosion-resistant and has an automatic anti-scald device.

Brushed Gold Shower Set Combo Features:

Brand Name: BathSelect
Model Number: BS1002DP
Type: Shower Set
Finish: Brushed Gold

Brass Valve water pressure balance control
Standard plumbing connection-Shower panel unit is pre-plumbed
All functions work independently to ensure the proper water pressure
Ceramic Disc Technology
½" NPT Inlets and outlets compatible with standard US plumbing connections
Pre-set maximum temperature 104ºf
The recommended pressure for best performance 2 to 75 psi
The flow rate is 2.5 GPM

Features

Brushed Gold Shower Set Combo FAQ

Diverter Sealing, Outlet Selection & Pressure-Loss Management

Which valve function controls switching between shower outlets?

The diverter valve redirects water between outlets while maintaining a sealed flow path during selection.

What plumbing factor affects multi-outlet shower performance?

Adequate supply flow and balanced pressure reduce performance loss when routing water through different outlets.

Why should the mixer body be secured before wall finishing?

A stable valve body prevents movement behind the wall and preserves handle alignment after tile installation.

Which maintenance step protects the brushed gold finish?

Non-abrasive cleaning avoids surface dulling while preserving the directional brushed texture.
