How should the concealed Bravat valve be positioned relative to the finished wall?

The valve body must be installed within its specified minimum and maximum rough-in depth after accounting for backer board, waterproofing, adhesive, and tile. Correct positioning allows the trim plate to seat flush while preserving full handle engagement and future cartridge access.

Why should hot and cold dynamic pressures be balanced before calibrating the shower controls?

Large pressure differences can reduce temperature stability and alter the available flow at the selected shower outlet. Pressure should be measured while water is flowing, because static readings alone do not reveal pipe, filter, or valve restrictions.

How does supply-pipe sizing affect rainfall shower coverage?

Undersized piping, excessive elbows, and restrictive fittings increase friction loss before water reaches the showerhead. Adequately sized branches help maintain sufficient dynamic pressure for uniform discharge across the complete rainfall spray face.

What can cause the diverter to allow water through an unselected outlet?

Cross-flow may result from debris on the cartridge sealing surfaces, incomplete handle engagement, incorrect cartridge orientation, excessive supply pressure, or internal seal wear. The supply lines and valve cavity should be flushed before cartridge replacement is considered.

Why must the rainfall shower arm be supported independently of the finished wall?

The rainfall head applies leverage to the concealed threaded connection. A securely anchored drop-ear fitting or structural support prevents movement, protects the waterproof wall penetration, and keeps the showerhead level during use and maintenance.

How should mineral accumulation be removed from the matte-black shower components?

Deposits should be softened with a manufacturer-compatible mild solution applied to a cloth, followed by rinsing and drying. Abrasive pads, concentrated acids, bleach, and metal tools can damage the matte surface and should not contact the exposed trim.

What diagnostic checks are required if rainfall flow decreases after normal operation?

Inspect the spray nozzles, outlet screen, valve strainers, diverter passage, and supply stops for restriction. Comparing inlet pressure with pressure measured during rainfall operation helps determine whether the loss originates in the building supply or the shower assembly.

Which commissioning procedures verify complete BS1006BR shower-system performance?

Commissioning should include pressure-testing concealed joints, flushing hot and cold supplies, confirming valve rough-in depth, verifying trim and handle engagement, checking temperature-control response, testing diverter isolation, measuring dynamic outlet performance, inspecting rainfall coverage, validating automatic shutoff of unselected functions, and documenting leak-free operation through repeated cycles.

Bravat Matte Black Rainfall Shower Set with Handheld Shower

Bravat Matte Black Finish Rainfall Shower Set with Handheld Shower

Alternative Views:

Retail Price: $1,931.77

Sale Price: $1,858.23

You save $73.54!

Price with Selected Options: $1,858.23

Availability: Usually Ships in 2 to 3 Weeks
Product Code: BS1006BR

Shower Head Size:

Qty:

Description

Technical Specs

Extended Technical Information

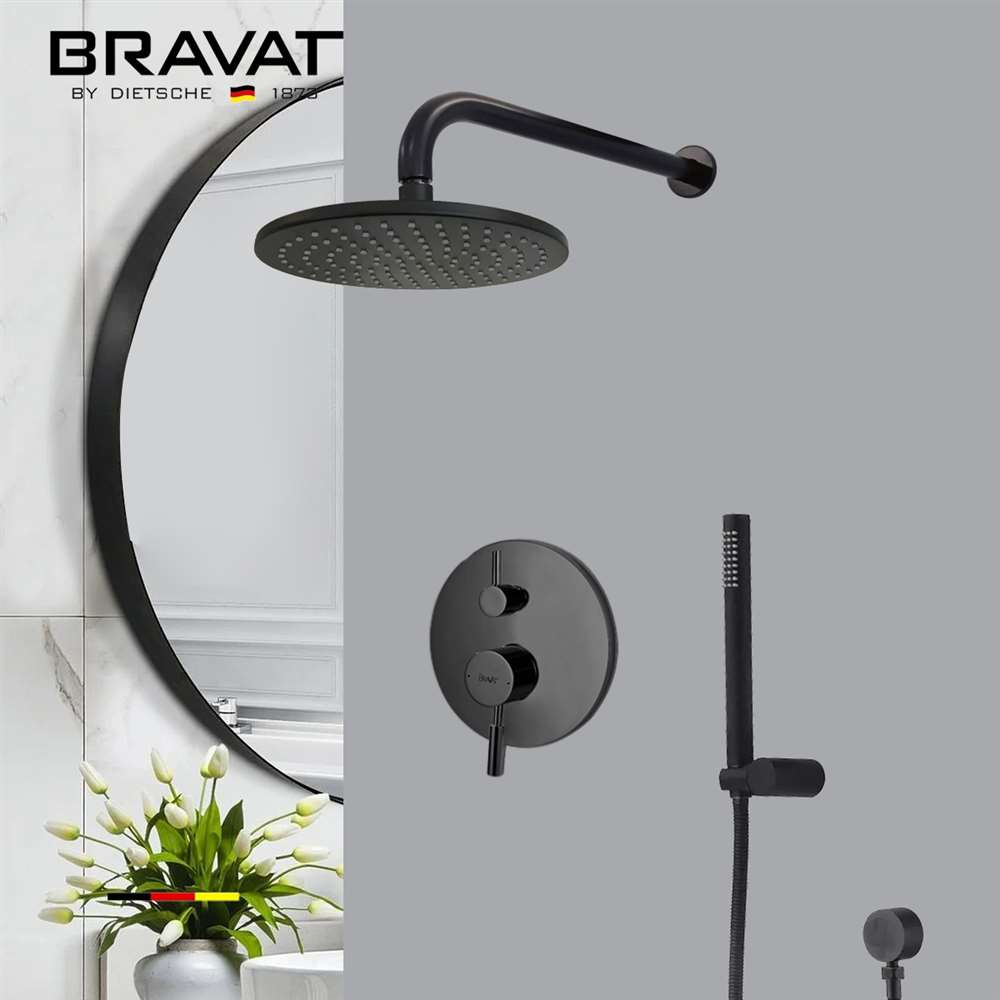

Bravat Matte Black Rainfall Shower Set with Handheld Shower

Enhance your modern bathroom with Matte Black Rainfall Shower Set with Handheld Shower, which comes complete with the round wall mount shower head along with thermostatic triple shower valve and a hand held shower. Its rainfall effect experience makes showering experience more soothing and relaxing. Its optimum design and innovative technology allow for voluminous soft droplets to make your showering experience a fun one. Constructed from solid brass and stainless steel with a high-quality unique Matte Black finish, the thermostatic shower valve features stylish yet easy to use handles that control the flow and temperature of the water and a diverter that allows you to switch between the fixed head, hand shower. Made from solid brass that looks sleek and modern but delivers a refreshing showering experience. The shower arm is wall-mount that has been made from brass. The hand shower with adjustable slide bar allows for easier rinsing and cleaning. The flow rate is 2.5 GPM. Easy installation, comes with all standard accessories. It is designed to be lightweight, durable and corrosion-resistant and has an automatic anti-scald device. Matte black rainfall shower system; durable construction; corrosion resistance; smooth water flow; modern design; stylish bathroom upgrade.

Bravat Matte Black Rainfall Shower Set with Handheld Shower Product Features:

Brand Name: Bravat
Model Number: BS1006BR
Type: Shower Set
Brass Valve water pressure balance control
Round shower head with handheld shower
Standard plumbing connection-Shower panel unit is pre-plumbed
All functions work independently to ensure the proper water pressure
Ceramic Disc Technology
½" NPT Inlets and outlets compatible with standard US plumbing connections
Pre-set maximum temperature 104ºf
The recommended pressure for best performance 2 to 75 psi
The flow rate is 2.5 GPM

Features

Bravat Matte Black Rainfall Shower Set FAQ

Water Hammer Control, Thread Sealing & Rainfall Flow Conditioning

What plumbing issue can cause sudden noise during shutoff?

Water hammer may occur when flow stops abruptly, so secure piping and pressure control help reduce vibration.

Which sealing detail protects wall connections from leaks?

Proper thread engagement with suitable sealing tape or compound helps maintain watertight shower arm connections.

What improves smooth rainfall flow through the shower head?

Internal flow conditioning distributes water before it reaches the spray face, improving coverage uniformity.

Why is wall-arm alignment important before final tightening?

Correct alignment prevents side loading on threaded fittings and keeps the shower head level.
