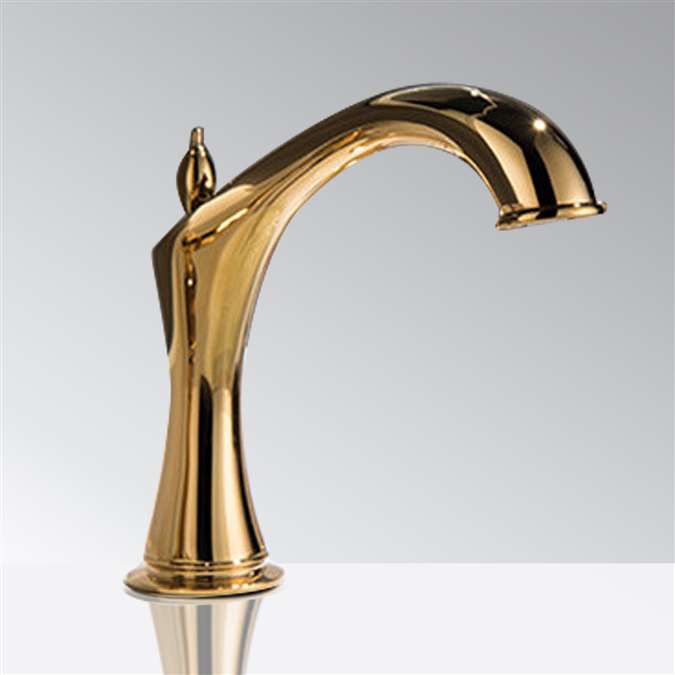

BathSelect Polished Gold Bishop Commercial Handsfree Sensor Faucet
Bathselect Polished Gold Bishop Commercial Handsfree Sensor Faucet

Alternative Views:
Retail Price: $1,364.82
Sale Price: $1,330.39
You save $34.43!

Price with Selected Options: $1,330.39





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST506-G


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Matte Black

Chrome

Rose Gold

BathSelect Polished Gold Bishop Commercial Handsfree Sensor Faucet

Product Description

Commercial Sensor Faucet; Engineered with stable sensing, durable construction, and reliable automatic shut-off performance. The new Bathroom Faucet from Delta is here to help you save water. This cleverly designed sensor faucet features an anti-abrasion finish and can detect when there's no one around for it so that is all we need to do in order to prevent accidental leaks or drips while using our restroom! It also has AI microchips which allow them to work smarter, not harder as well as being 100% touch-free operation making this convenient fixture a dream come true even if have arthritis problems going on.

Easily installed in new or retrofit applications.

s the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
    • Diameter of inlet pipe: DN15
    • Diameter of outlet pipe: DN15
    • Water Pressure: 0.05Mpa - 0.7Mpa
    • Power and Voltage: DC.6V AC.220V - 50/60Hz
    • Power Consumption: 0.5MW <2W
    • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
    • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
    • Degree of protection by enclosure: 1P56

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Product Description

  1. Sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.8MPa
  10. US standard water supply pipe size: (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: Yes
  16. Color: Gold
  17. Usage: Commercial

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
BISHOP COMMERCIAL SENSOR LINE

Bishop Sensor™
Technical FAQs

Commercial touchless faucet with solid brass construction, active infrared sensing, AC/DC power, 2.2 GPM flow and vandal-resistant automatic shutoff control.

✥ How Should the Sensor Range Be Commissioned? +
The active infrared neck-mounted sensor supports an approximately 2 to 6 inch sensing range. Complete final commissioning after the basin and surrounding surfaces are installed, then verify stable hand detection without false activation.
◇ How Fast Does the Bishop Faucet Respond? +
BathSelect specifies an approximately 0.3-second response after valid hand detection. The electronic valve closes approximately 2 seconds after the user leaves the sensing field for controlled commercial operation.
◯ What Is the Rated Flow Performance? +
The standard aerator is rated at approximately 2.2 GPM. During commissioning, verify stable discharge at operating pressure and inspect the outlet and filtration if flow becomes restricted.
↻ How Does Anti-Vandal Shutoff Work? +
The digital controller limits continuous water operation to approximately 60 seconds. If an object remains inside the sensing field, the valve shuts off automatically to reduce unattended water use and vandal-related discharge.
⌁ What Water Pressure Range Is Supported? +
BathSelect specifies approximately 1 to 100 PSI working pressure for the Bishop faucet. Flush the supply before final connection and verify stable dynamic pressure at the 1/2-inch NPT male inlet.
⌂ How Is the Solenoid Protected From Debris? +
A 50-mesh particle filter and serviceable built-in strainer help prevent debris from reaching the 6-volt magnet-latching solenoid. Clean the filtration components during scheduled preventive maintenance.
⚡ Which Power Configurations Are Supported? +
The Bishop faucet supports four AA alkaline batteries or an AC power adapter. BathSelect lists approximately 250,000 battery operating cycles, while the extended technical data also supports DC6V electrical operation.
⌕ What Should Routine Maintenance Include? +
Clean the infrared sensor window and aerator, inspect the 50-mesh filter and inlet strainer, verify battery or AC power condition and confirm consistent solenoid shutoff. Also inspect deck mounting and plumbing connections periodically.
BathSelect Polished Gold Bishop Commercial Handsfree Sensor Faucet
Polished Gold
♧
2.2 GPM Standard Aerator
⌁
2–6 in Adjustable Detection
⚡
AC / DC Flexible Power
◇
Solid Brass Commercial Construction
⚙
60 Sec Anti-Vandal Shutoff

Average Customer Review: Average Customer Review: 4.5 of 5 4.5 of 5 Total Reviews: 3 Write a review.

  1 of 1 people found the following review helpful:

3 of 5 Service Pressure Reduced Saturday, May 30, 2026
Reviewer: Caleb Cole, Specialist from Lexington, KY
Before this upgrade, our maintenance office routinely received requests for restroom fixture repairs during peak occupancy. Since these faucets were installed throughout the facility, service pressure has eased considerably because dependable operation has become the norm rather than the exception.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Stable calibration Thursday, April 30, 2026
Reviewer: Patrick Holloway, Operations Advisor from Las Vegas, NV
While renovating several upscale hospitality restrooms between 2023 and 2025, we replaced older polished gold faucets that repeatedly developed unstable flow timing and coating wear near reflective basin surfaces. The Gold Bishop Faucet delivered noticeably stronger reliability throughout long-term guest usage.Its infrared responsiveness remained highly accurate during repeated activation cycles, while the polished gold finish resisted spotting and cleaning-related wear substantially better than earlier decorative fixtures. The faucet also maintained controlled water delivery without excessive splashback.From a technical perspective, the sensing module maintained highly stable calibration near mirrored backsplashes and polished stone countertops where previous decorative sensor faucets frequently produced irregular activation behavior.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

5 of 5 High Quality Tuesday, March 1, 2022
Reviewer: Lo soukhavong from Colorado
This cleverly designed sensor faucet is beautiful, it features an anti-abrasion finish and can detect when there's no one around for it so that all we need to do in order to prevent accidental leaks or drips.

Was this review helpful to you?
