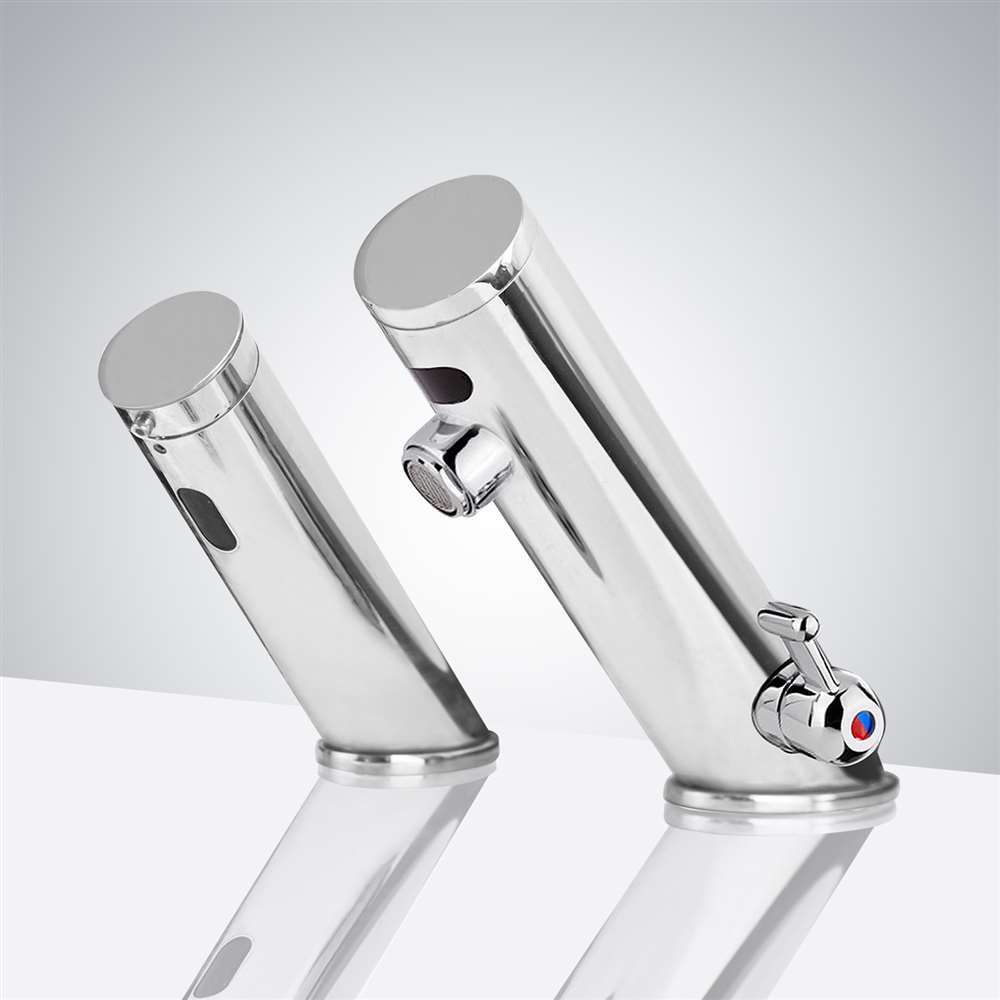

All-in-one Thermostatic Automatic Chrome Commercial Sensor Faucet with Matching Soap Dispenser

All-in-one Thermostatic Automatic Commercial Sensor Faucet with Matching Soap Dispenser

Alternative Views:


Retail Price: $1,215.78
Sale Price: $1,105.66
You save $110.12!

Price with Selected Options: $1,105.66






Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5132-SD


Hot & Cold Option:


Qty:
Description Technical Specs Extended Technical Information


Temperature Control Thermostatic Automatic Commercial Sensor Faucet with Soap Dispenser Product Description

Leo all-in-one Thermostatic Automatic Commercial Sensor Faucet B5132 - Also Available in Oil Rubbed Bronze

Leo Automatic Commercial Sensor Faucet with built-in Mixing Valve (Hot & Cold)

Comes with 5 - Year Manufacturer WarrantyEasily can be installed in new or retrofit applicationsAC/DC power option
  • Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Added feature Temperature Control operation
  • Factory se to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure : 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Polished Chrome Finish
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply : AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant, commercial sensor faucet.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.

All Parts in one perfect product;

Ceramic Cartridge;

Built-in check valve;

Sensor control;


Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features :

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
  • Intelligent : with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Flow Rate: 0.5 GPM (1.9 L/min)
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 F
  • Degree of protection by enclosure: 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for High Traffic Commercial and Residential Applications.

  • Specifications: Overall Height : 7" (measured from counter top to the highest part of the faucet)
  • Spout Height : 3-1/2" (measured from counter top to the spout outlet)
  • Spout Reach : 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type : Single hole
  • Number of Hole Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes) : Single Hole
  • Flow Rate : 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness : 1-5/8"
  • Infrared sensor operation


Detailed Product Description:Thermostatic Automatic Sensor mixer Faucet All-in-one B5132

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enough cold and hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature also available
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
  • Usage: Commercial / Residential
