How should the BS-BNS10DP concealed shower manifold be laid out to maintain equal hydraulic loading across the six adjustable body jets?

Install the concealed manifold so branch lengths remain as balanced as practical between the solid brass valve body and the six 360° body jets. Symmetrical routing minimizes pressure differentials, improves spray consistency, and reduces the likelihood of one massage outlet receiving disproportionate flow during simultaneous operation.

What commissioning sequence should be used for the rainfall head, six body sprays, and slide-bar hand shower?

Commission the stainless steel rainfall shower head first, followed by each of the six body jets individually, then the slide-bar hand shower. After confirming independent operation, test combined outlet configurations while monitoring pressure stability, outlet isolation, and consistent discharge from every active fixture.

How can installers verify that the triple-handle mixer maintains complete outlet isolation during function switching?

Operate every handle through repeated switching cycles while observing inactive outlets for unintended discharge. Proper ceramic valve indexing should completely isolate non-selected outlets so the rainfall head, body jets, and hand shower remain hydraulically separated without internal bypass or cross-flow.

How should the anti-scald protection be evaluated after the concealed valve assembly is installed?

Using a calibrated thermometer, monitor mixed-water temperature while varying hot and cold supply conditions within the building system. The anti-scald mechanism should rapidly stabilize outlet temperature and prevent sudden temperature spikes when another plumbing fixture introduces pressure fluctuations.

What inspection should be completed before permanently enclosing the concealed brass valve body?

Perform hydrostatic pressure testing followed by dynamic flow testing while all threaded joints, outlet ports, and concealed supply connections remain accessible. Inspect the valve body, shower arm connection, body-jet manifold, and hand-shower branch for leakage, pipe strain, pressure decay, or mechanical displacement before closing the finished wall.

How should the touch-clean rainfall shower head be assessed during final hydraulic commissioning?

Operate the selected 8-inch, 10-inch, 12-inch, or 16-inch rainfall head independently and verify uniform spray coverage across the complete nozzle field. Any localized dry zones or distorted spray patterns should be corrected by flushing the branch and inspecting the touch-clean nozzles for construction debris or mineral restriction.

How should the slide-bar hand shower assembly be verified for long-term commercial durability?

Confirm that the slide bar is securely anchored to structural backing and that the hand-shower holder travels smoothly without binding. Pressurize the flexible hose through its complete movement range while inspecting the hose connections, swivel joints, and holder assembly for leakage, abrasion, or mechanical interference.

Which preventive-maintenance program best supports the long-term reliability of the BS-BNS10DP shower system?

Schedule periodic descaling of the rainfall head and all six body jets, inspect the ceramic valve controls for smooth operation, verify outlet isolation, tighten accessible mounting hardware, examine the hand-shower hose for wear, and clean the brushed nickel finish with pH-neutral nonabrasive products to preserve both hydraulic efficiency and surface durability.

BathSelect Hotel Style Wall Shower with Jet Spray and Handshower - Slide Bar and Valve Included

Name: Bath Select
Address: 4270-I Henninger Ct Chantilly, Virginia, VA, 20151, US
Telephone: 800-500-9895
Price range: $100 to $3500

hotel square wall shower with jet spray and hand shower slide bar and valve

LED Shower Set

Alternative Views:

Commercial Price $2,253.74

Price with Selected Options: $2,253.74

Availability: Project Pricing Available Request Quote
Product Code: BS-BNS10DP

Shower Arm:
Shower Head Shape:
Shower Head Size:

Request RFQ

Description

Technical Specs

Extended Technical Information

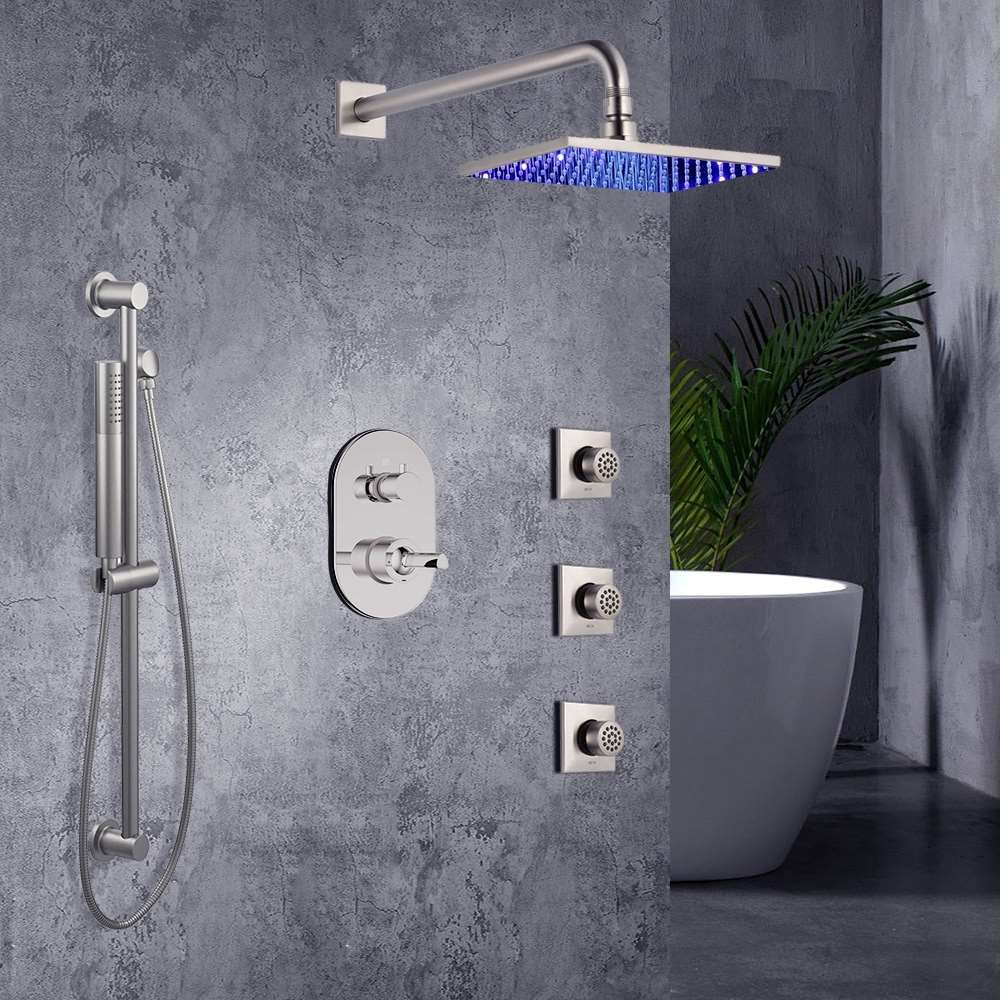

Luxury Shower for Hospitality Industry the BathSelect Square Wall Shower with Jet Spray and Handshower -Slide Bar and Valve Included

LED Bathroom Shower Set for Hotels. Turn on the fun in your shower just by turning on the water. Solid stainless steel construction with a brushed nickel finish and a ceramic valve core material for long durability that will upgrade your bathroom with a modern and cool look. The Showerhead and 6 body jet have a rainfall function where you can experience the true feeling of rain. You can install the rain shower head and handheld showerhead and body jets where you like just depend on the position of Concealed water pipe.

BathSelect Hotel Square Wall Shower Features:

Brand Name: BathSelect

Model Number: BS-BNS10DP

Type: Shower Set

Finish: Brushed Nickel

Number of Handles: Bravat Handle

Mixer Material: Solid Brass

Anti-scald

Threading Fitting: Fit in any standard shower head

Inclusion: Shower arm

Installation: Wall Mount

Design: Modern Stylish Design Stainless steel finish

Showerhead Material: Stainless Steel

Technical Specs

Material: Solid Brass

Finish: Brushed Nickel

Style: Contemporary Rain Showerhead

Handshower: Included Slide Bar

Showerhead Width: Available in 8", 10", 12", or 16"

Showerhead Length: Available in 8", 10", 12", or 16"

Feature: Touch clean shower head

Showerhead Style: Contemporary Rain Shower

Mount Method: Wall Mount

Connection: 1/2" US standard (included)

Shower Arm: Included

Body Jets: Comes with solid brass 360° adjustable Body Jets finished

Features

Hotel Square Wall Shower with Jet Spray & Hand Shower FAQ

Hospitality Thermostatic Regulation, Jet Spray Hydraulics & Concealed Valve Engineering

This hospitality shower system combines a thermostatic mixing valve, square rainfall shower, adjustable body jets, and a slide-bar hand shower to provide stable water temperature and balanced hydraulic performance for commercial guest bathrooms.

How does thermostatic regulation improve guest shower safety?

The thermostatic cartridge continuously compensates for pressure fluctuations between hot and cold supplies, maintaining a consistent outlet temperature throughout operation.

Why are body jet circuits hydraulically balanced?

Balanced internal waterways distribute pressure evenly across multiple body jets, reducing flow variation while maintaining uniform hydrotherapy performance.

How does concealed valve installation improve service reliability?

The rough-in valve centralizes hydraulic control behind the finished wall, protecting plumbing connections while allowing trim components to remain serviceable.

How does the slide-bar hand shower improve operational flexibility?

The adjustable mounting rail allows users to reposition the handheld spray while maintaining unrestricted hose movement and stable water delivery.
