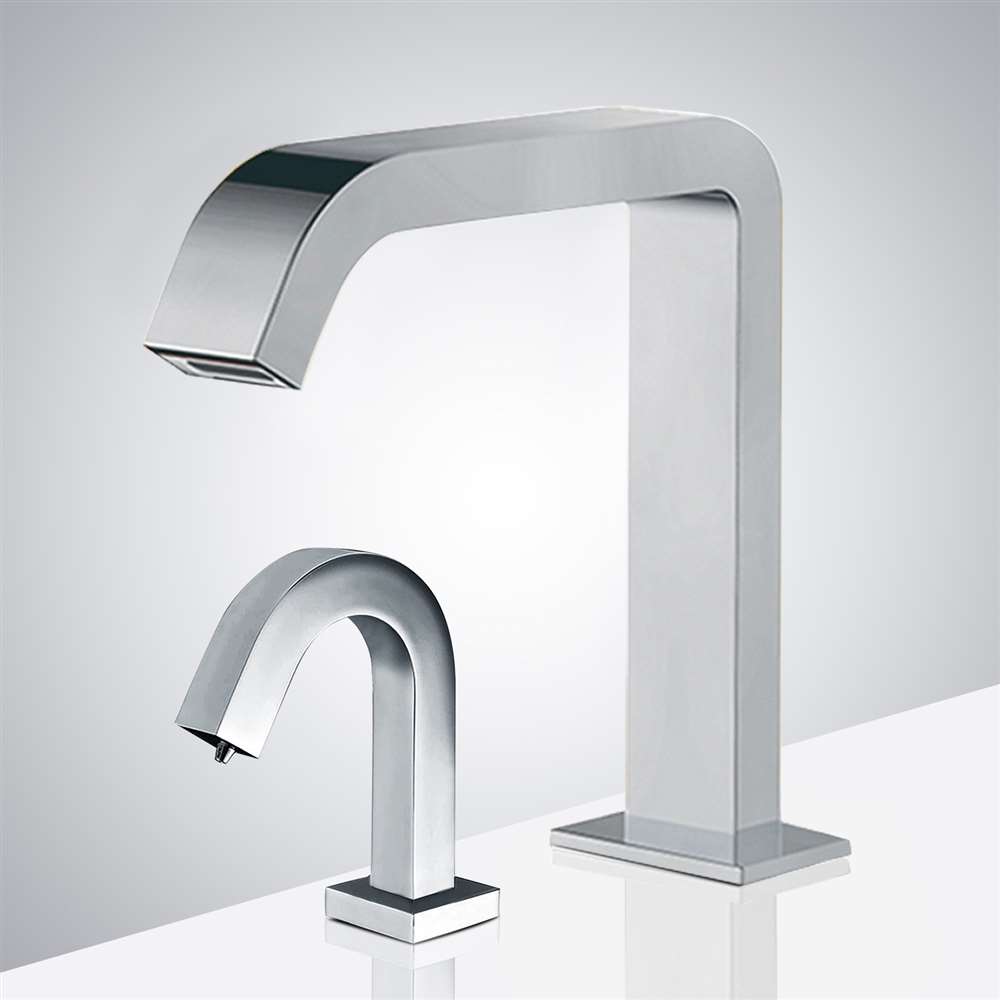

Fontana Commercial Automatic Sensor Faucet In Chrome And Touchless Automatic Sensor Liquid Soap Dispenser
- Motion detection touchless sensor faucet operation
- Commercial and residential use
- Sensitive Sensor with Infrared AI Smart-Chip Soap Dispenser
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
|
|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Sensor Faucets
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
Fontana Commercial Automatic Sensor Faucet In Chrome And Touchless Automatic Sensor Liquid Soap Dispenser Description
|
Our Fontana Commercial Automatic Sensor Faucet In Chrome And Touchless Automatic Sensor Liquid Soap Dispenser combination is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming chrome color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet and soap dispenser. Immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|
.jpg)
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
BathSelect Chrome Commercial Sensor Faucet & Soap Dispenser FAQ
Dual Sensor Separation, Automatic Dispensing & Commercial Service Access
This chrome commercial fixture pairs an automatic touchless faucet with a coordinated sensor soap dispenser for hygienic, contact-free handwashing in high-use restroom installations.
How does the dual sensor arrangement prevent soap and water from activating together?
The faucet and soap dispenser operate through separate detection zones and control circuits. Each function responds only when hands enter its designated sensing area, allowing soap and water delivery to remain independently controlled.
Why is sensor spacing important when installing both fixtures on the same sink?
Adequate separation helps keep the infrared detection fields from overlapping and provides intuitive hand placement for users. Correct spacing also reduces unintended activation caused by nearby fixtures or reflective sink surfaces.
What should be checked if the soap dispenser begins delivering inconsistent doses?
Maintenance personnel should inspect the soap level, supply tubing, dispensing outlet, sensor window, and pump path for air, dried residue, or obstruction. Keeping these components clean supports repeatable automatic dosing.
Which components should remain accessible for routine commercial maintenance?
The faucet solenoid, sensor connections, power components, soap reservoir, pump, and supply tubing should remain serviceable so routine cleaning and component replacement can be completed without disturbing the finished sink installation.
|
|
|
|
|
|
|
