Upscale Touchless Sensor Faucets
Upscale Touchless Sensor Faucets

Alternative Views:
Retail Price: $684.30
Sale Price: $648.58
You save $35.72!

Price with Selected Options: $648.58





Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Product Code: BS-1096LRM-SFDP1


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Upscale Touchless Sensor Faucets

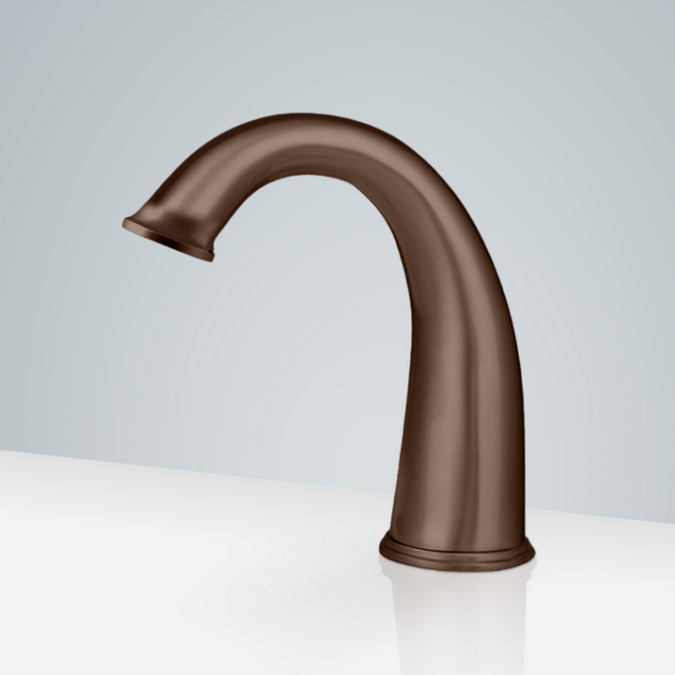

Bravat Oil Rubbed Bronze Commercial Automatic Motion Sensor Faucets

Upscale Touchless Sensor Faucets Details:

Improve hand washing compliance, and minimize waste of water, by using BathSelect touchless bathroom automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup) Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.


  • Sensor faucet complete motion detection operation.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Light Oil Rubbed Bronze
  • Installation made easy with simplified instructions
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Complaint
  • The batteries' life is 8,000 cycles per month and with enough water pressure is the approx 5-year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V AC.220V - 50/60Hz
  • Power Consumption: 0.5MW <2W
  • Detection Zone: Factory sets 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56


Features


Upscale Touchless Sensor Faucets FAQ

Sensor Field Optimization, Diagnostic Electronics & Commercial Performance Engineering

These upscale commercial touchless sensor faucets are engineered with AI-assisted infrared sensing, vandal-resistant solid brass construction, dual AC/DC power capability, and adjustable detection parameters for demanding public restroom installations. They operate within approximately 10–125 PSI using standard 1/2-inch plumbing connections.

What installation adjustment has the greatest effect on infrared sensing accuracy?
Proper calibration of the detection distance ensures the sensing field matches basin dimensions, reducing unintended activation while maintaining dependable hands-free operation.
Which diagnostic feature assists technicians during maintenance procedures?
Integrated electronic status indicators provide visual feedback for power availability, controller operation, battery condition, and valve activation, simplifying troubleshooting and servicing.
Why is a vandal-resistant brass body specified for commercial public restrooms?
The reinforced brass construction withstands repeated mechanical impact, preserves alignment of precision hydraulic components, and improves long-term structural durability in high-use environments.
What design characteristic supports dependable hydraulic performance over years of service?
A removable inlet strainer, precision-machined internal waterways, and electronically regulated solenoid control help maintain consistent flow while protecting the valve assembly from sediment accumulation.
