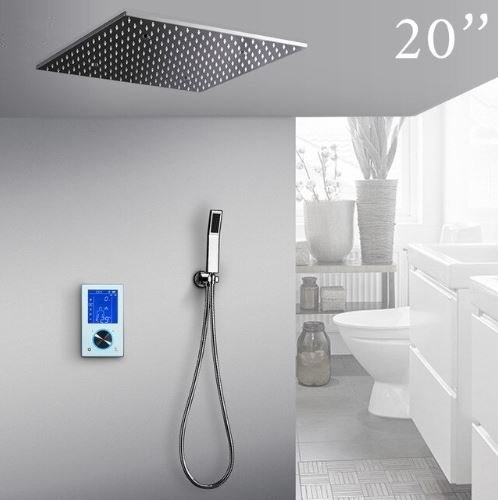

BathSelect Ravenna Modern 20" Digital Ceiling Mount Bathroom Shower Head
BathSelect beautiful chrome finish bathroom shower head. It has a chrome finish color. It can be kept at a temperature of 38 degrees to avoid burns. This showerhead can experience the real sensation of rain, as well as the SPA head massage, relieving fatigue and stress. It is your best option. The ergonomic design makes for superior comfort and ease of use, with ideal balance and weight in the hand.
BathSelect Ravenna Modern 20" Digital Ceiling Mount Bathroom Shower Head Feature:
Installation Instructions for BathSelect Ravenna Digital Ceiling Mount Shower Set
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
Decorative cover
Screws
Pipe 1
Pipe 2
Screw
Bolt
Nut
Water Inlet Pipe
Hole size on ceiling
1.Drawing the line on the ceiling according to the above specification ·Decorative Cover ·pipe 1
2.connect pipe 1 with decorative cover
3.Drill the holes on the ceiling according to the above hole specification and install 4 pipes.
4. According to the right drawing, install four-pipe 2 into pipe 1. Put the screw bolts through the hole on the side to lock pipe 2 with pipe 1.
5.As the right drawing is shown, install four-pipe 2 on the head shower.
6.After fixing the showerhead on the ceiling, connect the showerhose with 2 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall.
