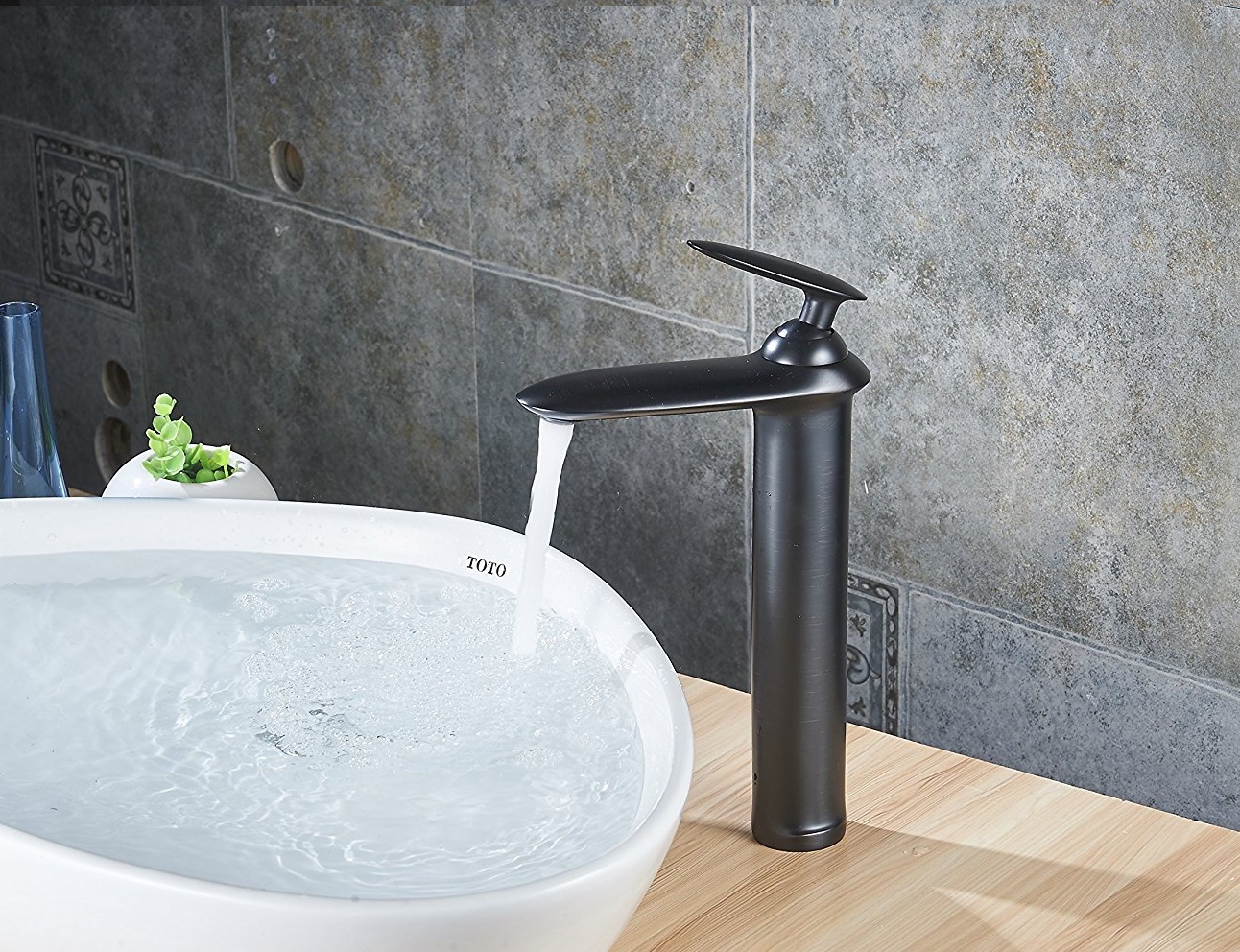

Installation Instructions for Zamora Oil Rubbed Bronze Bathroom Sink Faucet Zamora Oil Rubbed Bronze Bathroom Sink Faucet Zamora is a top-class bathroom sink faucet. With an elegant, yet simple design, in black oil rubbed bronze finish, it will easily fit in both modern and antique style bathrooms. It is deck mount and tall enough to match a variety of bowl sinks. Easy to install, it requires a single hole for mounting and the hot and cold water mix is control via one handle. Only the best materials have been used: the body and spout are made of solid brass, while the handle is made of zinc alloy. The valve cartridge is ceramic, for long lasting life time. It comes complete with accessories and installation instructions. Zamora Oil Rubbed Bronze Bathroom Sink Faucet Specifications Type : Bathroom Sink Faucets Feature : Tall Body Style : Antique Finish : Oil Rubbed Bronze Installation Holes : One Hole Number of Handle : Single Handle Faucet center : Single Hole Valve Type : Ceramic Valve Faucet Body Material : Brass Faucet Spout Material : Brass Faucet Handle Material : Zinc Alloy Item Weight : 4 pounds Product Dimensions : 14.2 x 7.2 x 2.4 inches BathSelect® Manufacturer Warranty Information

2. Attach the provided braided water lines to the faucet until hand tight.

3. Remove the brass lock nuts from the mounting posts, and attach the threaded mounting posts to the faucet body using a Philips screwdriver. Set the brass lock nuts aside for now

4. Set the faucet into its prepared mounting hole.

5. From below, slide the rubber washer onto the mounting posts followed by the metal washer. Hold in place.

6. Secure the faucet by reattaching the brass lock nuts that were removed in step 3. Hand tightens and adjust the faucet until it is properly aligned. Once aligned, use the provided basin wrench to finish tightening the locknuts.

7. Apply plumber’s tape or thread sealant to the threading on each braided water line. Attach the water lines to your main water supply. Ensure that you are connecting the hot and cold lines accordingly.

8. Once installation is complete, turn the main water supply back on from underneath your sink. Check for any leaks underneath.

9. Check to ensure that both cold and hot water running properly. Allow the water to flow for approximately 60 seconds to remove any dust or sediment within the waterlines.
