Installation Instructions for Riviera Light Oil Rubbed Bronze Shower System

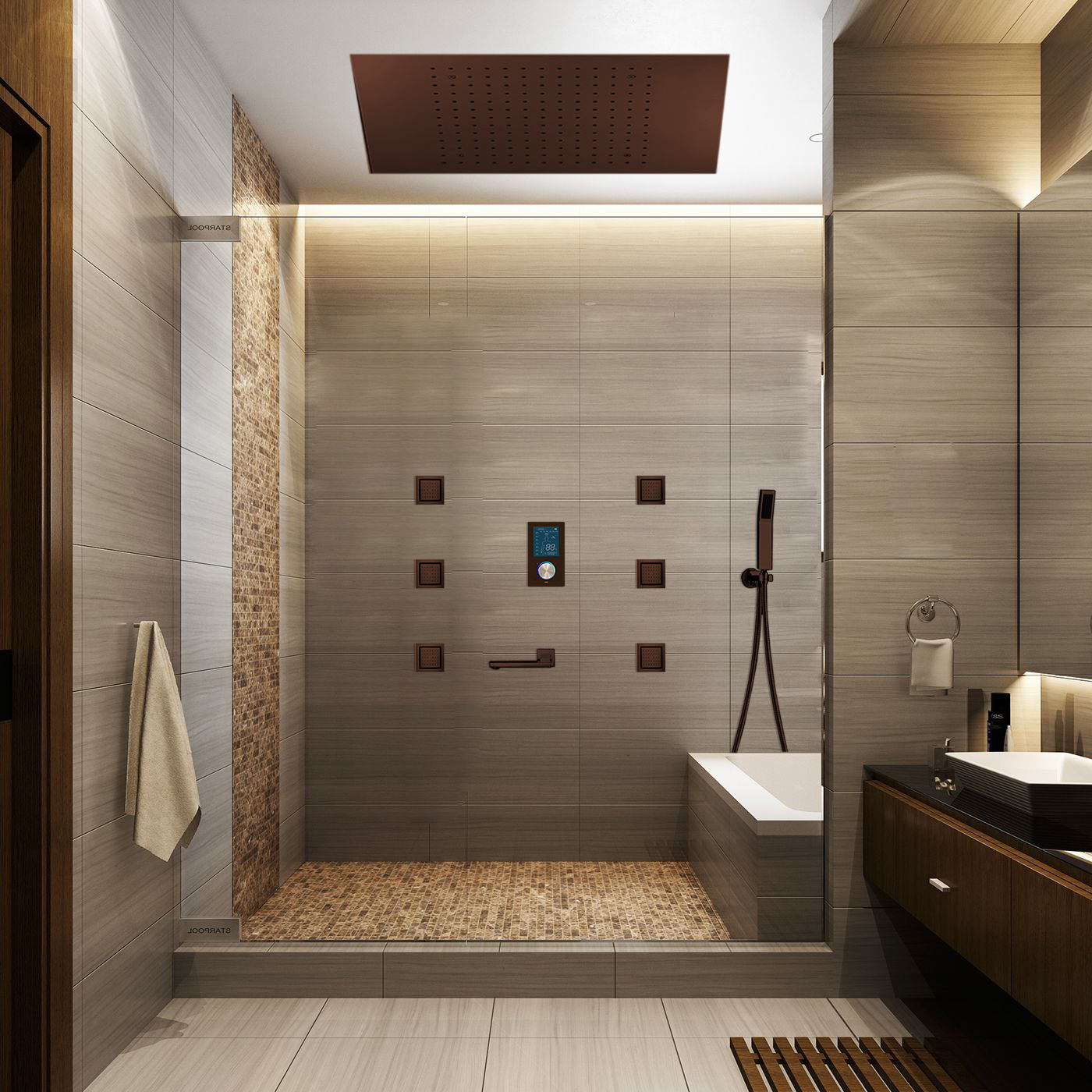

BathSelect Riviera Light Oil Rubbed Bronze 360° Adjustable Body Jets Shower System Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. This high-tech rain shower head powers the LED lights using a built-in hidden dynamo. The lights will automatically turn on when water pressure is turned on .The lights will dim and brighten when you lower and raise the pressure so you can set the perfect mood, water, and light. Never be scalded again by entering a shower that is just too hot. The threading is universal so it will fit any standard shower head by simply unscrewing the old one by hand and attaching the new one. Modern stylish design completely stainless steel finished with ORB is made to match or stand out from your other bathroom fixtures. High quality this modern shower head is made out of stainless steel, so it's made to last. BathSelect Riviera Light Oil Rubbed Bronze 360° Adjustable Body Jets Shower System Features: Brand Name: BathSelect Model Number: BT-866RBD Material: Solid Brass Finish: Light Oil Rubbed Bronze Style: Contemporary Rain Showerhead Showerhead Height (thickness): 0.33 Showerhead Width: 14" Showerhead Length: 20" LED Power Source: Water Flow LED Color: Available without changing color or with LED colors Blue, Green, Red Showerhead Style: Contemporary Rain Shower Installation Style: Mount Recessed Flow Rate: 7.5GPM. Connection: 1/2" US standard (included) Body Jets: 360° Adjustable Body Jets size 5" x 5" BathSelect® Manufacturer Warranty Information Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

• Showerhead
• 11.8" shower hose
• Tee joint
• Expansion bolt
• G1/2" filter net
• H4 inner hexagon

1. Open packages, check all the goods whether everything is ok.

2. Check the size of the connector and the thread size of the water pipes connector in the wall.

3. Clean the water pipes before installing them.

4. At least 2 water electricians to install the showerhead.

5. Pay attention to the water temperature, not over 70 degrees.

6. Water pressure: 0.05 MPA - 0.5 MPA.

7. Adapter is 100-265 V to 12 V, insurance device rated current less than 30 MA.

Connect 1 pcs water hose to 1 Tee Joints and G1/2, G1/2 joint in the middle, then put another side of the shower hose through the hole of shower head size.


Install the decorative panel, use SW4 hexagon wrench tighten 4 screws.

Shower Body-Jet Installation

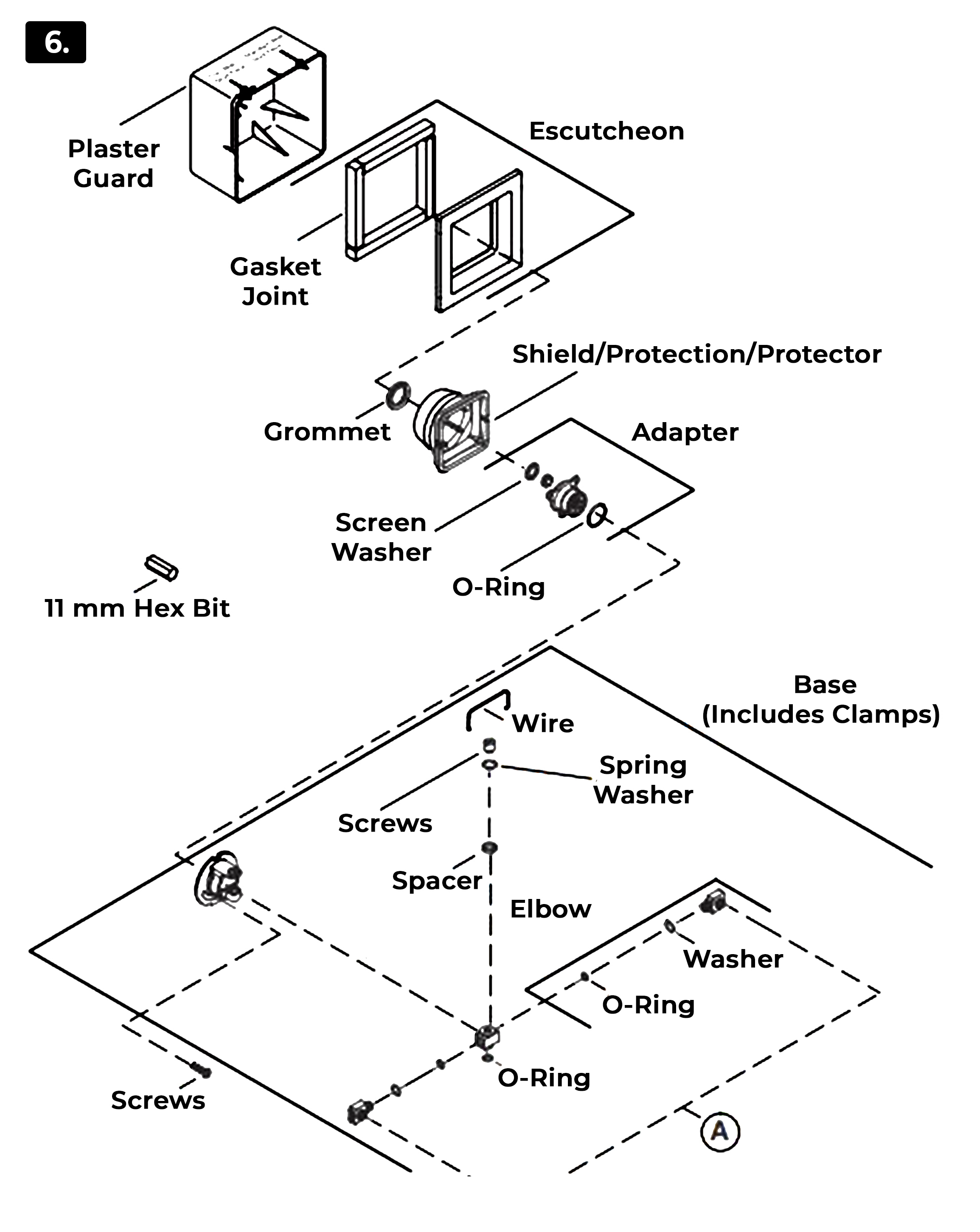

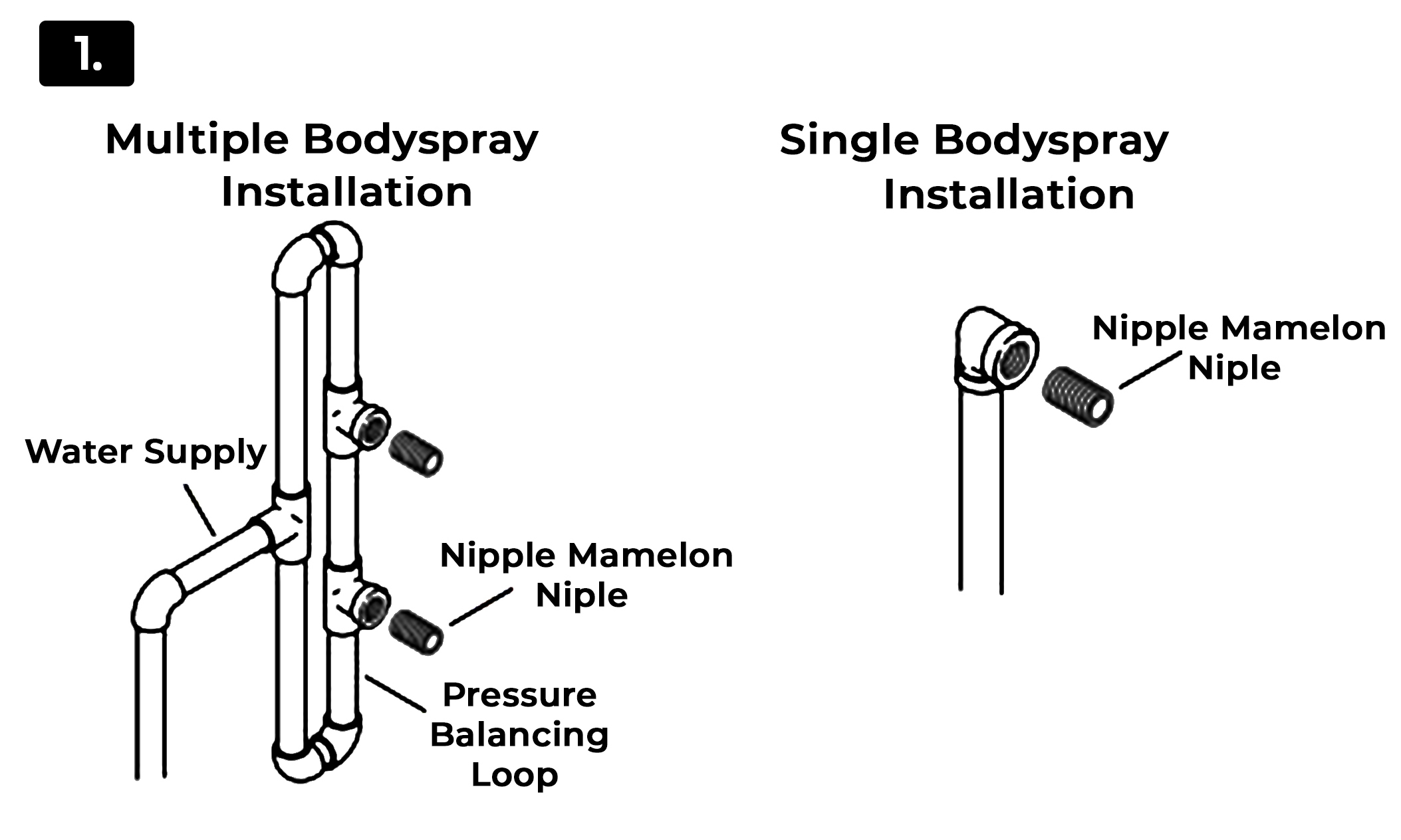

Multiple Bodyspray Installation

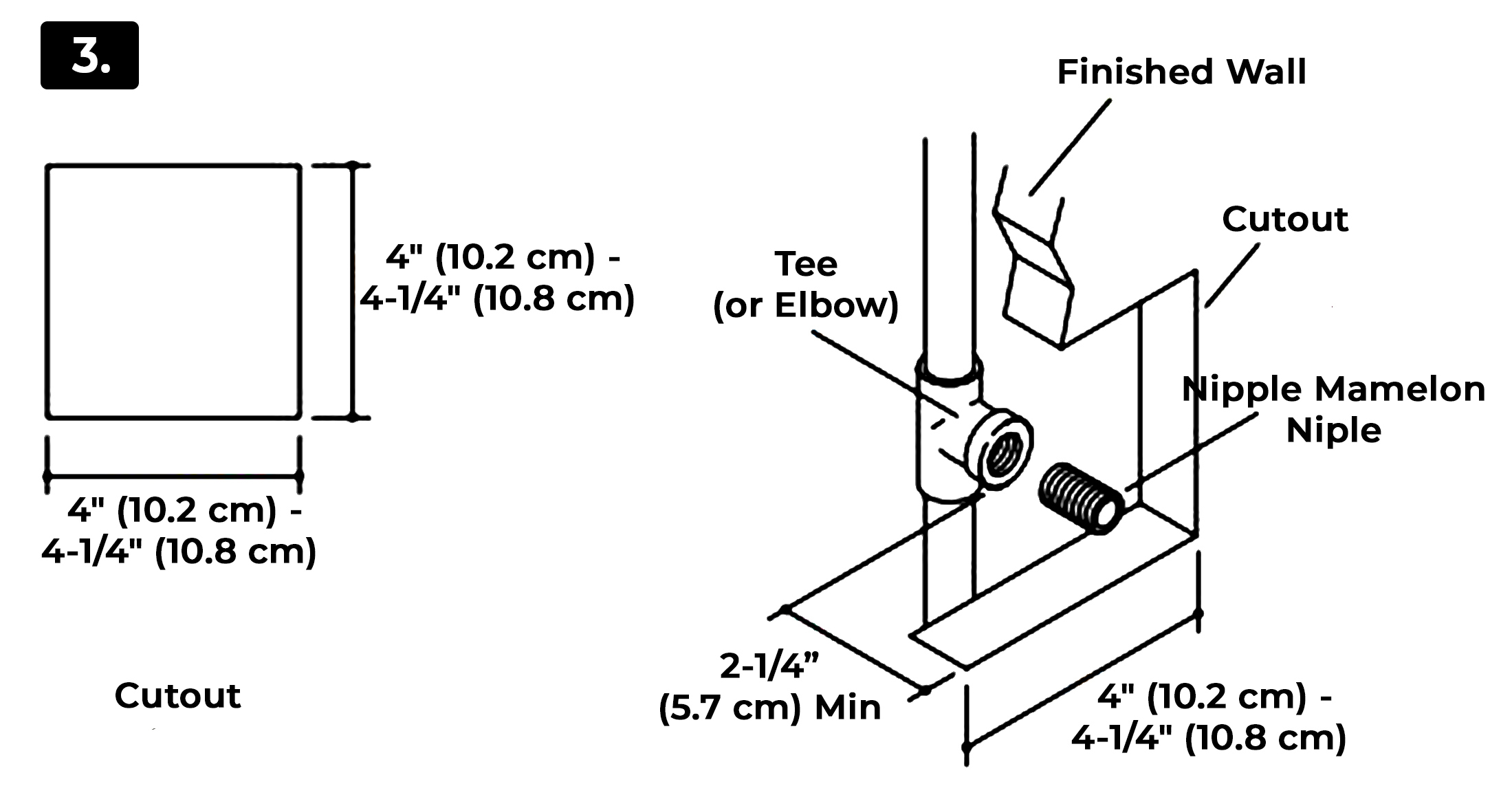

2. Install an elbow to the end of the supply pipe at the bodyspray installation location.

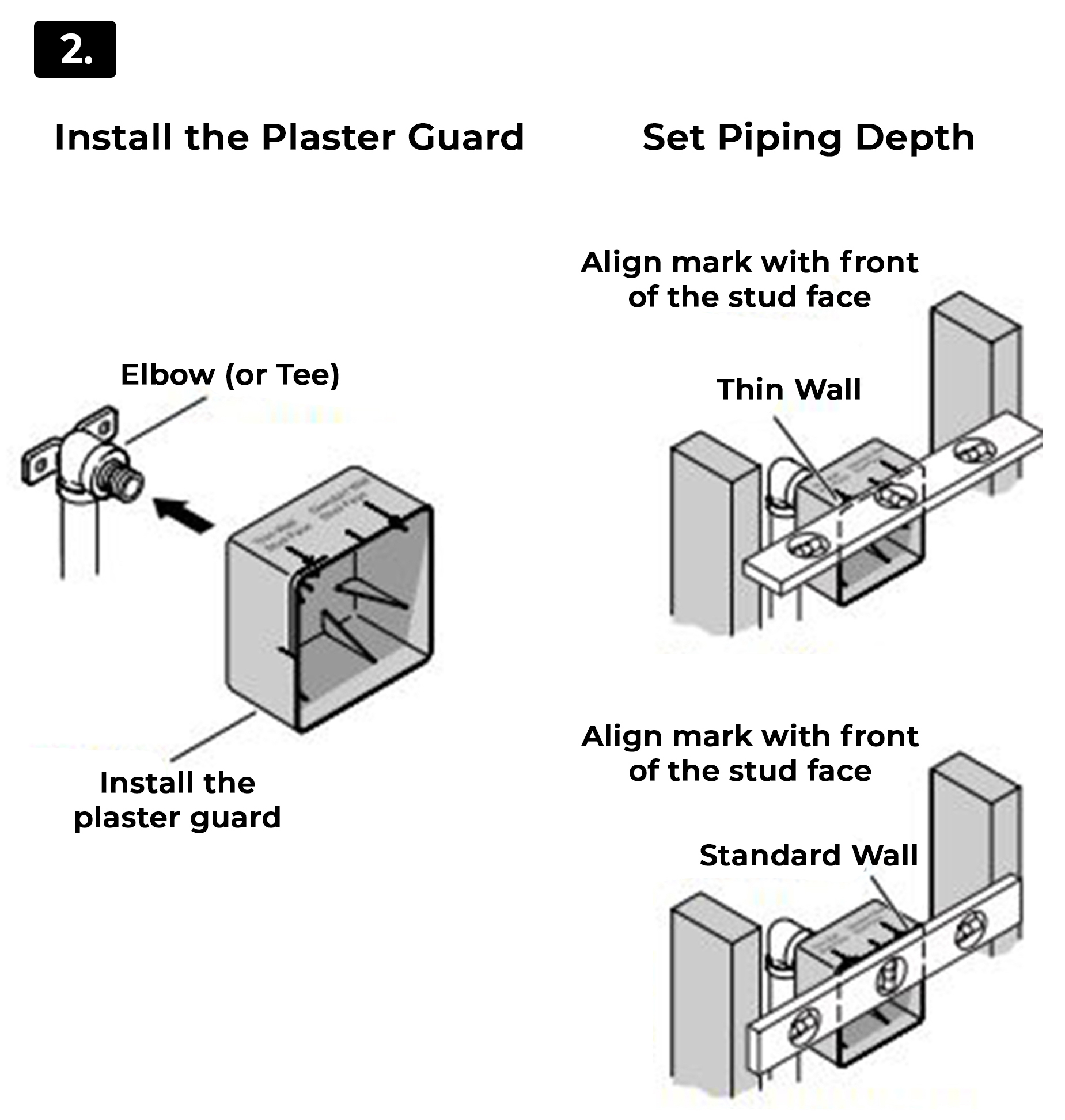

Install the Plaster Guard

Install the plaster guard. Push until the plaster guard is snug against the face of the elbow (or tee).



1. Install the water-resistant wall board.

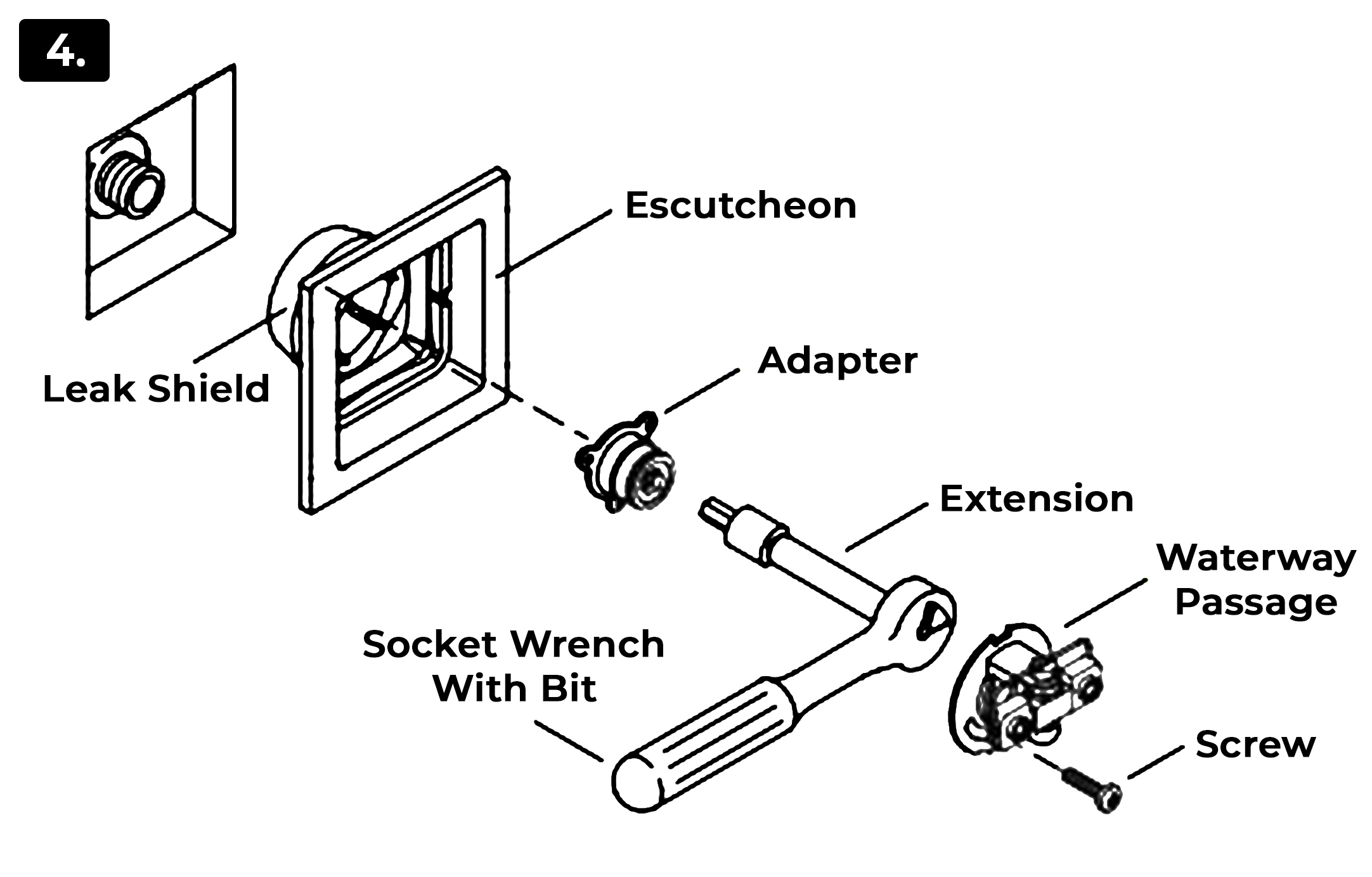

• Escutcheon

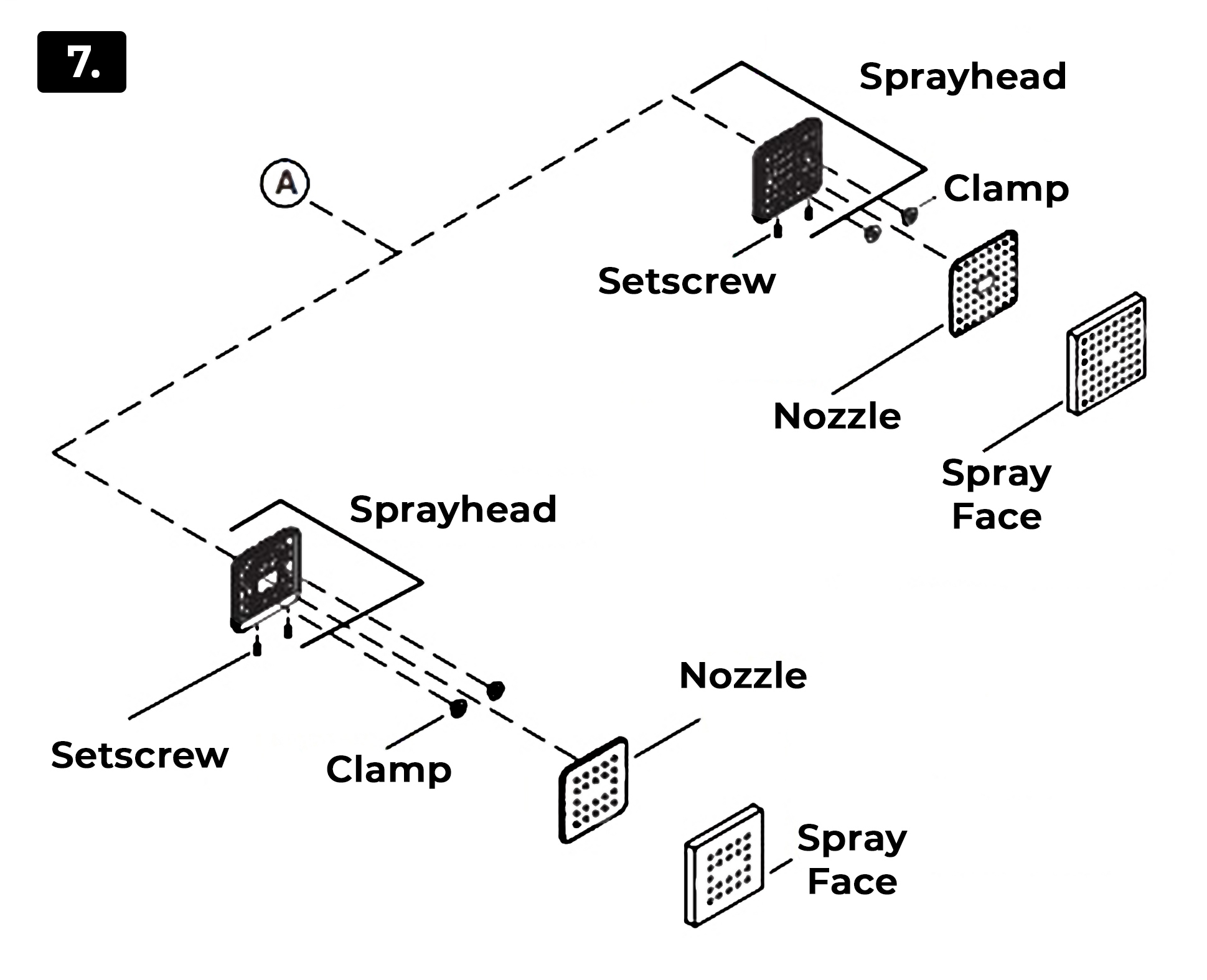

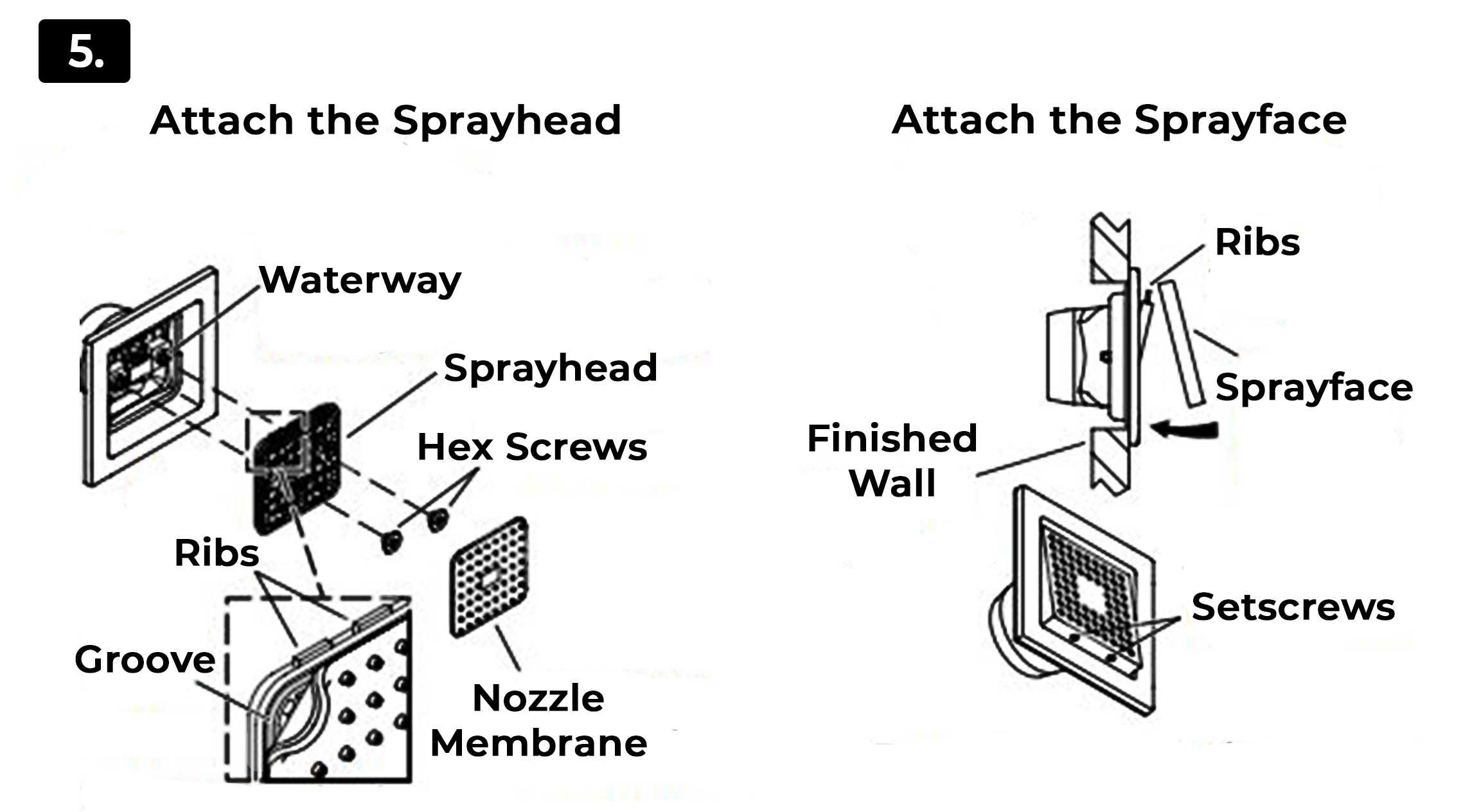

With the ribs of the sprayhead facing up, install the sprayhead to the waterway.



With the ribs of the sprayhead facing up, install the sprayhead to the waterway.

Hand-Held Shower Instructions

5. Hole Locations For Wall Mount

Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

7. Wall Mount Installation

Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A).

8. Drop Elbow & Hose Installation

Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.

Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).


9. Unit Start Up
Turn on hot and cold water supplies, and check al connections for leaks.

10. Final Flushing

For final flushing, turn valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.

11. Shower Arm Installation

Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.

Waring: Make sure Hand Shower (11C) is securely tightened to Hose (11D).

Operation

• Fly-shuttle switch
• Setting
• Power on/off
• LCD Display

Notice

1. The control panel is sensitive, when you install it, please avoid to let it face directly to the water from hand shower and the head shower because water will get it misoperation or lock the control panel.

2. The touch button is the best sensitive area.

3. The touch panel has water splash protection technology. When the system detects misoperation, no response, and need about 1 second to recover.

Function

1. Water TEMP adjust

2. Hand shower

3. Head Shower

4. Water flow adjust

Operation

1. Power on/off

Power on

After electrify, you can touch to make the system ON. When you hear buzzer sound, the fly-shuttle switch and the LCD panel would be lighting. Water TEMP and water flow will be the same as that you set last time. The cursor will be on the icon you using last time. The default working time is 60 minutes.

Power Off

When the system on, touch again to make the system OFF or the default working time is up, when you hear buzzer sound that means have close all the functions.

NOTE: (the background color of the fly-shuttle switch)

LED show blue color when TEMP below 33° C

LED show orange color when water TEMP between 34° C- 41° C

LED show red color when water TEMP over 41° C

2. Hand shower and head shower switch

When system on, rotating the fly-shuttle button left or right. the cursor would move to icon, pressing the fly-shuttle button to open hand shower or head shower (hand shower and head shower are inter-locked, you can turn on only one time), the corresponding operation icon would brighten up on the LCD panel after turning on. The cursor could move to icon, pressing again the fly-shuttle button to close hand shower or head shower, the corresponding function icon would be dark.

Battery Installation

1. Loose the screws on the battery cover and take it off.

2. Putting 4 pcs rechargeable batteries into the battery slot of the host box.

Attention: When putting the battery into the host box, you need to identify the anode and the cathode.

3. Insert the battery cover into the host box, and Lock it with the screws.



Installation of the Control Panel

Caution:

• Using rechargeable NI-MH battery [the 5#(AA) and the capacity is more than 1000Mah).

• After electrify, forbid using the normal 5#(AA) battery. Otherwise, would cause the battery explosion.

• When the power cut, you can use the high quality normal 5#(AA) dry battery as the emergency measure. But you must unplug the adapter.

• When you install the host box, please put the battery into it. If the product hasn't connected with the power in a long time. Please take out the battery from the host box. This way can avoid affecting the battery working life.

• If you want the battery with a longer working life, you can charge the battery every some months.

Installation of the Control Panel

There are two kinds of installation ways shower controller according to the installation site, one way is to recess mount into the wall. Another way is to build into the shower panel.

1. Build the control panel into the shower panel

Step 1: Open a hole (6.7" X 3.7") on the shower panel, putting some glass cement around the back of the control panel and fit it in the hole of the shower panel as picture shown.

Step 2: Fasten the mounting bracket onto the back of the control panel by screws.

Step 3: Install the host box on the back of the shower panel, connect the cold water and hot water pipe, hand shower, and head shower's pipes.

1. Connect the G1/2" hot and cold water inlet pipes to the host box, tighten it and make sure connection is well sealed (as the picture showed).

2. Connect the G1/2" water inlet pipe of the faucet to the water outlet pipe of the host box, tighten it and make sure connection is well seated (as the picture is shown).

Caution:

• When installation, the hot water pipe, and the cold water pipe cannot mix up. Otherwise, the system cannot work.

• When you tighten the connector nut, torque should not exceed 8NM, GB 2.5NM is OK, otherwise, it will damage the connector of the mixing valve and lead to water leaking.

Step 4: Connect the host box control cable with the control cable of shower faucet as an arrow mark on the picture.

Caution: When connecting the two control cables, you must follow the arrow mark which is shown in the cable joint. If not, it will damage the cable joint.

Step 5: Connect the power supply cable of the host box with the adapter.

2. Recess mounted into wall

According to the wall thickness, you can choose installation method A or B.

Method A: If the wall is thin, the host box and the shower control panel can be installed in a different position.

Method B: If the wall is thick, the host box and the shower control panel can be installed in the same position.

Installation step of method A:

Step 1: Open two-hole in the wall, and reserve space for the pipes and adapter.

Step 2: Dill four holes by 6mm diameter on the upside hole for install the wall bracket (as the picture) and put the plastic screw into the hole.

Step 3: Drill four holes by 8mm diameter on the downside hole for the host box installation and put the expansion screws into the hole.

Step 4: Install the wall bracket of control panel and the host box in two holes, according to the pipe's position to set the host box position, adjust the screw of wall bracket to make sure it is concave the wall surface with a 0.5-1 mm difference.

Step 5: Connect the water pipe and the power supply cable of the host box, get water supply to make sure the pipe has no leak. Connect the host box control cable to the control panel hole and fasten it, using the cement to seal the wall and cover by the tiles.

Step 6: Connect the control cable between the host box and the control panel put some silicon on the back case of the control panel and put it on the wall bracket.
