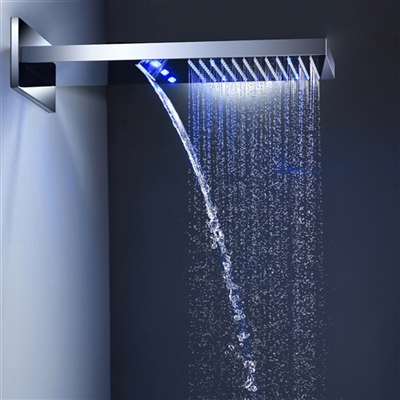

Dijon 22" LED Color Changing Thermostatic Waterfall Rain Shower System

---

A great addition to any modern bathroom. Made to last stainless steel with an elegantly simple design. Step into your new beautiful chrome finish shower with water-powered that changes the LED lights, which provide visual shower temperature cues to reduce water waste. The showerhead will automatically change color according to water temperature, so you know the temperature of the water. Lights are based on water pressure and will activate when you turn on the water. This shower system comes equipped with Six adjustable body massage jets and a handheld shower ensure complete relaxation. This Dijon 22" LED Color Changing Thermostatic Waterfall Rain Shower System provides a luxurious showering experience and is the perfect complement to any modern bathroom. The modern design handheld shower, and an easy-to-use mixer valve, both made from high-quality solid brass. Easy for the elderly and children to shower. Be sure, when it comes to new bathroom rain shower faucets we offer shape, finish, and styles you're looking for.

Dijon 22" LED Color Changing Thermostatic Waterfall Rain Shower System Feature:

Brand Name: BathSelect Item Code: BST-6001R Cold/Hot: Yes Installation Type: Wall Mount Finish: Chrome Feature: Thermostatic Shower, LED Light Flow Rate: 2.5 GPM Number of Handles: 4 Handles Valve Core Material: Ceramic Four functions: waterfall, rainfall, sprayer jets, handheld shower Qty 6 - 2"x 2" Body Jets

BathSelect® Manufacturer Warranty Information

Installation Instructions for Dijon 22" LED Rain Shower System

Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

1. Open the top cover and drill according to the marked position.

• Mark by the position of the four holes.
• Take care to avoid wires and pipes to prevent damage.
• Be sure to confirm that the four holes are on the same horizontal line.

2. Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.

Hand-Held Shower Instructions

5. Hole Locations For Wall Mount

Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

7. Wall Mount Installation

Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A).

8. Drop Elbow & Hose Installation

Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.

Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).


9. Unit Start Up
Turn on hot and cold water supplies, and check al connections for leaks.

10. Final Flushing

For final flushing, turn valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.

11. Shower Arm Installation

Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.

Warning: Make sure Hand Shower (11C) is securely tightened to Hose (11D).

Shower Body Jets Installation

1. Set the decorative cover on the body jet.

2. Roll the raw material belt in the thread screws.

3. Use a wrench to tighten 6 body jets on the water outlet holes in a clockwise direction.

A.

Valve Control Installation

a. Release 4 handwheel levers according to the above directions.

b. Take apart the embed valve, panel, and handwheel.

1. Dig the embed space for the pipe on the wall according to the specification of the valve.

2. Dig 4 holes according to the position of the screws.

3. Use a hammer to thwack the screws into 4 holes.

4. Fix the valve body with 4 screws.

5. Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.

6. After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water.

7. Fix the decorative panel on the embed valve body.

8. Screw the handwheel arms with the handwheels.
