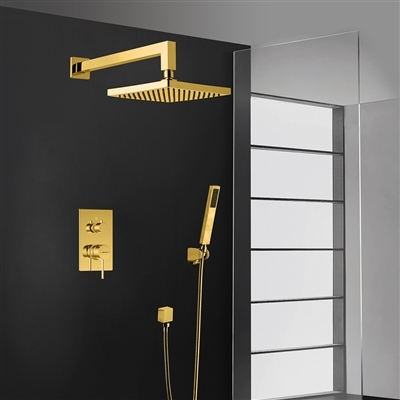

You are here: Home > How to install Bravat Wall Mount Gold Square Shower Head ?

Bravat Wall Mount Shower Square ad With Hand-Held Shower & Thermostatic Shower Mixer

Stylish BathSelect Bravat ancient square antique is a bathroom shower set with a very attractive and fabulous look that gives you a classic look to your bathroom. Solid brass and construction with a gold finish and a ceramic valve core material for long durability that will upgrade your bathroom with a modern and cool look. The showerhead has a rainfall function where you can experience the true feeling of rain. You can install the rain shower head and handheld showerhead where you like just depend on the position of concealed water pipe. This is one of the simplest products we offer, yet indispensable when it comes to installing a brand new shower.

Bravat Wall Mount Gold Square Shower Head With Hand-Held Shower & Mixer Features:

  • Brand Name: Bravat
  • Model Number: BS5009
  • Type: Shower Set
  • Valve Core Material: Ceramic
  • Style: Contemporary
  • Number of Handles: Dual Handle
  • Material: Solid Brass
  • Water pressure:1.5 bar
  • Temperature:0-100
  • Valve core material: Ceramic
  • Specification:1/2''
  • Installation: Wall-mount
  • Surface finishes: Gold
  • Function: Shower set
  • Flow Rate: 2.5 GPM

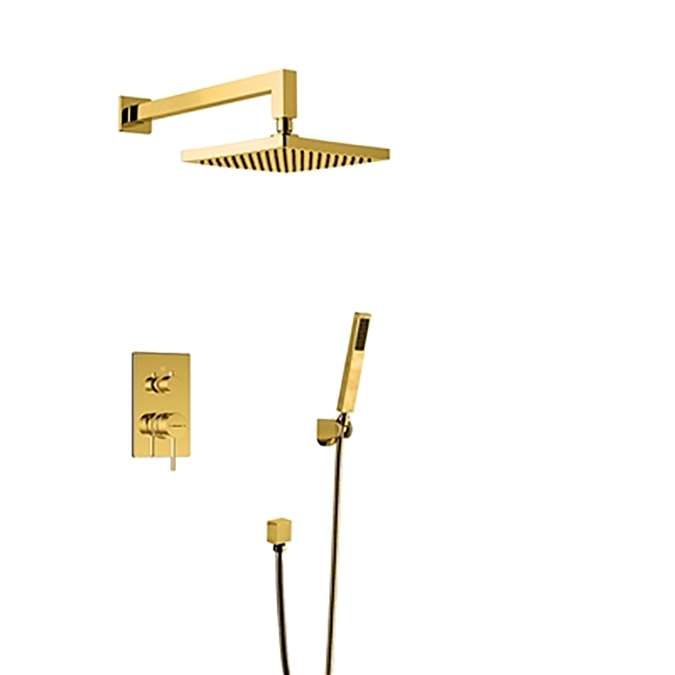

Bravat Wall Mount Gold Square Shower Head With Hand-Held Shower & Mixer
BathSelect® Manufacturer Warranty Information

Installation Instructions For Bravat Wall Mount Gold Square Shower Head



  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

Bravat Wall Mount Gold Square Shower Head





Hand-Held Shower Instructions





5. Hole Locations For Wall Mount
Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

7. Wall Mount Installation
Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A).





8. Drop Elbow & Hose Installation
Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.
Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).


9. Unit Start Up
Turn on hot and cold water supplies, and check al connections for leaks.


10. Final Flushing
For final flushing, turn valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.


11. Shower Arm Installation
Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.

Warning: Make sure Hand Shower (11C) is securely tightened to Hose (11D).
