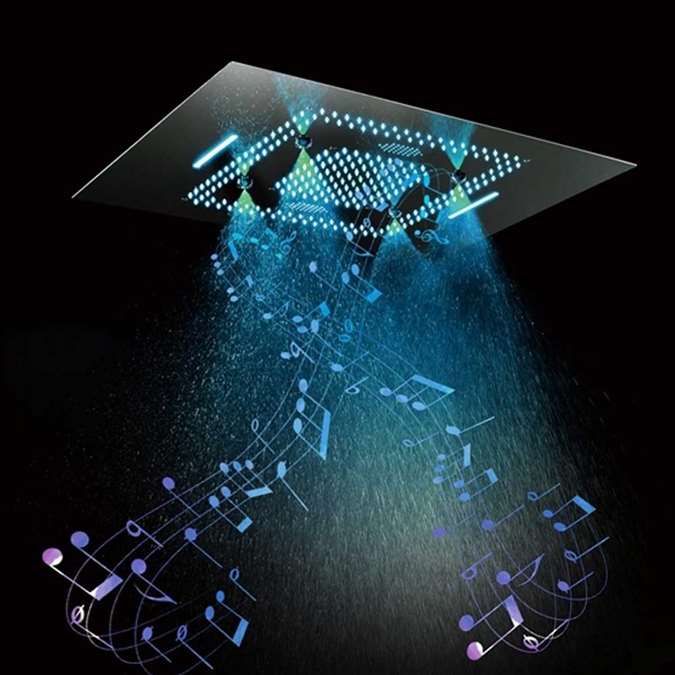

BathSelect Stylish Summer Shower Head Remote Control Musical Chrome Ceiling Embedded Shower
BathSelect rectangular musical LED shower, a bathroom ceiling mount shower and It has multiple color changing features with remote control. It comes in a polished chrome finish and the installation is a ceiling mount. Fixed support type. Water flow is 16-28L/min.High-quality copper casting. Enjoy the new luxury led shower head and give a new look and feel to your shower room and bathroom. Get fresh body massage and feel relaxed. 64 different colors remote controlled changing led lights while you take a shower. It is easy to install this showerhead.
Bathselect LED Shower Head Description: - Type: Bathroom Shower
- Product Code: BS9608
- Product Brand: BathSelect
- Installation Type: Ceiling Mount
- Feature: Rainfall Showerhead
- Material: Stainless Steel
- Surface Finish: Chrome
- Showerhead Finish: Polished
- Shower Shape: Rectangle
- Shower Size: 24" x 31"
- Fixed Support: Yes
- Style: Single Head
- Light Type: LED Light
- Music: Bluetooth Connection
- Minimum Water Pressure: 0.3 MPA
- Remote Control: Yes
- Color Control: 64 Colors
- Water Flow: 16-28L/min
- Music Song: Bluetooth Connection
- Water Function: Misty/ Waterfall/ Rainfall
- Thread Interface: G 1/2 inch
- Product Weight: 15.94 lbs
- Product Dimension: 26.77in x 34.65in x 11.02 inches
|  |
BathSelect® Manufacturer Warranty Information
Installation Instructions for BathSelect Stylish Summer Shower Head
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
|  |
  Rainfall
Self-cleaning silica gel
 > Water inlet-> Voltage inverter
 -> 304 Stainless steel polished.-> Dimensions : 19.7"x14.2"
 External Power Source: 200v transform into 12vOverhead shower head decomposition.
Showerhead lists :
- Showerhead
- 11.8" shower hose
- Tee joint
- Expansion bolt
- G1/2" filter net
- H4 inner hexagon
Attention1. Open packages, check all the goods whether everything is ok. 2. Check the size of the connector and the thread size of the water pipes connector in the wall. 3. Clean the water pipes before installing them. 4. At least 2 water electricians to install the showerhead. 5. Pay attention to the water temperature, not over 70 degrees. 6. Water pressure: 0.05 MPA - 0.5 MPA. 7. Adapter is 100-265 V to 12 V, insurance device rated current less than 30 MA.
According to the four mounting holes on the mounting bracket, use Electric drill play mounting holes.
a) Through the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on the level.
b) Use explosion screw fixed mounting bracket on the ceiling, pay attention to the explosion screw can adjust the height, and use level adjust the mounting bracket to level.
Connect 1 pcs water hose to 1 Tee Joints and G1/2, G1/2 joint in the middle, then put another side of the shower hose through the hole of shower head size.
Install the decorative panel, use SW4 hexagon wrench tighten 4 screws.
|
