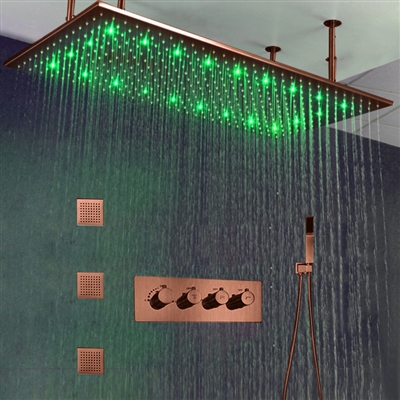

BathSelect Solid Brass Multi Color LED Rainfall Shower Head With Handheld Shower And Thermostatic Mixer In Light Oil Rubbed Bronze Finish

Color your daily shower with this beautiful and luxury color-changing LED shower head. The LED light is powered by water flow, and will be activated once the water is turned on. The two ways wall mount shower head is constructed using solid brass and comes in light oil rubbed plated finish. Its features are rainfall to which LED adds, especially with its changing colors. It also has a SPA mist shower function, which adds total comfort and luxury to your showering experience. The showerhead is free of any shower arm or slide bar, but it is certainly installed with such elements that ensure you a comfy bath while complementing your home d้cor. It comes with a handheld shower and a thermostatic water mixer. If you already have oil rubbed bronze tone in your bath fixtures, it makes perfect sense to invest in an oil rubbed shower set. This LED shower head can be installed in minutes, by simply unscrewing the old showerhead and screwing in the new shower set. Just turn on the fun in your shower by simply turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. It comes with an installation guide.

BathSelect Solid Brass Multi Color LED Rainfall Shower Head With Handheld Shower And Thermostatic Mixer Features:

  • Brand Name: BathSelect
  • Model Number: BS9939
  • Type: Thermostatic LED Shower Set
  • Material : Stainless steel
  • Surface treatment : Brushed
  • Model Number : BS9939
  • Showerhead Size : 20" by 40"
  • Valve core material : Ceramic
  • Finish: Light Oil Rubbed Bronze
  • Type : Fixed rotary type
  • Cold / hot water control type : Double handle ,double control
  • Features : Cold and Hot, LED lights
  • Style : Contemporary
  • Size : 15.7 inches (400 mm)
  • Shower feature 1 : Rainfall Shower Bathroom Shower Set
  • Shower feature 2: Thermostatic water mixer
  • LED Ceiling Shower power adapter : 90-250 v
  • Water flow : 3.96-18.49 gal/min(15-70 L / min)
  • BathSelect Solid Brass Multi Color LED Rainfall Shower Head With Handheld Shower And Thermostatic Mixer In Light Oil Rubbed Bronze Finish
    BathSelectฎ Manufacturer Warranty Information

    Installation Instructions For Solid Brass Multi Color LED Rainfall Shower Head With Handheld Shower


    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.






    Solid Brass Multi Color LED Rainfall Shower Head With Handheld Shower And Thermostatic Mixer In Light Oil Rubbed Bronze Finish



    • Decorative cover
    • Screws
    • Pipe 1
    • Pipe 2
    • Screw
    • Bolt
    • Nut
    • Water Inlet Pipe

    Hole size on ceiling
    1. Drawing the line on the ceiling according to above specification
    • Decorative Cover
    • Pipe 1
    2. Connect pipe 1 with decorative cover


    3. Drill the holes on the ceiling according to above hole specification and install 4 pipes.
    4. According right drawing, install four-pipe 2 into pipe 1. Put the screw bolts through the hole on the side to lock pipe 2 with pipe 1.


    5. As the right drawing shown, install four-pipe 2 on the head shower.
    6. After fixing the showerhead on the ceiling, connect the shower hose with 2 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall.


    5.
    As the right drawing is shown, install four-pipe 2 on the head shower.
    6. After fixing the showerhead on the ceiling, connect the shower hose with 4 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall.



    Remarks: Ceiling mounted shower head come with fixing bar installation
    1. Draw size on ceiling
    2. Install fixing bar on ceiling



    3. Install fixing bar on shower head



    4. Put shower head bar on ceiling fixing bar.
    The showerhead installation is now complete.

    Hand-Held Shower Instructions






    5. Hole Locations For Wall Mount
    Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

    7. Wall Mount Installation
    Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A).





    8. Drop Elbow & Hose Installation
    Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.
    Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).


    9. Unit Start-Up
    Turn on hot and cold water supplies, and check all connections for leaks.


    10. Final Flushing
    For final flushing, turn the valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.


    11. Shower Arm Installation
    Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.

    Warning: Make sure Hand Shower (11C) is securely tightened to Hose (11D).

    Shower Body Jets Installation



    Multiple Bodyspray Installation
    • Water Supply
    • Nipple Mamelon Nipple
    • Pressure Balancing Loop

    1. Route the water supply lines.
    2. If installing more than one bodyspray off the same supply line, construct a pressure balancing loop. Locate a tee along the loop at each bodyspray installation location.
    3. Do not strap the pipes at this time.

    Single Bodyspray Installation
    • Nipple Mamelon Nipple
    1. Route the water supply line.
    2. Install an elbow to the end of the supply pipe at the bodyspray installation location.


    Install the Plaster Guard
    • Elbow (or Tee)
    • Install the plaster guard

    Set Piping Depth
    Align mark with front of the stud face
    • Thin Wall

    Align mark with front of the stud face
    • Standard Wall

    Install the plaster guard. Push until the plaster guard is snug against the face of the elbow (or tee).



    1. Install the water-resistant wall board.
    2. Cut out a 4" (10.2 cm) to 4-1/4" (10.8 cm) square at each the installation location.
    3. Install the finished wall material.


    • Escutcheon
    • Leak Shield
    • Adapter
    • Extension
    • Socket Wrench With Bit
    • Screw
    • Waterway Passage

    1. Insert the escutcheon into the rough opening. The double ribs of the leak shield should be facing up.
    2. If the leak shield makes contact with the elbow: Enlarge the hole in the back of the leak shield to 1-1/4" (3.2 cm).
    3. Thread the adapter onto the nipple using the provided 11 mm bit, 11 mm or 7/16" socket, extension and socket wrench. Use masking tape to hold the bit in place, as the bit could fall off and cause damage.
    IMPORTANT! The escutcheon should sit loosely at this point. If it is tight against the wall, use a longer pipe nipple.
    4. Align the groove in the waterway with the double ribs on the leak shield.
    5. Press the waterway into place over the adapter. Secure the waterway to the adapter with the screw provided.
    6. Verify that the escutcheon does not turn or shift.



    With the ribs of the sprayhead facing up, install the sprayhead to the waterway.



    With the ribs of the sprayhead facing up, install the sprayhead to the waterway.




    A.

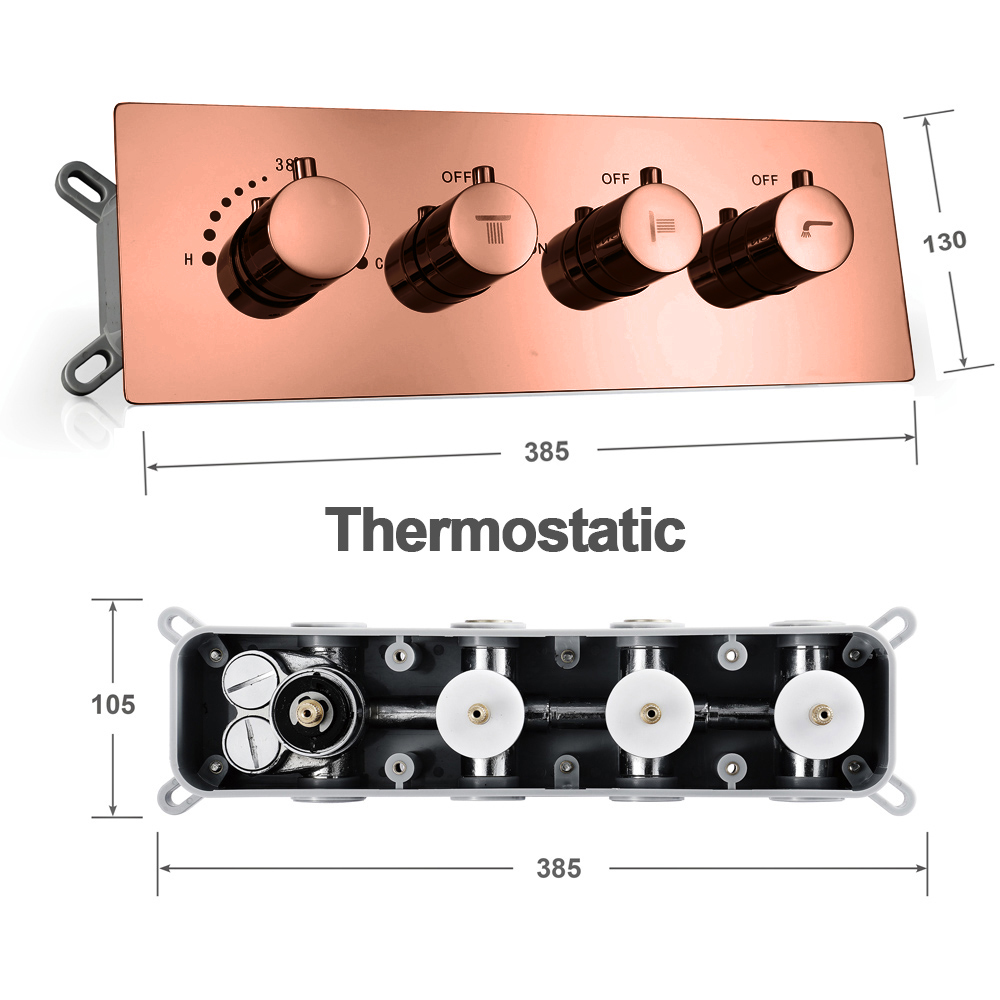

    Valve Control Installation

    a. Release 4 handwheel levers according to the above directions.
    b. Take apart the embed valve, panel, and handwheel.
    1. Dig the embed space for the pipe on the wall according to the specification of the valve.
    2. Dig 4 holes according to the position of the screws.
    3. Use a hammer to thwack the screws into 4 holes.
    4. Fix the valve body with 4 screws.
    5. Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.
    6. After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water.
    7. Fix the decorative panel on the embed valve body.
    8. Screw the handwheel arms with the handwheels.
