You are here: Home > Installation Instructions BathSelect Modern Summer Shower Head

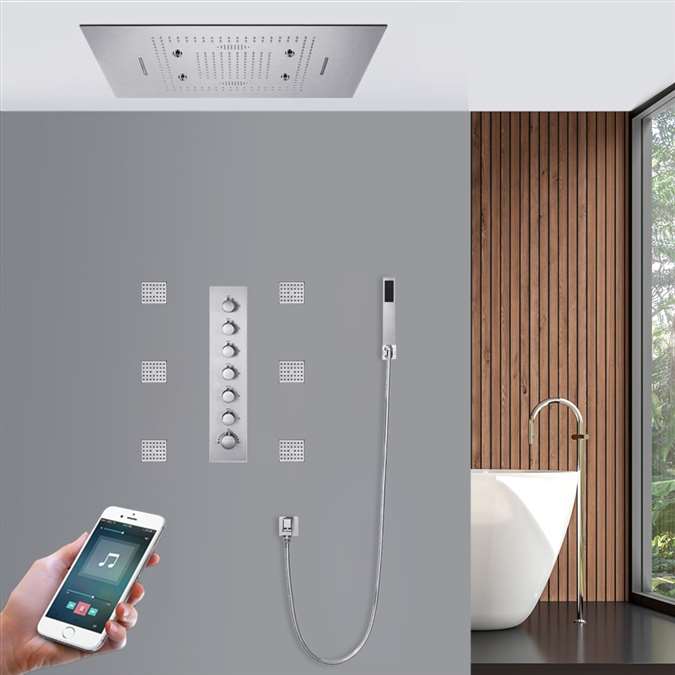

BathSelect Modern Summer Shower Head Phone Control Musical Chrome Ceiling Embedded Shower

BathSelect rectangular musical LED shower comes in its a bathroom ceiling mount shower and It has multiple colors changing feature with remote control. It comes in a chrome finish polished and the installation is a ceiling mount. It fixed the support type. Water flow has 16-28L/min. It comes with high-quality copper casting & Enjoys new luxury led shower head and give a new look and feel to your shower room and bathroom. Get fresh body massage and feel relax. 64 different colors phone control changing led lights while you will take shower. It is easy to install showerhead.

Juno LED Shower Head Specifications:

  • Type: Bathroom Shower
  • Product Code: BS9611
  • Product Brand: BathSelect
  • Installation Type: Ceiling Mount
  • Feature: Rainfall Showerhead
  • Material: Stainless Steel
  • Surface Finish: Chrome
  • Showerhead Finish: Polished
  • Shower Shape: Rectangle
  • Shower Size: 24" X 31"
  • Fixed Support: Yes
  • Style: Single Head
  • Light Type: LED Light
  • Special Feature: Thermostatic Faucet
  • Music: Bluetooth Connection(Android Operating System)
  • Minimum Water Pressure: 0.3MPA
  • Color Control: 64 Colors
  • Water flow: 16-28L/ Min
  • Music Song:Bluetooth Connection(Android Operating System)
  • Water Function: Misty/ Waterfall/ Rainfall
  • Thread Interface: G1/ 2 inch
  • Product Weight: 15.94 lbs
  • Product Dimension: 26.7in X 34.6in X 11.02 inches
BathSelect Modern Summer Shower Head Phone Control Musical Chrome Ceiling Embedded Shower
BathSelect® Manufacturer Warranty Information

How to Install BathSelect Modern Summer Shower Head


Installation Instructions For BathSelect Modern Summer Shower Head Phone Control Musical Chrome Ceiling Embedded Shower

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

shower BathSelect Modern Summer Shower Head Phone Control Musical Chrome Ceiling Embedded Shower

Shower Head Installation Instructions

Step 1:Step 2:
showerhead
Shower Head Installation Instructions
Step 3:Step 4:

Use a hexagon wrench to lose the lock screws then separate the showerhead assembly and bracket.
Dig 4 Ø10 holes on the ceiling according to the dimension of the screws.
Shower Head Installation Instructions

Step 5:Step 6:
Use a hammer to thwack the 4 screws into 4 holes.

Install the bracket on the expansion screws then use copper sleeve wrench to lock 4 screws.
Shower Head Installation Instructions

Step 7:Step 8:
Make sure all the water inlet pipe connected well without leaking before insert the power plug into the socket.Fix the shower assembly on the bracket by turn the locking bolt.

Shower Head Installation Instructions

Step 9:Step 10:





Step 11:Step 12:




Step 13:


Shower Hand Held Shower Installation Instructions

Step 1:Step 2:
HandHeld
Shower
Hand
Held
Shower

Handheld Shower
Step 3:Step 4:


Tub Spout & Hand Shower Outlet Installation
• Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow.

Note:
This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.

• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint.

Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.

Shower Wall Holder Installation
Decide the position for the shower head holder on the wall within the bath showering area and proceed as follows:
• Hold the hand shower head holder fixing plate in a suitable position on the wall, mark out the position of the holder. Mark the two locating holes, these are 17mm center.
• Drill and plug the wall. Use an appropriate masonary drill, but if the wall is plasterboard or a soft building block, use special wall plugs and an appropriate drill bit.
• Slide the inserts onto the screws in the orientation. Secure the inserts by tightening the screws.
• Slide the hand shower head holder body onto the inserts and secure by tightening the grub screw facing down.




Shower Body Jets Installation Instructions

Step 1:Body
Sprays
Step 2:
installation
Step 3:Step 4:



Step 5: (Pressure Balancing Loop)Step 6:




Rough-in Suggestion:

This installation requires a 1/2" male threaded pipe fitting to extend 1/4" beyond the finished surface. The plumber should install a properly anchored 1/2" female pipe fitting (i.e. a drop-ear ell) recessed into the wall, into which a brass pipe nipple of proper length can be fitted once the finished wall is complete.
Note: The hole size opening should be 1.5" max diameter.

Bodyspray placement:

Custom shower systems are sized to the user or users. Bodysprays are normally placed at the upper back, middle back, and upper thigh. Always position bodysprays according to the preferences of the user(s).

Pressure Balancing Loop:
If installing bodysprays in a bank of 3 or fewer, a pressure balancing loop is not necessary.
If installing bodysprays in a bank of 4 or greater, a pressure balancing loop must be used to keep the pressure even between the bodysprays.

Shower Thermostatic Mixer Installation Instructions

Step 1:Step 2:
Mixer Valve

1. Embedded Valve Body
2. Decorative Panels
3. Handwheel Arms
4. Expansion Screws
Mixer Control Valve Installation Instructions
Step 3:Step 4:

Release Six handwheel levers according to the above directions.Take apart the embed valve, panel, and handwheel.
Mixer Control Valve Installation Instruction
Step 5:Step 6:
Dig the embed space for the pipe on the wall according to the specification of the valve.Dig 4 holes according to the position of the screws.
Mixer Control Valve Installation Instruction
Step 7:Step 8:
Use a hammer to thwack the screws into 4 holes.Fix the valve body with 4 screws.
Mixer Control Valve Installation Instruction
Step 9:Step 10:
Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water.
Mixer Control Valve Installation Instruction
Step 11:Step 12:
Fix the decorative panel on the embed valve body.Screw the handwheel arms with the handwheels.
Step 13:
