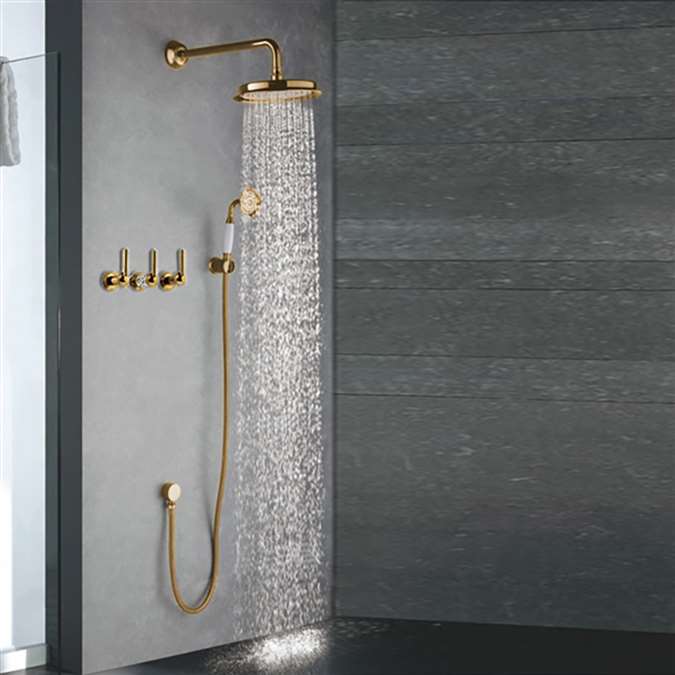

Naples Luxury Gold Shower Set with Hand Shower & Mixer

Enhance your modern bathroom with the Naples Shower Set which gives you a luxurious bathing experience including a hand shower and triple handle mixer. The Naples Shower Set comes in a Gold Finish and has a ceramic valve core. Constructed from solid brass with a high-quality gold finish the thermostatic shower valve features stylish yet easy to use handles that control the flow and temperature of the water and a diverter that allows you to switch between the fixed head or the hand shower. Made from stainless steel the large fixed head not only looks sleek and modern but delivers a refreshing showering experience. What makes it distinguishable is its elegant finish and adherence to the best quality standards. It is tested at 1.6Mpa water pressure for quality assurance.

Naples Luxury Gold Shower Set with Hand Shower & Mixer Features:

Brand Name: BathSelect

Model Number: BS172GS

Type: Shower Set

Cold / Hot Water: Yes

Valve Core Material: Ceramic

Surface Treatment: Polished

Surface Finish: Gold

Installation Type: Wall Mount

Style : Contemporary

Number of Handles: Triple Handles

Material: Solid Brass

Naples Luxury Gold Shower Set with Hand Shower & Mixer

BathSelect® Manufacturer Warranty Information

Installation Instruction for Naples Luxury Gold Shower Set

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower Head Installation

Use your hands counterclockwise to unscrew the old showerhead and removed it.
Take out the showerhead, make sure the shower filter is placed in the connector.
Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
Use your hands clockwise to tighten showerhead.

Hand Held Shower Installation

Parts List

A. Hand Shower

B. Wall Anchors (x2)

C. Screws (x2)

D. Wall Bracket

E. Cap

F. Hose

G. Screen Washer

Place the screen washer in the end of the handshower hose. Screw the hose to the handshower.

If the flow of water becomes noticeably less, remove and clean the screen washer.

Scale Removal

The handshower incorporates the cleaning system. If scale deposits are noticed in the spray channels, turn the water on lightly and rub the spray channels with a finger or a sponge.

If scale deposits are noticed on the spray face, pour about 3/4" of a commercial scale remover into a shallow dish. Dilute the remover according to the label instructions.

Soak only the spray face in the solution for the amount of time specified on the label.
