The Reno 40 × 20 shower set is designed for extensive overhead coverage and a dramatic luxury-shower experience. Stainless-steel construction and a broad spray area are major strengths, but the fixture’s size can require substantial support, water volume and drainage capacity. Installation should be planned before ceiling completion, with reinforced mounting, suitably sized supplies, accurate valve placement and full leak testing.

VIEW RENO 40 × 20 INSTALLATION →

How to Install Reno 40x20" Luxury Shower Set Stainless Steel

Installation Instructions for Reno 40x20" Luxury Bath Shower Faucet Set Stainless Steel Rain Shower Head With Brass Valve, Hand Shower And Massage Spray

Reno 40x20" Luxury Bath Shower Faucet Set Stainless Steel Rain Shower Head with Brass Valve, Hand Shower and Massage Spray

Reno Shower Set Details:

Type: Bath & Shower Set
Cold/Hot Water Control Type: Single Holder Dual Control
Style: Contemporary
Surface Treatment: Polished
Type: Fixed Support Type
Valve Core Material: Ceramic
Surface Finish: Chrome
Bath Shower Type: Shower Set
Model Number: 40LBSF
Head shower Material: 304 stainless steel in brushed
Showerhead Size: 20"x40"
Thread: G1/2"
Shower head Water flow: 14-18L/min
Body jets size: 4 inches
6 body jets flow rate: 48L/min
Valve: ceramic
Valve style: hot and cold mixed water
Install: ceiling mount
Hand shower,valve,body jets material: brass polish
Number of Handles: 4

Features of Brass Shower Head Set:

Easy Installation
Each shower process a wonderful experience
Safe use
International standard G1/2"
Color: Silver
Material: 304 stainless steel and brass
Surface: brushed and polish

Package Includes:

1 x Shower Head
4x ceiling arms
1x brass valve
1x hand shower
1x shower hose
6X 4 inches body jets
Install accessory

Reno 40x20" Luxury Bath Shower Faucet Set Stainless Steel Rain Shower Head with Brass Valve, Hand Shower and Massage Spray

BathSelect® Manufacturer Warranty Information BathSelect Product Warranty

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

showe

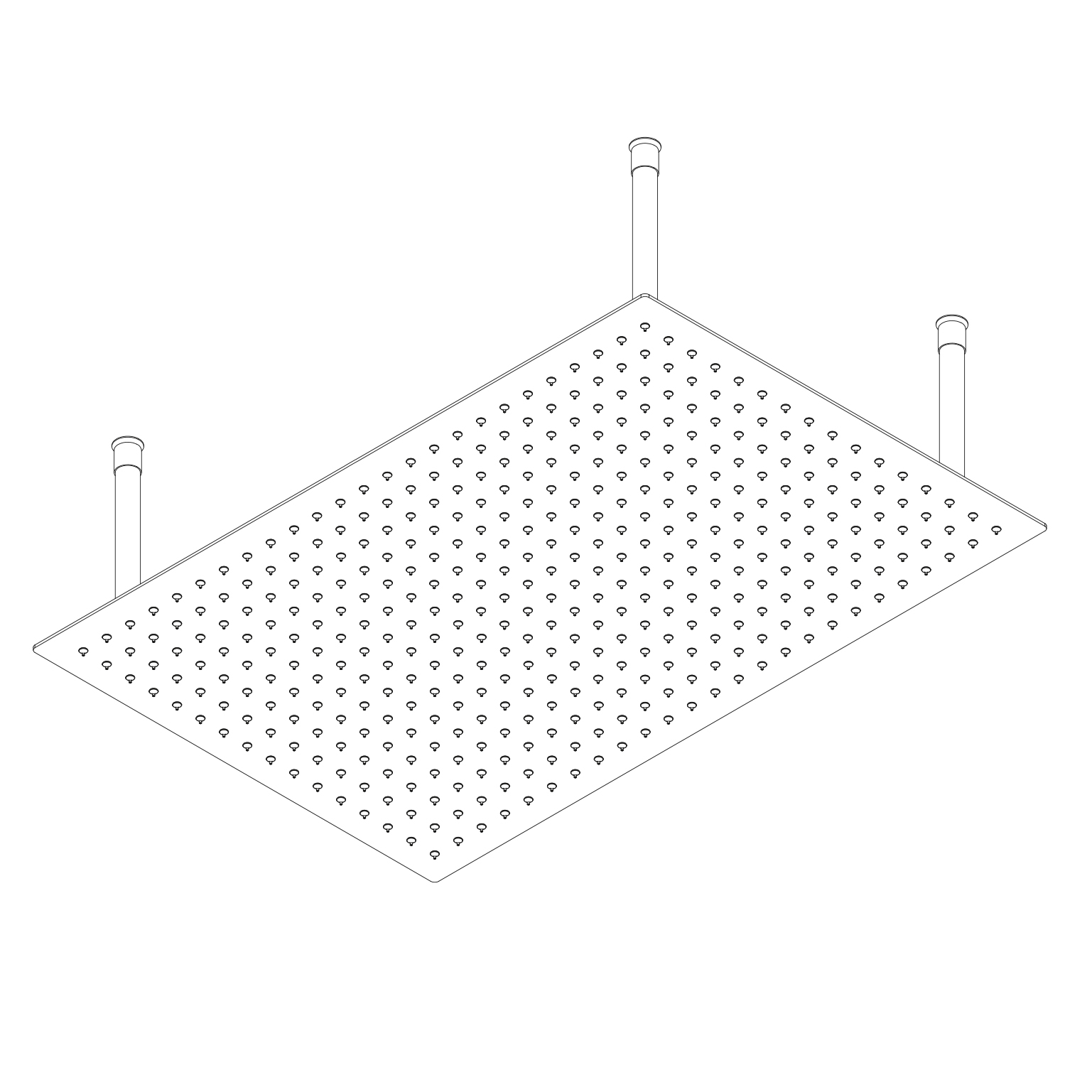

Shower Head Installation Instructions

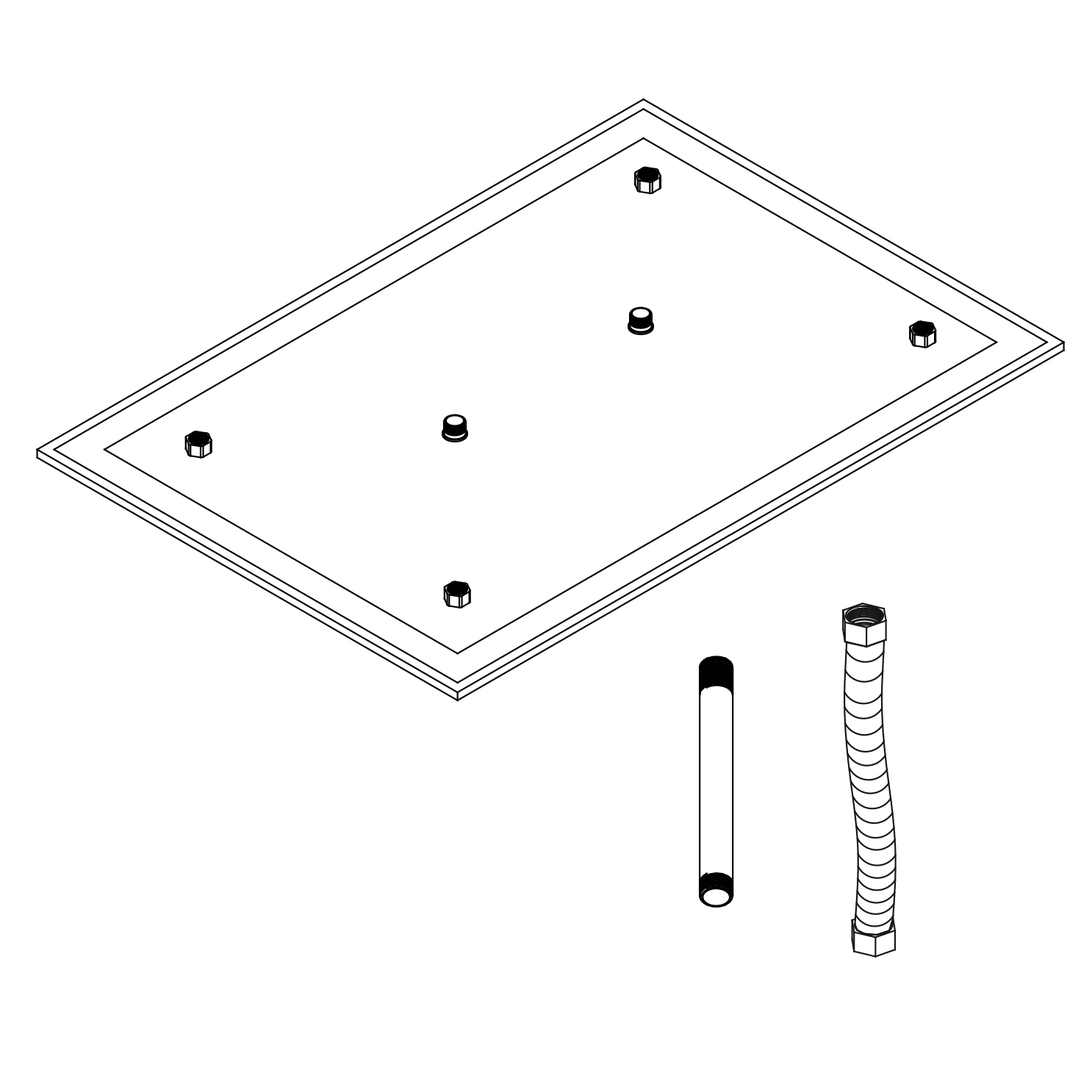

Shower Head Installation Instructions		Shower Parts

Shower Head Installation Instructions
Step 1:	shower	Step 2:

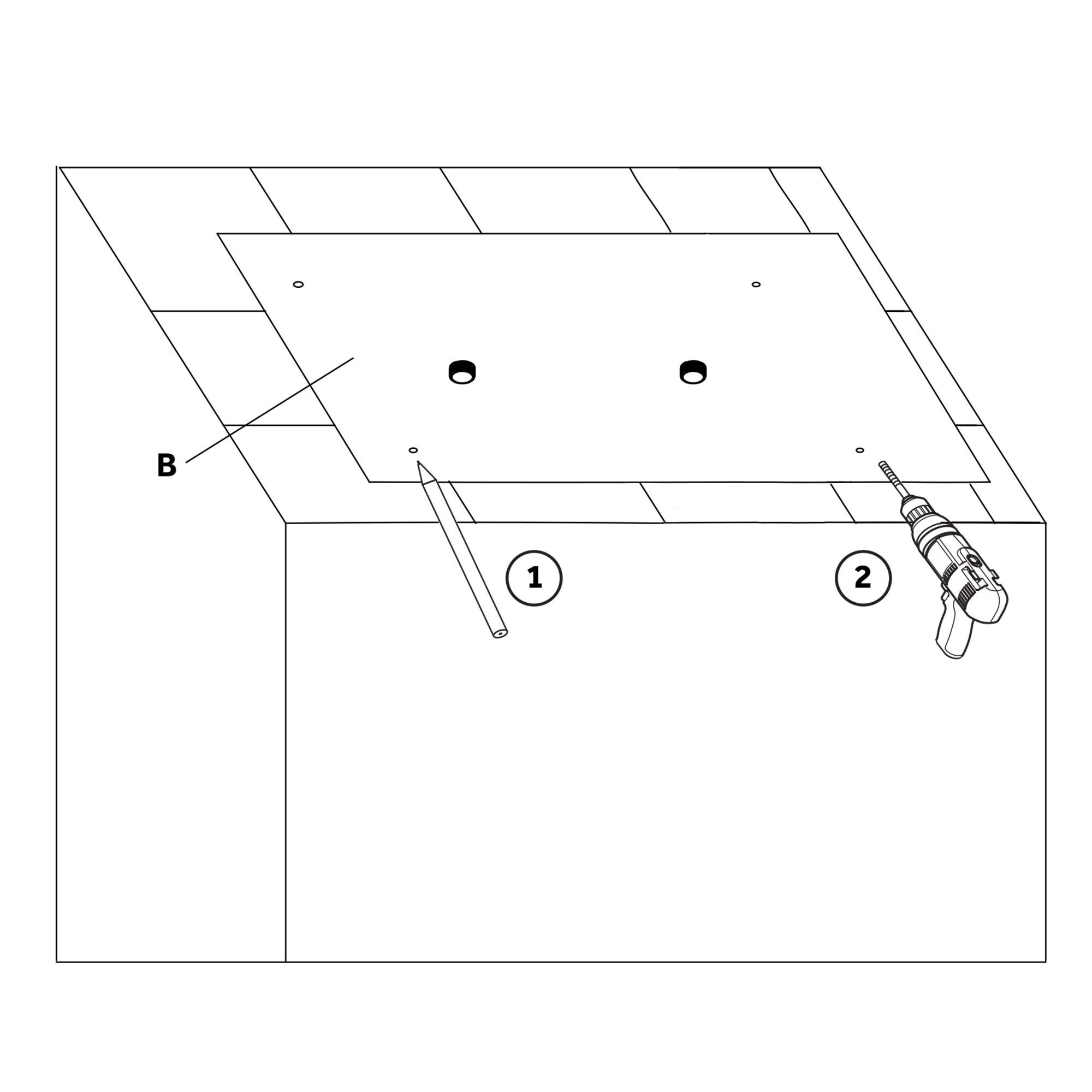

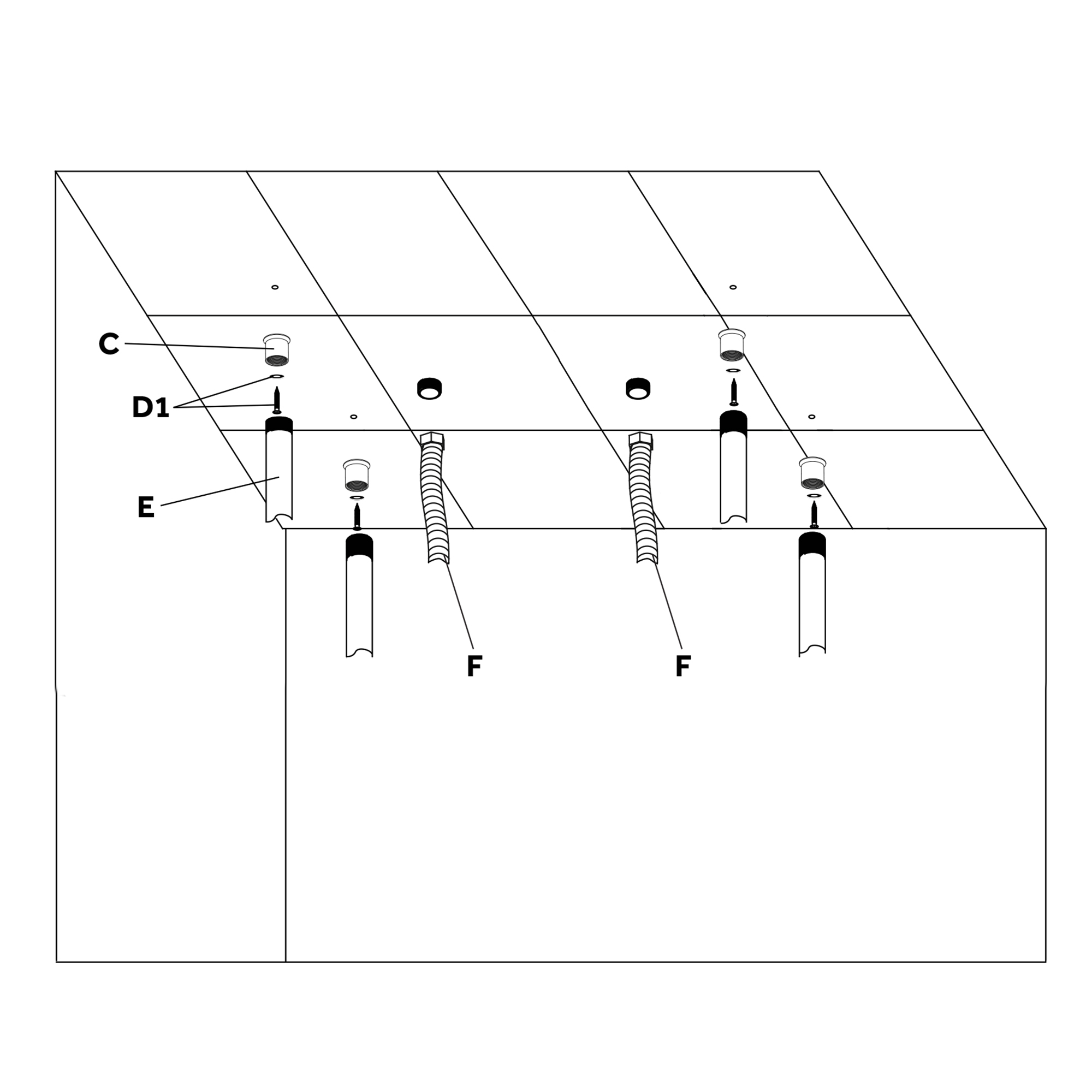

According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.		Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.
Shower Head Installation Instructions
Step 3:		Step 4:

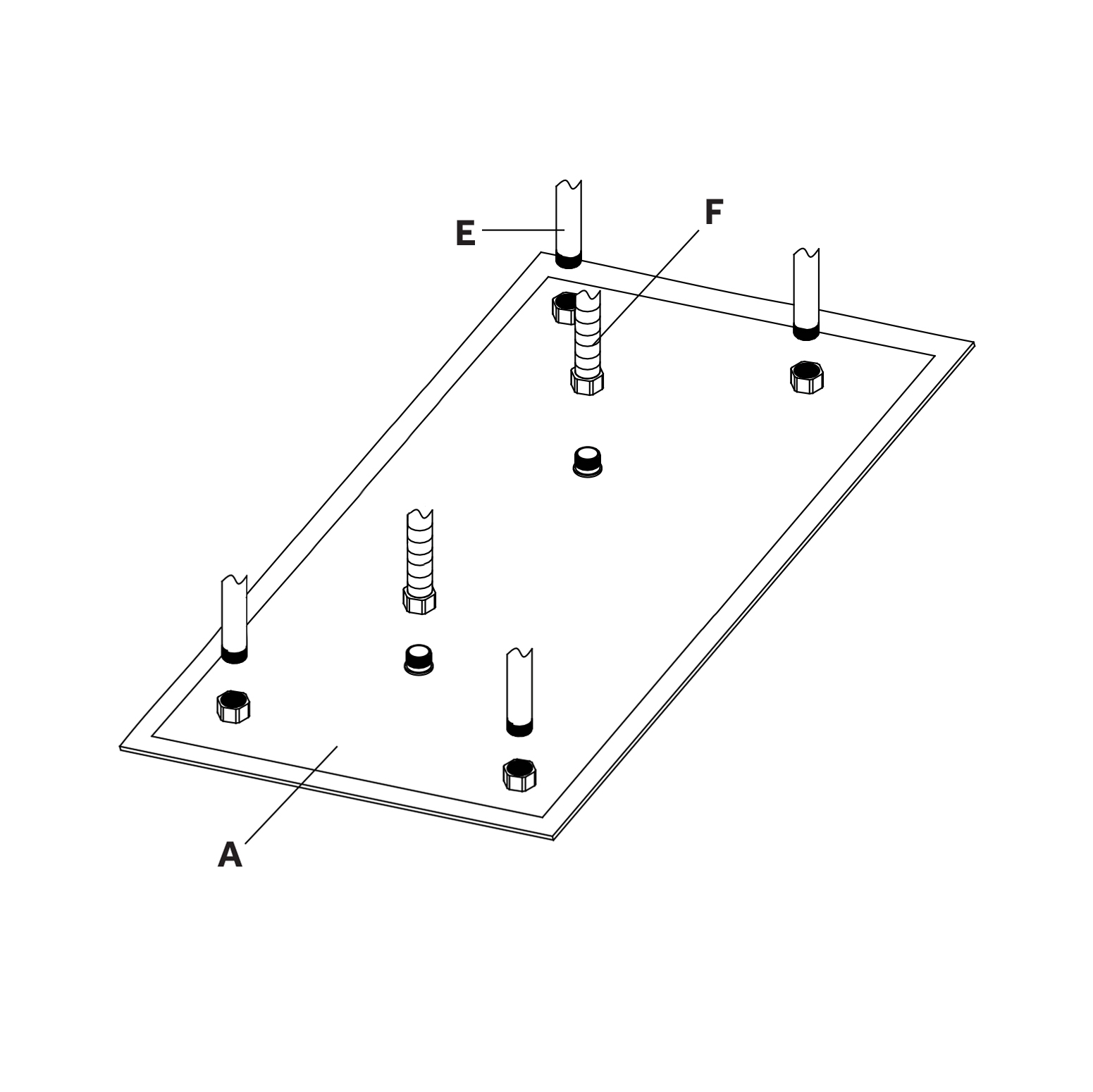

Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.
Shower Head Installation Instructions
Step 5:
