How to Install BathSelect Marseille Brushed Gold Wall Mount Massage Thermostatic Shower System Set | BST10257

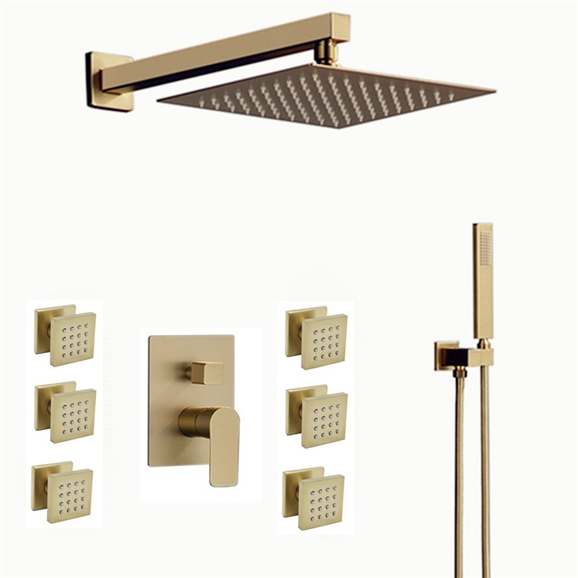

Enhance your modern bathroom with BathSelect Marseille Brushed Gold Wall Mounted Massage Thermostatic Shower System Set which comes complete with the Square rotatable shower head, handheld shower spray, thermostatic mixer, and 6 adjustable body jets everything in a beautiful brushed gold finish. Its rainfall effect experience makes showering experience more soothing and relaxing. Made from high-quality brass, Brushed Gold finish to create a bright, highly reflective, beautiful metallic look. Effortlessly provides superior water pressure even in low pressure. This is one of the simplest products we offer, yet indispensable when it comes to installing a brand new shower. It comes complete with accessories and installation instructions.


Features:Visit Product Page
  • Brand Name: BathSelect
  • Model Number: BST10257
  • Function Type: Bathroom Thermostatic Shower Massage Set
  • Style: Contemporary
  • Shower Head Feature: Rotatable Rainfall Shower Head
  • Installation Type: Wall Mount
  • Surface finish: Brushed Gold
  • Material: Brass
  • Number of Handles: Triple Handle
  • Connection: G1/2 Standard
  • Concealed Mixer valve: Thermostatic
  • Hose Length: 1.5m
  • Hose Material: Stainless Steel
  • Flow Rate: 2.5 GPM
  • showerBathSelect Marseille Brushed Gold Wall Mount Massage Thermostatic Shower System Set

    Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Shower Head Installation Instructions


    Step 1: shower installation Step 2:
    Step 3: Step 4:
    Step 5: Step 6:
    Step 7:


    1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon.

    2. Insert the new arm into the fitting in the ceiling and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with adjustable wrench.

    3. Thread the new shower head onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish.

    4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary.

    5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.
