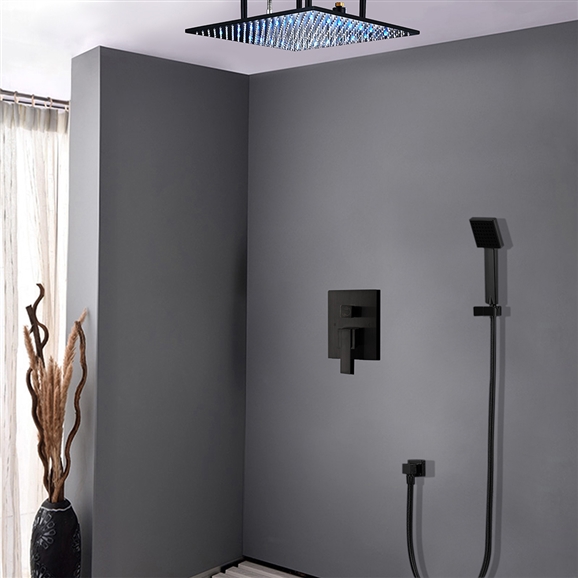

How to Install Luna Modern Design Oil Rubbed Bronze Square Color Changing LED Rain Shower Set | BST-546-2ORB


The Oil-rubbed Bronze LED shower system will turn your shower into one that looks exceptional. If you already have oil rubbed bronze in your bath fixtures, it makes perfect sense to invest in oil rubbed bronze shower head. Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. When in use you can even turn your bathroom lights off since this showerhead will illuminate your shower. All this with no batteries, everything is self-powered by a built-in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. The Oil-Rubbed Bronze Rain Shower Set comes complete ready to install (you only need 2 water entries)


Features:Visit Product Page
  • Brand Name: BathSelect
  • Model Number: BST-546-2ORB
  • Showerhead Sizes: 20x20", 24"x24", 31"x16", 31"x31", 40"x40"
  • Material: Stainless Steel
  • Finish: Dark Oil Rubbed Bronze
  • Showerhead Style: Contemporary Rain Shower
  • Mixer: 2 Way Mixer
  • Hand-held Shower: Included
  • Shower Head Mount Method: Ceiling Mount
  • Connection: 1/2" US standard (included)
  • Shower Arm: 4 Ceiling Mount Shower arm included
  • Shower Arm Size: 12"- 17"(cm 29~43)
  • LED light: Powered by Dynamo
  • Led light function: Automatic, dim and brighten when the pressure is adjusted
  • LED Color: Automatically changes according to temperature
  • Anti-scald
  • Showerhead Material: Stainless steel
  • This showerhead has a water flow rate of 2.4GPM (9L/min)
  • showerLuna Modern Design Oil Rubbed Bronze Square Color Changing LED Rain Shower Set

    Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.


  • Shower Head Installation Instructions

    shower

    Step 1:Step 2:
    According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.

    Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.


    Step 3:Step 4:
    Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.

    2 water inlets so the water disperses equally throughout the showerhead.




    Step 5:













    Additional Information:

    Specification:

    - The LED lights are powered by water flow and will be activated once the water is turned on.
    - Constructed from stainless steel for durability and reliability.
    - Finished in high quality, corrosion-resistant.
    - Not suitable for low pressure. The minimum required water pressure is 0.1 MPa (1 bar).
    - Flow rate 2.4 GPM (9 LPM).
    - The LED light will change its color by detecting water temperature:
    - 0-30 °C (32-86 °F): Blue LED
    - 30-40 °C (86-104 °F): Green LED
    - 40-50 °C (104-122 °F): Red LED
    - 50-100 °C (122-212 °F): Flashing Red LED


    Hand Held Shower Installation Instructions
