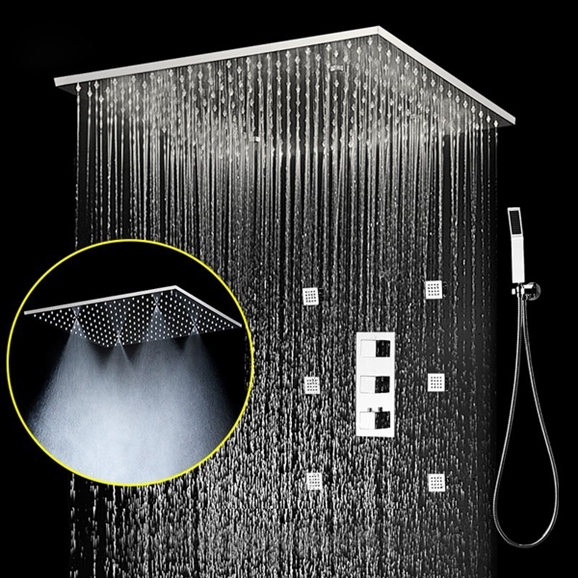

BathSelect 20" Large Shower Head With 4 Way Mixer, Body Massages Jets & Hand Shower
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

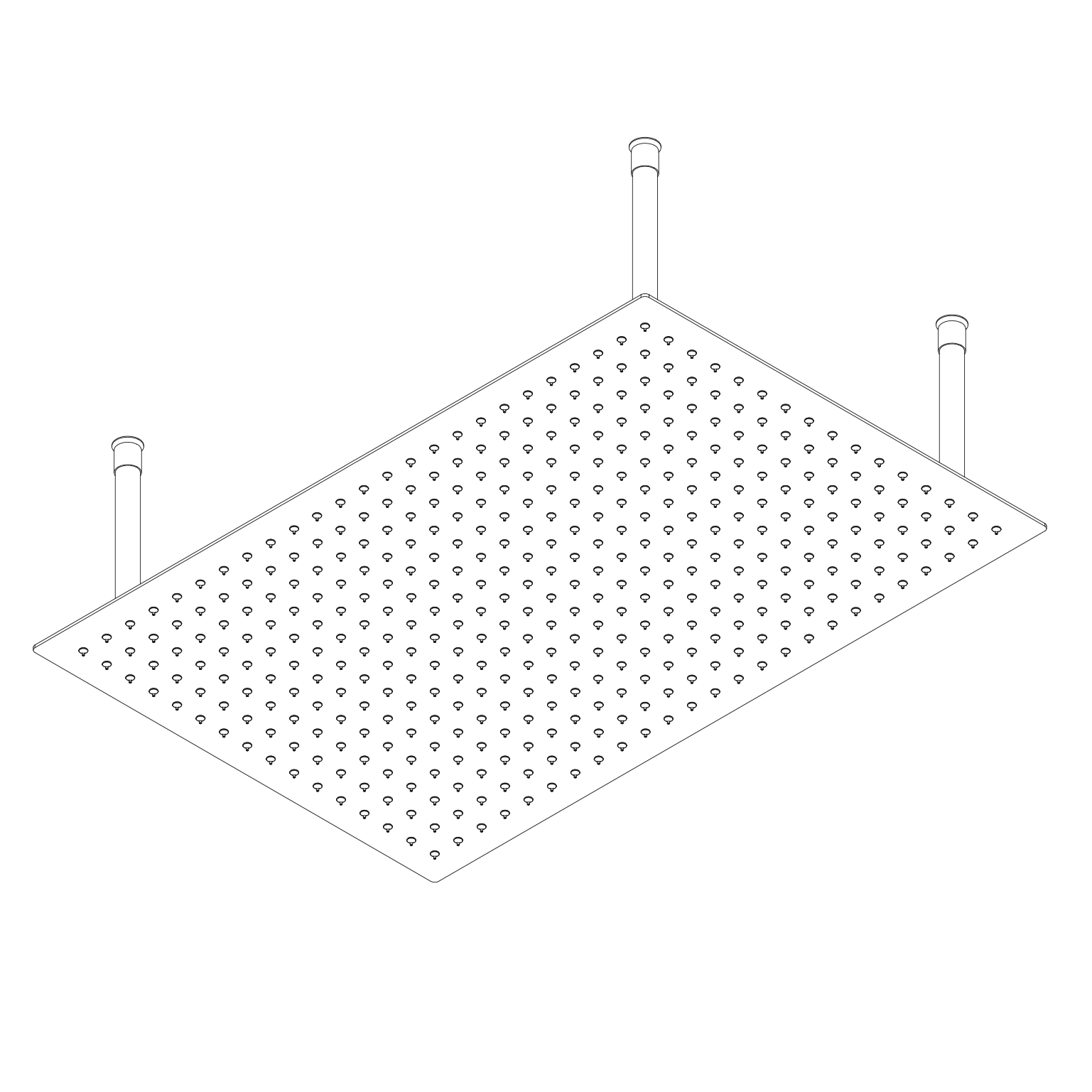

Shower Head Installation Instructions
shower
Various sizes available
Step 1:
Step 2:

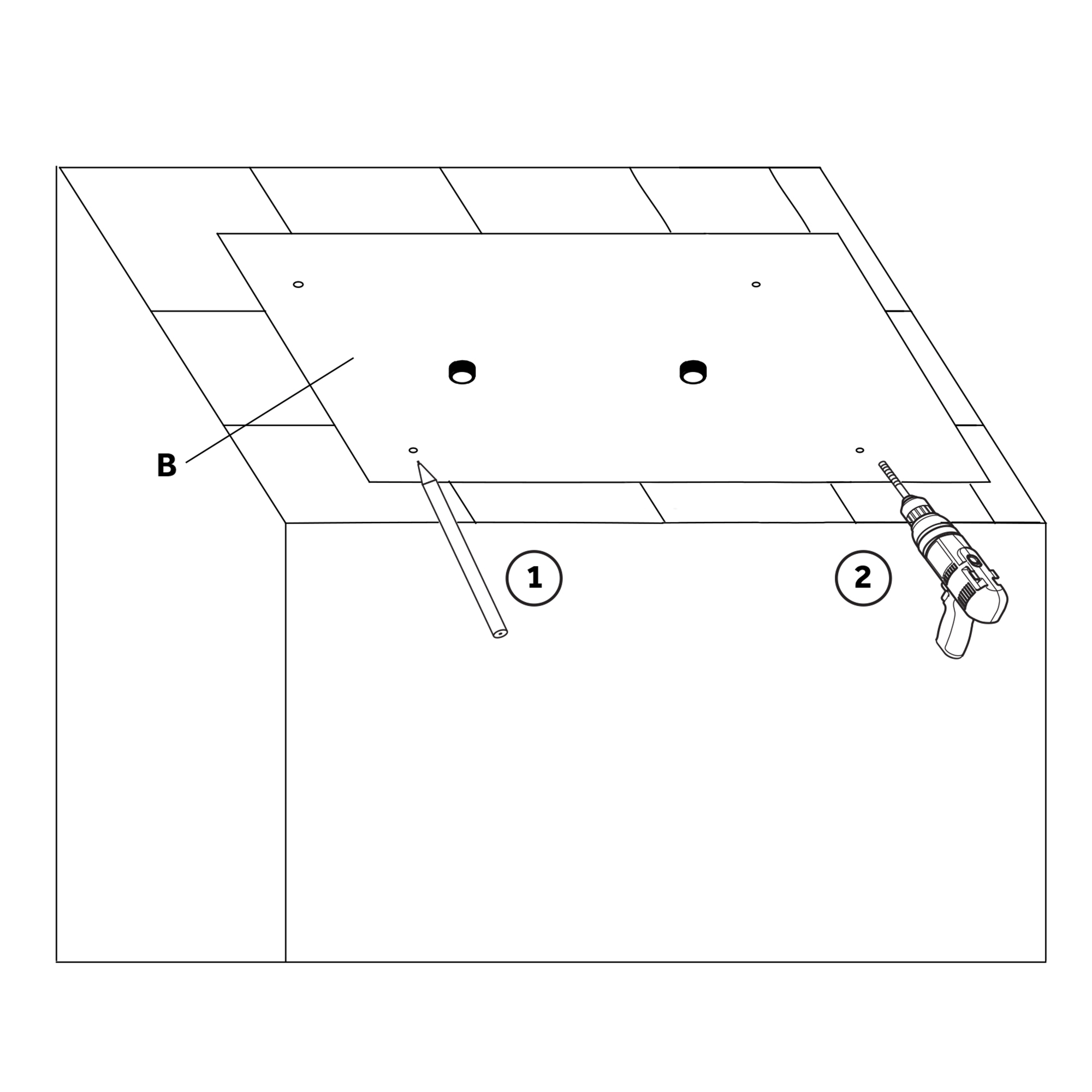

According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.

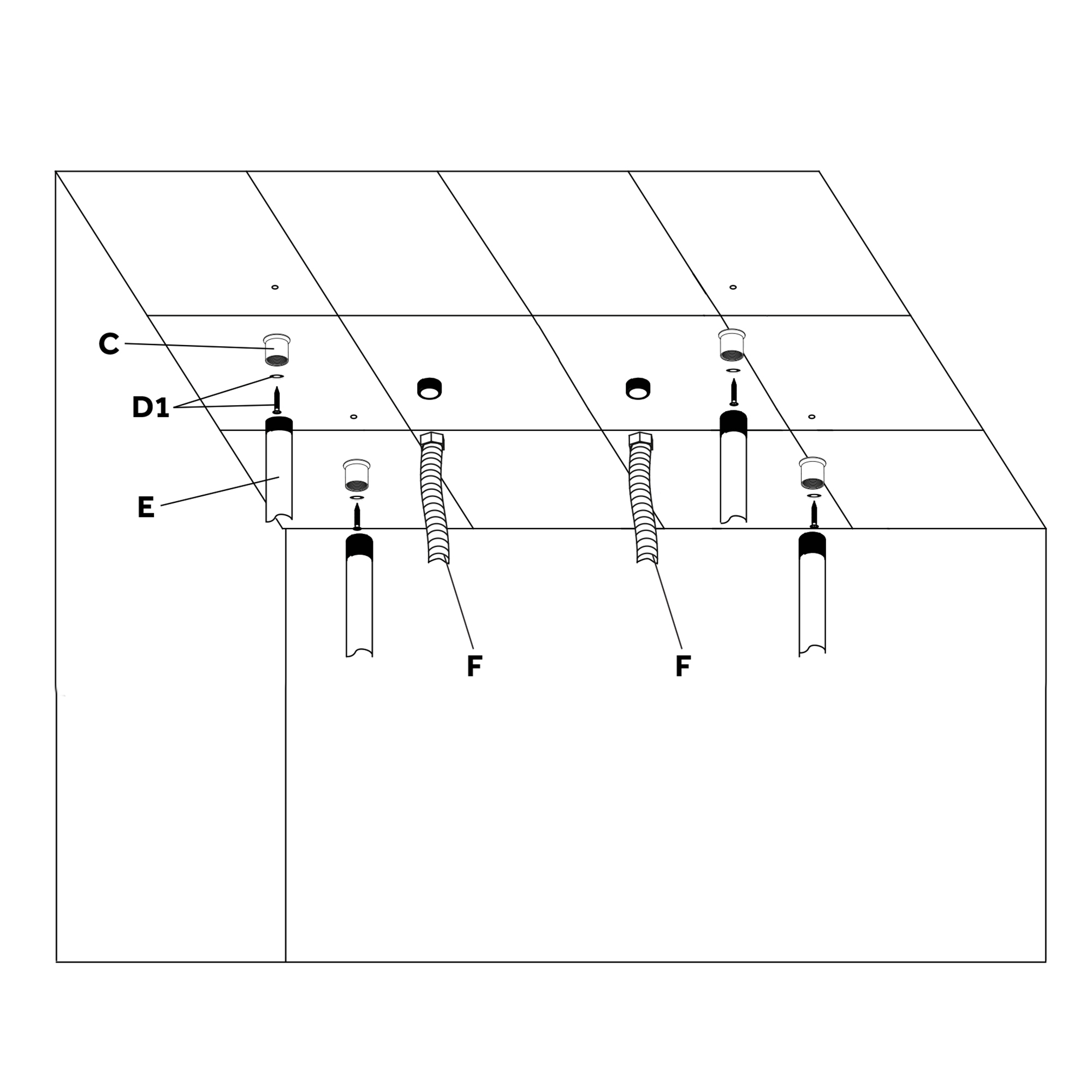

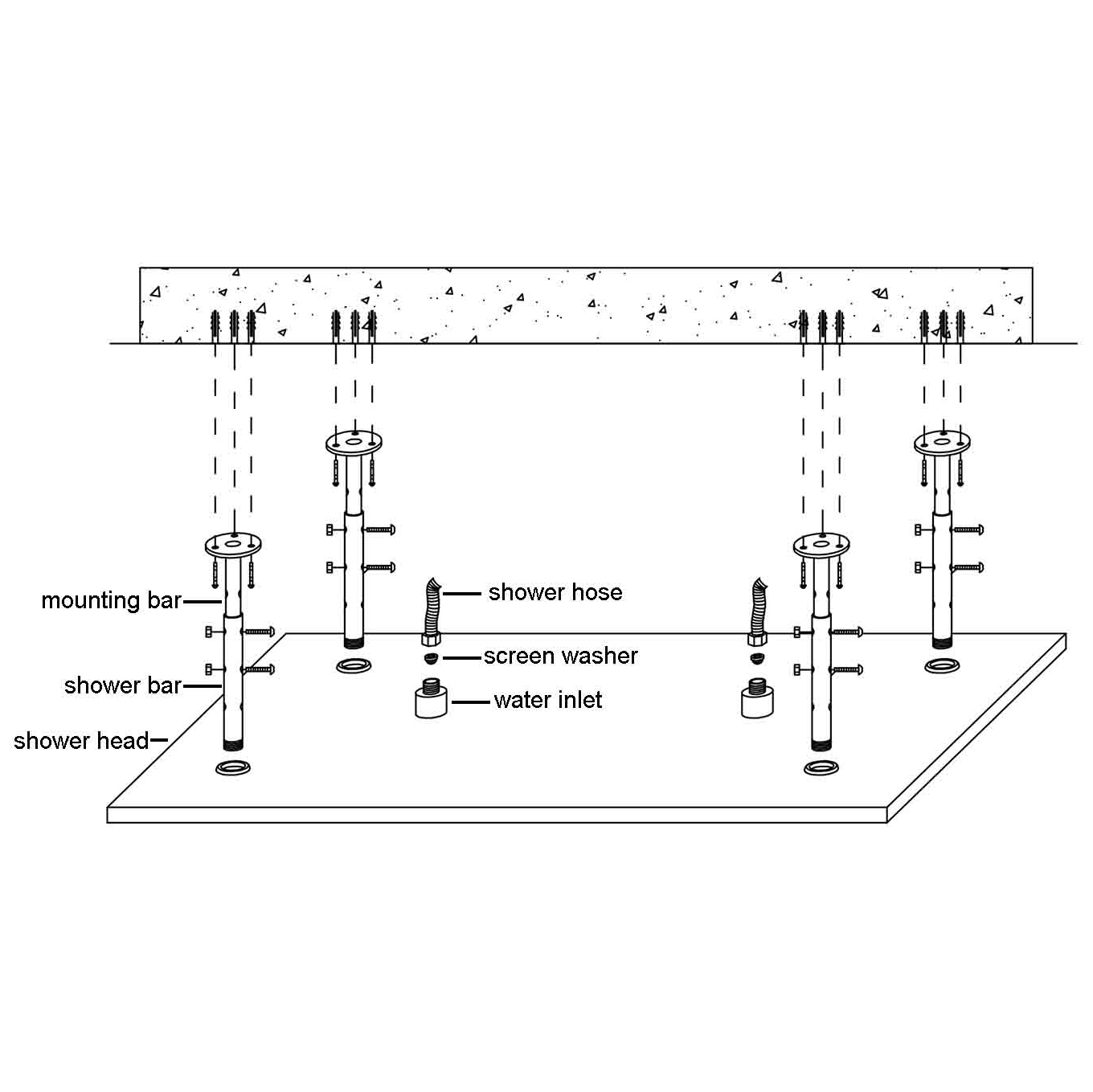

Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.
Step 3:
Step 4:

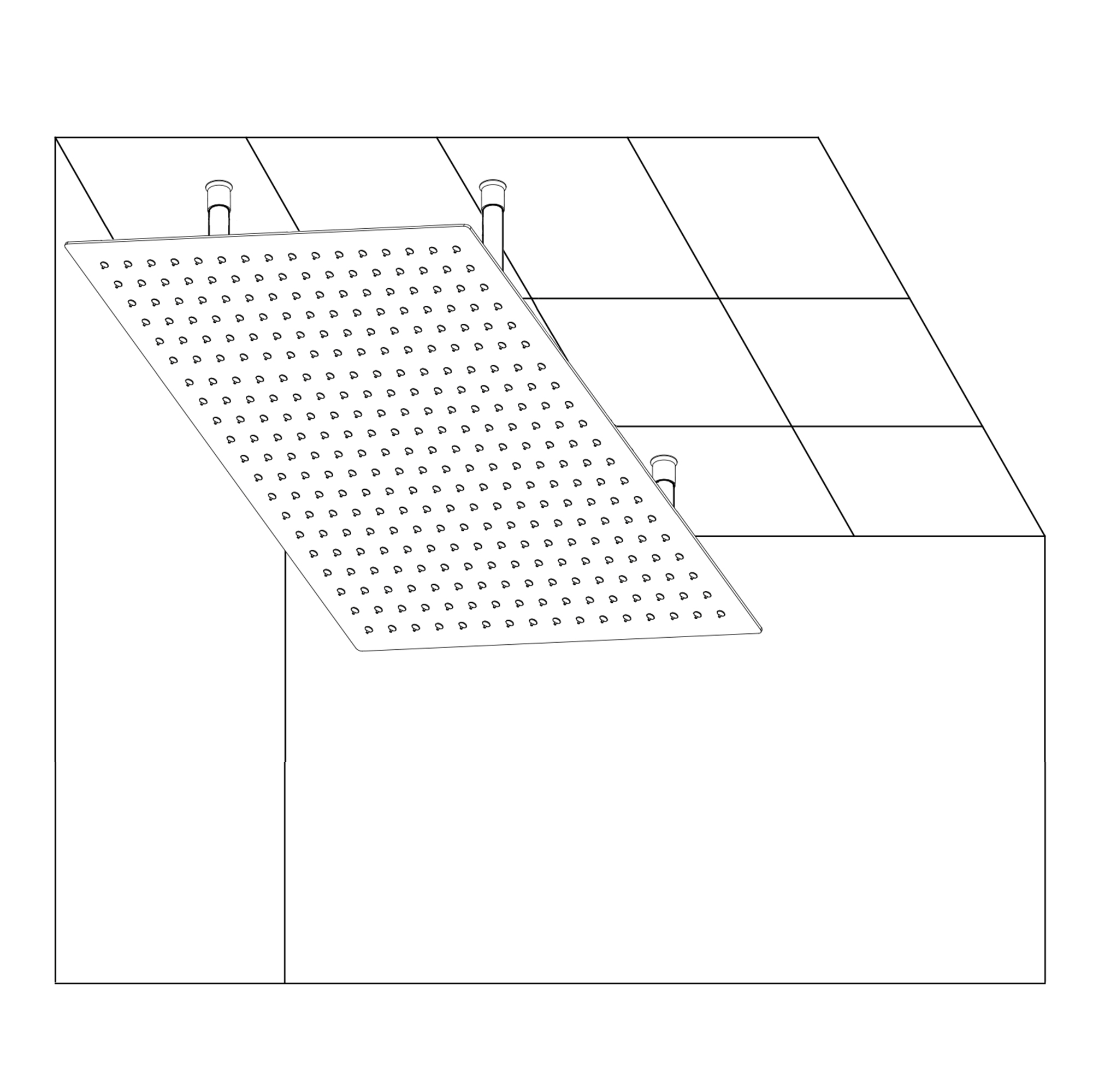

Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.
